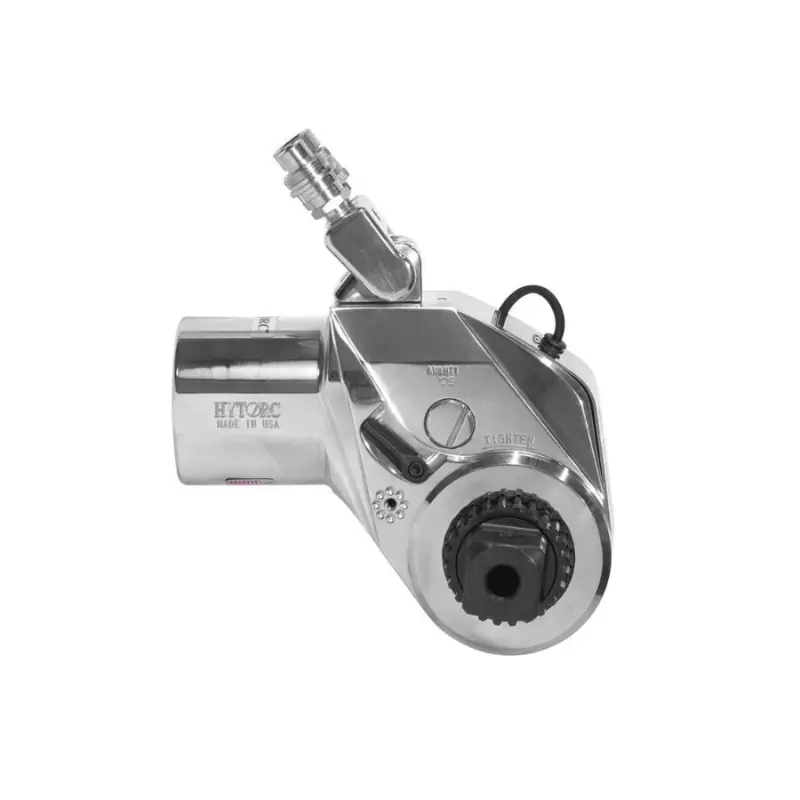

AVANTI-20 2-1/2" Sq Dr Torque Wrench, 17890 Ft-Lbs

HYTORC AVANTI-20 is a square drive hydraulic torque wrench from the AVANTI series, engineered for precise high-torque bolting in demanding industrial environments like construction, maintenance, and petrochemical operations. This 2-1/2" square drive model provides up to 17,890 ft-lbs of torque with ±3% accuracy, powered by a hydraulic pump system up to 10,000 PSI for reliable efficiency. Featuring counterforce taken directly from the drive axle to reduce lateral loads, a 360° x 180° multi-direction hose swivel, and compatibility with various reaction arms and HYTORC accessories, it's built for enhanced durability, accuracy, and versatility in heavy-duty applications.

Key Performance Specifications

• Torque Range: 2,758–17,890 ft-lbs (3,740–24,241 Nm)
• Accuracy: ±3%
• Drive Size: 2-1/2" square
• Max Operating Pressure: 10,000 PSI (700 bar)

Physical and Environmental Specifications

• Weight: 47.8 lbs (21.7 kg)
• Dimensions: Height 10.2 in (260 mm); Length 10.9 in (278 mm); Width 5.1 in (129 mm); Radius 2.6 in (66 mm)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Key Features

• Drive Axle Counterforce: Reduces lateral load and stress on the wrench for improved torque accuracy and extended lifespan
• Multi-Direction Hose Swivel: 360° x 180° swiveling connector for flexible positioning and easy access in awkward angles
• Versatile Reaction Options: Compatible with square drive type arms, 360° x 360° rotatable arms, U-shaped arms, track pad fixtures, and welding adapters
• Recoil-Preventing Latch: Built-in counterforce latch ensures stable, safe operation during high-torque applications
• Clear Angle Reading: Provides precise turn-of-the-nut measurements for advanced bolting techniques
• Compatible Accessories: Works with HYTORC Washer, J-Washer, Nut Drivers, sockets, and extensions for hands-free, reaction-free options
• Corrosion-Resistant Construction: High-strength materials for durability in harsh conditions, including subsea environments
• Low Vibration: Minimizes operator fatigue and hand-arm vibration syndrome (HAVS) risk
• Ergonomic Design: Includes removable support handle and carrying case for portability and ease of use
• Data Management: Pressure-to-torque conversion charts for precise control; integrable with digital gauges
• Applications: Ideal for heavy-duty flanges, pipelines, and large machinery; suitable for explosive environments with ATEX options
