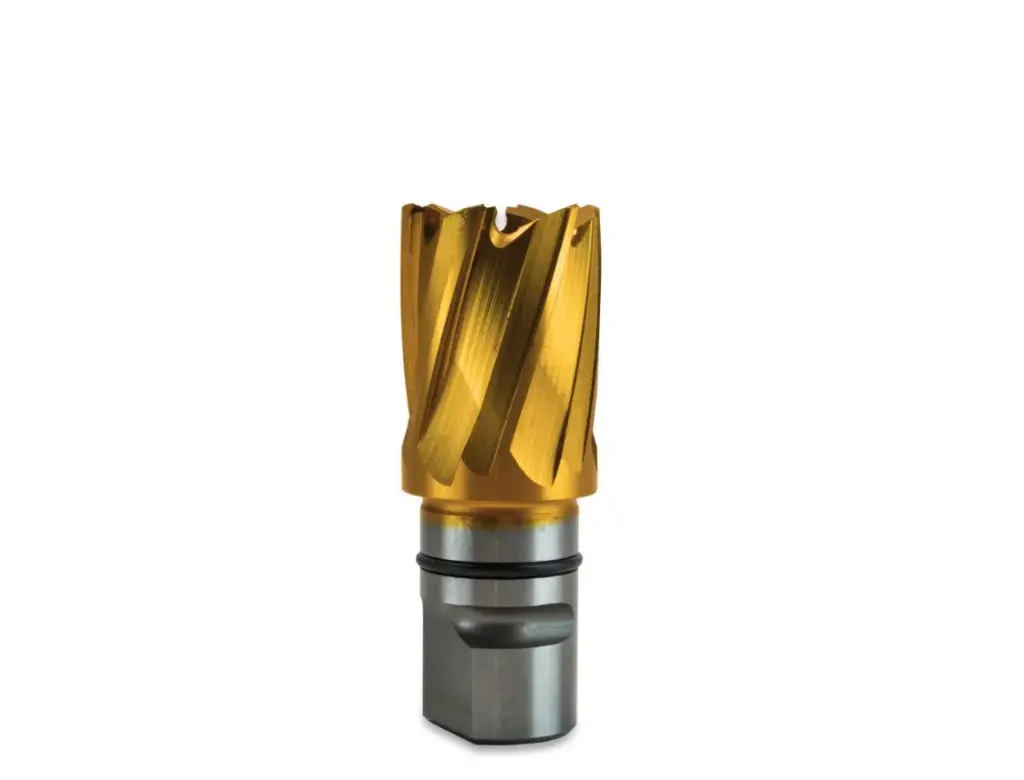

CY140L 14mm Broach Cutters, Tin Coated, For Rail Drilling Machines

Cembre CY140L 14mm Broach Cutters, Tin Coated, are high-performance, long-range cutting tools designed for use with Cembre’s rail drilling machines, such as the LD-41P, LD-16B-RP, or LD-1P ECO. Specifically engineered for railway applications, these broach cutters are optimized for drilling precise, clean holes in steel rails, particularly VIGNOLE (flat-bottom) rails like the 60E1 (UIC60), offering enhanced durability and efficiency.

Key Features

• 14mm Diameter: Ideal for drilling precise 14mm holes in rail webs, suitable for electrical contact installations, signal track circuits, or other rail fastening systems.
• Titanium Nitride (TiN) Coating: Enhances hardness and reduces friction, improving cut surface finish, corrosion resistance, and extending tool life under high-pressure conditions.
• Long-Range Design: The "L" designation indicates a longer cutting depth, typically suitable for thicker rails or deeper holes, providing versatility for various rail profiles.
• Quick Push/Turn Shank: Ensures fast, secure attachment to Cembre rail drilling machines, streamlining operation and reducing setup time.
• Optimized Cutting Geometry: Delivers clean, burr-free holes with faster drilling times and superior surface finish compared to previous A and A-L type cutters.
• High Performance: Capable of drilling steel rail quality grades 700-900-1100 (UIC 860.0), producing more holes per cutter with improved efficiency and precision.
• Compatibility: Specifically designed for Cembre rail drilling machines, ensuring seamless integration and reliable performance in single-operator setups.

Technical Specifications

• Diameter: 14 mm
• Depth: Likely 50 mm or greater, based on long-range (CYL) series characteristics
• Coating: Titanium Nitride (TiN)
• Material: High-speed steel (HSS) or similar, optimized for rail steel
• Shank Type: Quick push/turn shank
• Compatibility: Cembre rail drilling machines (e.g., LD-41P, LD-16B-RP, LD-1P ECO)
• Rail Types: Suitable for steel rails grades 700-900-1100 (UIC 860.0)

Applications

• Drilling 14mm holes in railway rails for electrical contact installations, grounding, or continuity bonding
• Supporting signal track circuits and other railway infrastructure connections
• Maintenance and installation tasks requiring precise, deep holes in flat-bottom rails up to 50 mm thick
• Use with Cembre’s lightweight, portable rail drills for efficient single-operator tasks
