Assembly & Fastening Systems
Tools, controllers and cordless systems organized by application consequence — so you can match the right fastening solution to the criticality of the joint.
Class A - Critical
High Consequence Applications
Class B - Critical
Moderate Consequence Applications
Class C - Critical
General Assembly Applications
A
Class A - Critical
High Consequences Applications
Transducerized tools and controllers with closed-loop torque/angle control and full traceability, for joints where failure carries the highest risk.

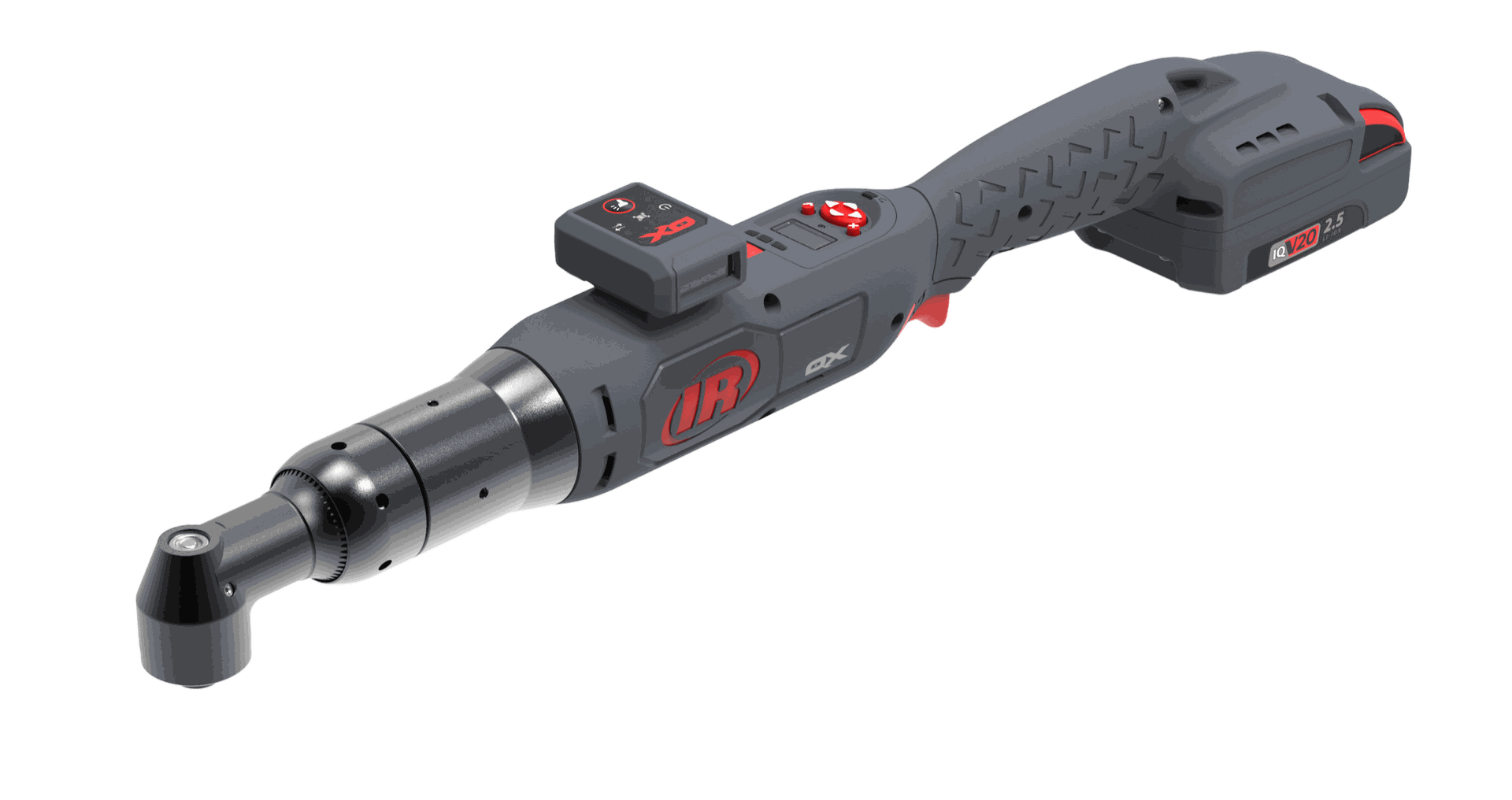

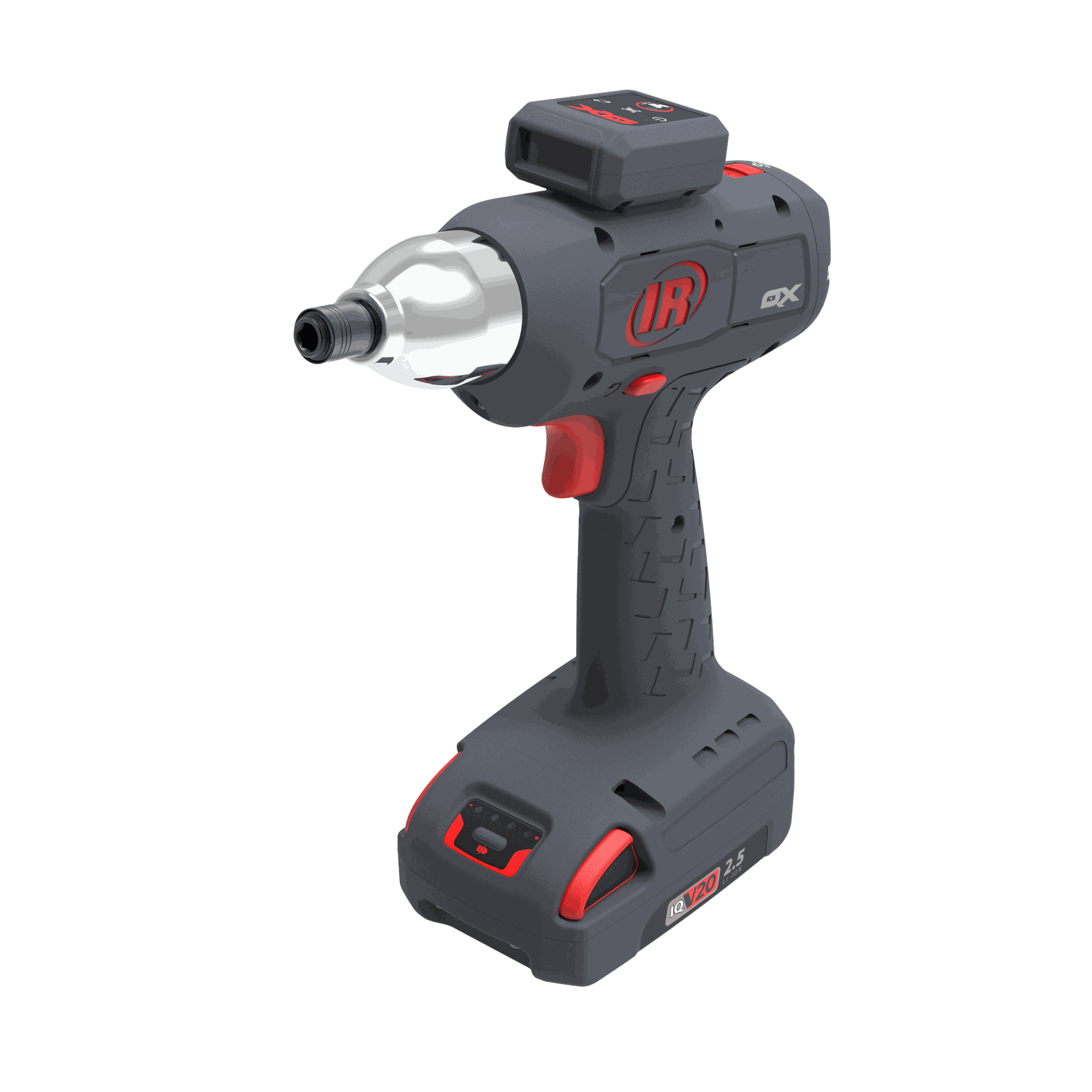

QX Connect Series
[ Battery Tools ]
Torque Range
0.8 - 200 N.m
Closed-loop transducerized
torque, angle and speed control
Up to 32 programmable PSETs per tool
Bluetooth/wireless/USB connectivity

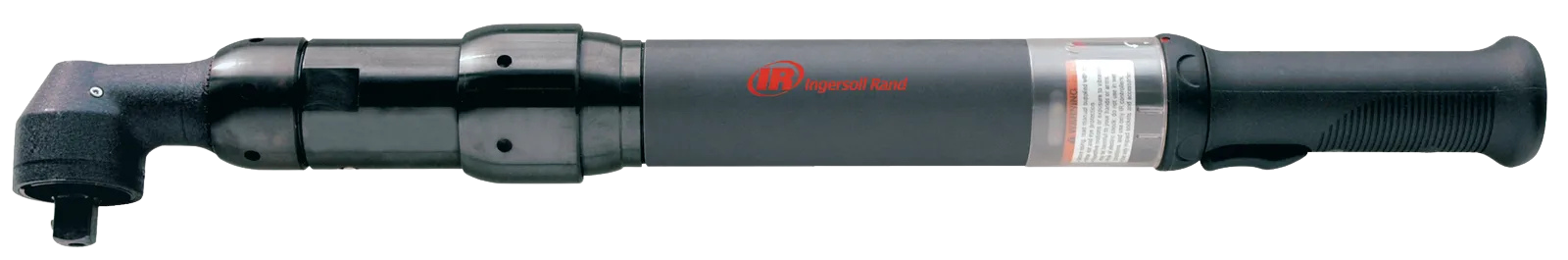

QE Series
[ Electric Tools ]
Torque Range
0.3 - 400 N.m
Pistol, straight, angle and push-to-start configurations
Adjustable speed up to 1,382 rpm
Hex, square and quick-change output options

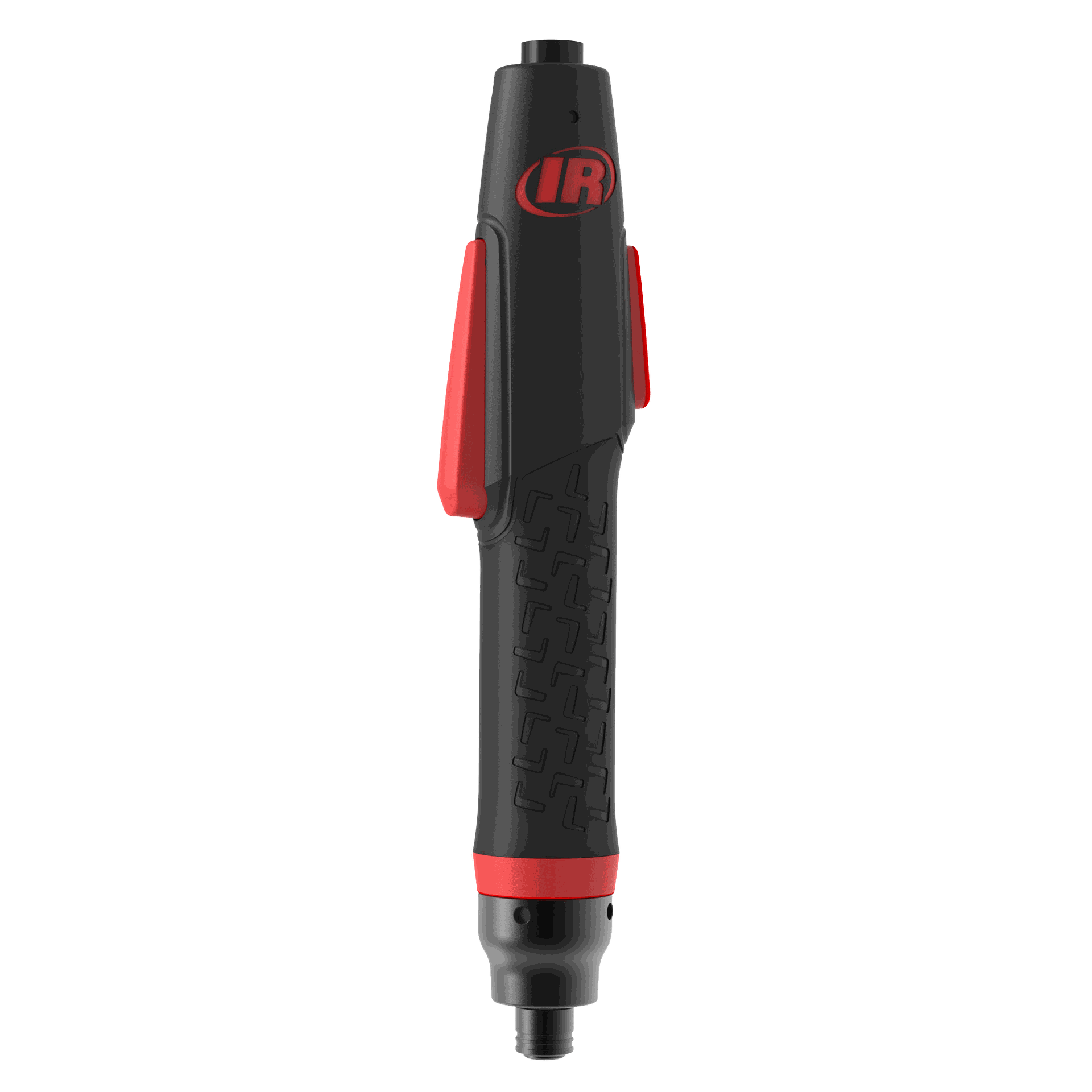

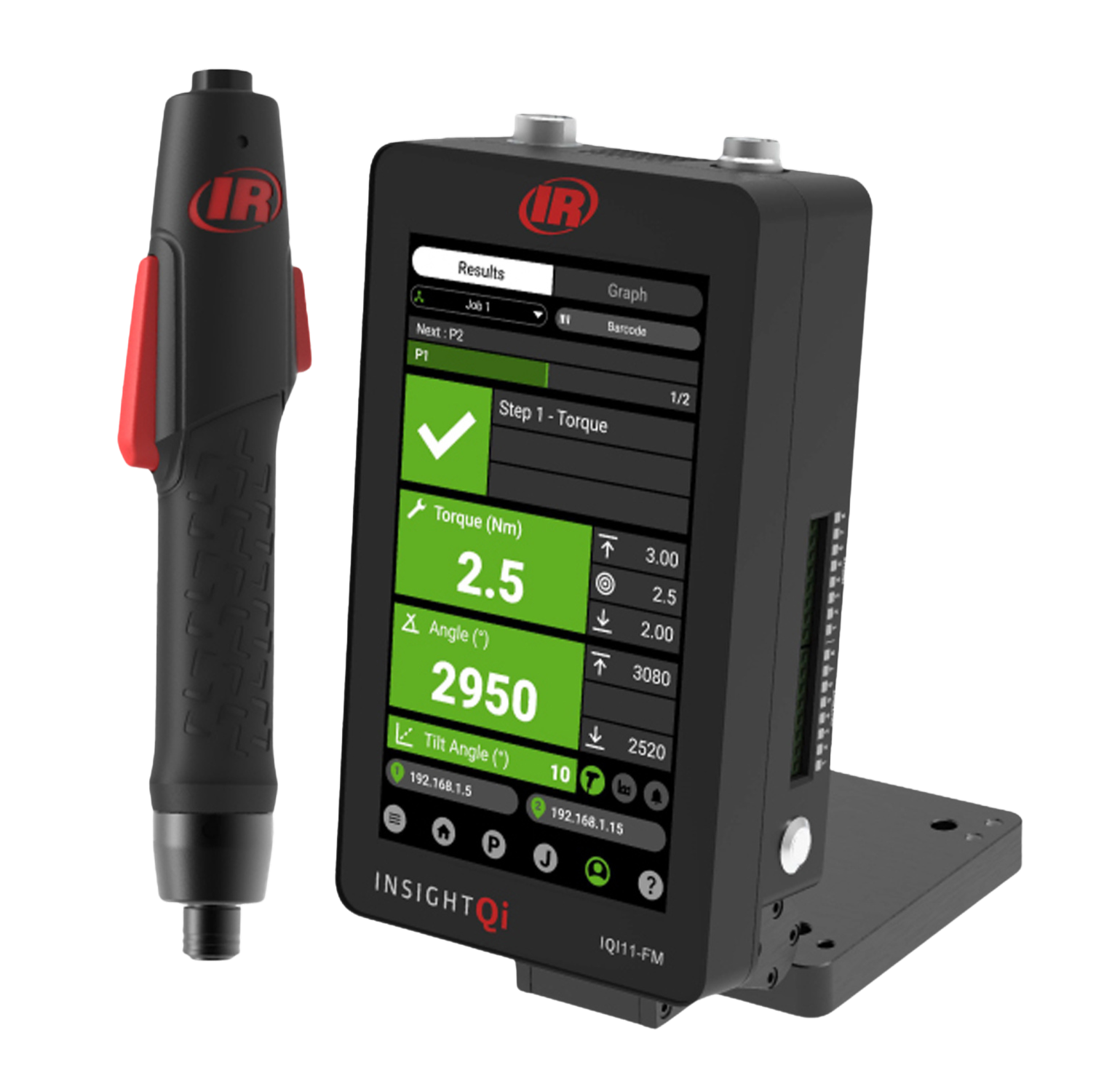

IQi Series
[ Electric Tools ]
Torque Range
0.02 - 15 N.m
±3.5% transducerized accuracy
industry-first tilt angle control
1M+ maintenance-free cycles
MES/Fieldbus-ready for Industry 4.0 integration

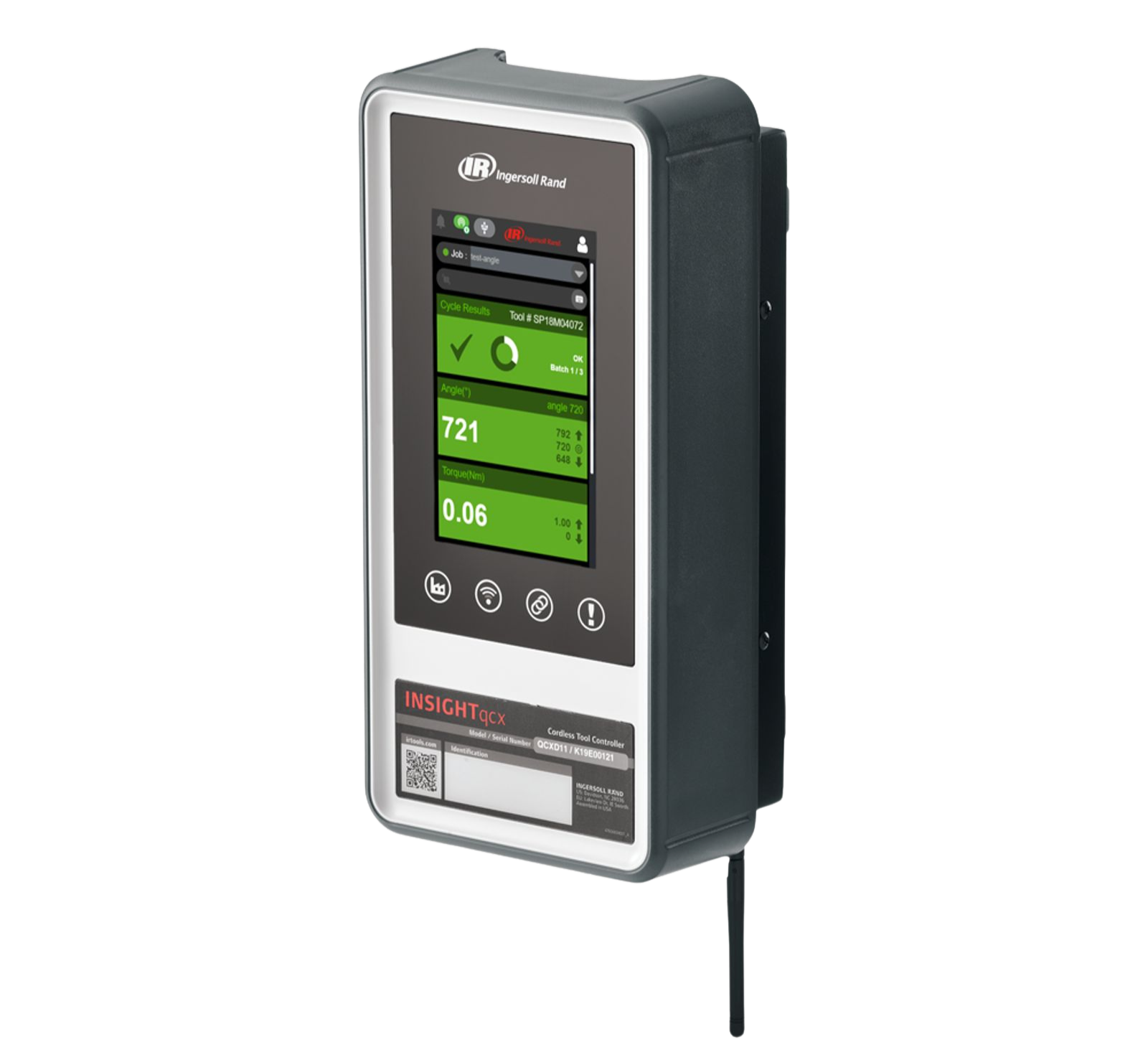

QCXD INSIGHTqcx
[ Controller ]
Platform
Up to 6 Tools / Controller
Wireless pairing with Multi Tool Controller (MTC) option
7″ touch screen; 500,000-result data storage
Ethernet, Fieldbus and digital I/O connectivity

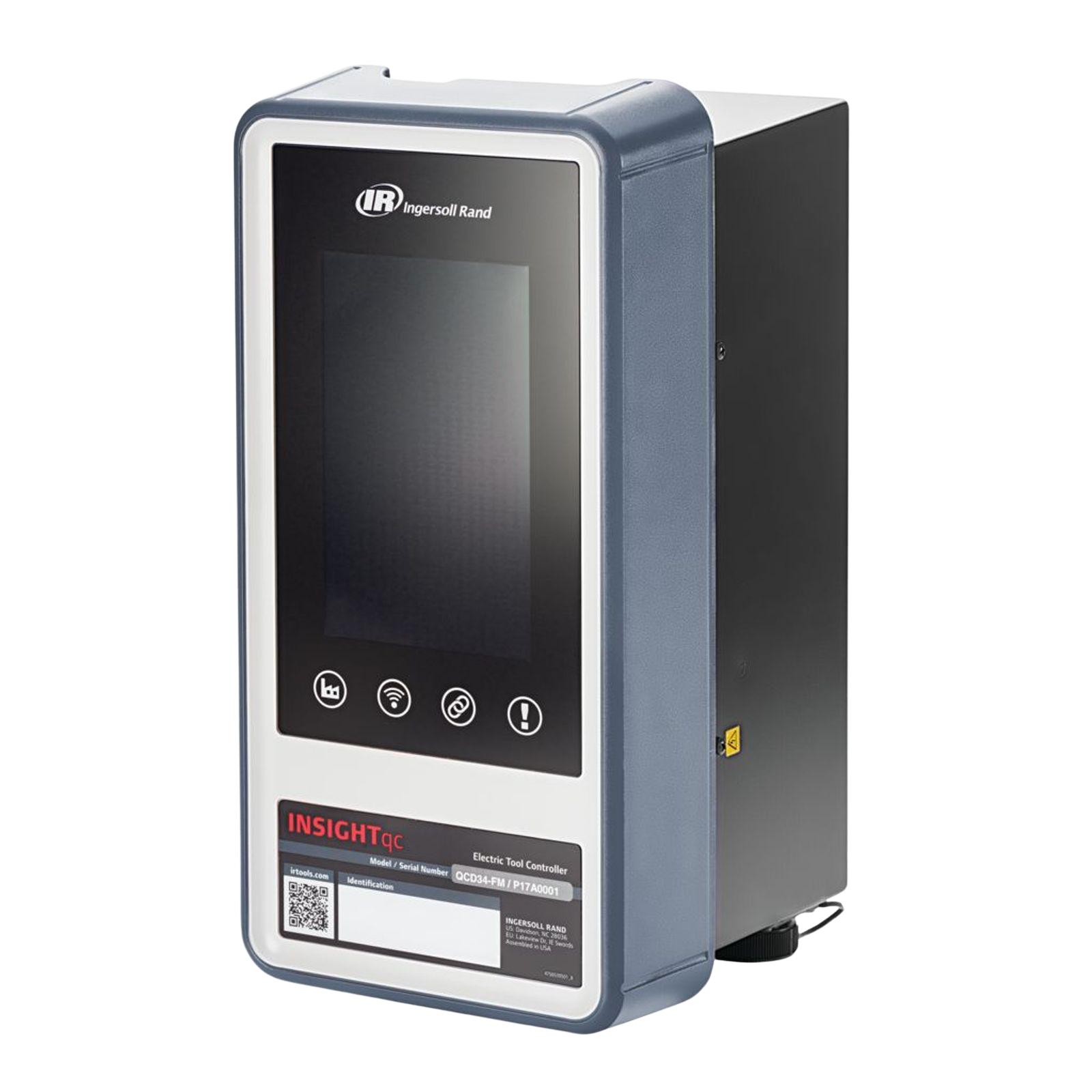

QCD INSIGHTqc
[ Controller ]
Platform
Any Device, Any Browser
Web-based programming
Touch screen with integrated logic and job sequencing
Onboard diagnostics, SPC and configurable alerts
B
Class B - Semi Critical
Moderate Consequences Applications
The same QX Connect platform, configured and deployed for joints with moderate risk tolerance

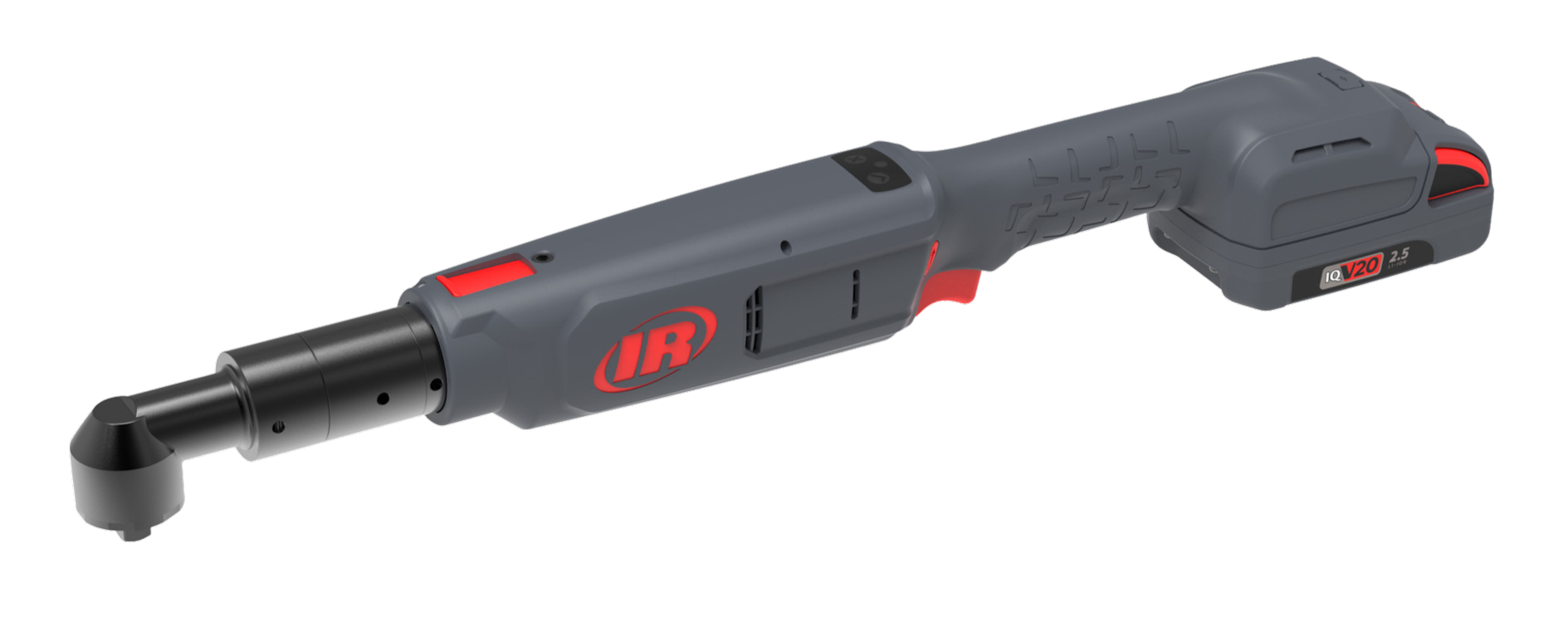

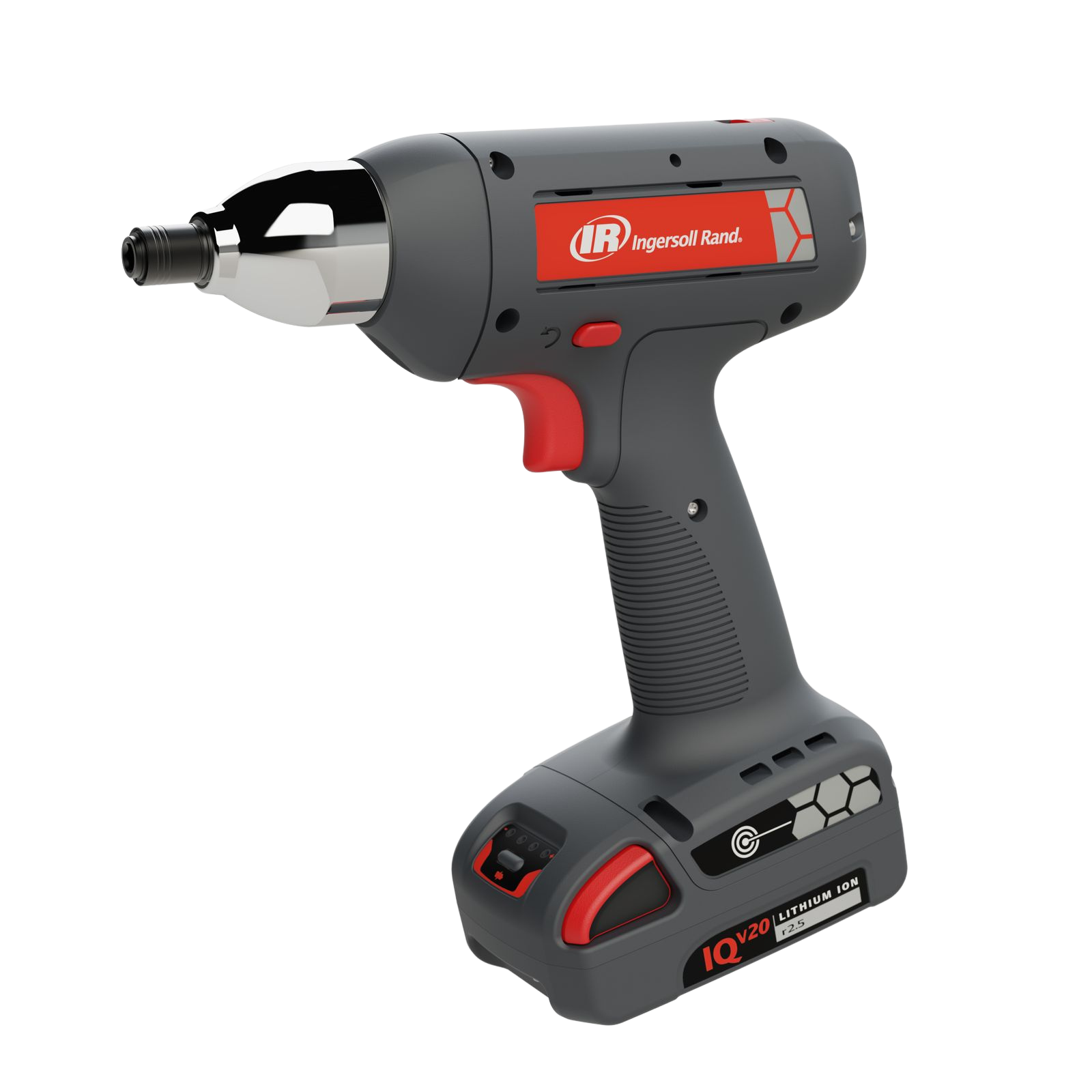

QC Series
[ Battery Tools ]
Torque Range
0.8 - 30 N.m
Proven clutch design delivers Cmk > 1.67 with ±10% accuracy
500K+ cycle durability; brushless DC motor
USB-C programming via INSIGHT Connect app
IQi Series
[ Electric Tools ]
Torque Range
0.02 - 15 N.m
±3.5% transducerized accuracy with industry-first tilt angle control
1M+ maintenance-free cycles
MES/Fieldbus-ready for Industry 4.0 integration
QX Connect Series
[ Battery Tools ]
Torque Range
0.8 - 200 N.m
Closed-loop transducerized torque, angle and speed control
Up to 32 programmable PSETs per tool
Bluetooth/wireless/USB connectivity
C
Class C - Low Critical
General Assembly Applications
Cordless responsive and pulse tools built for throughput and ergonomics on lower-risk joints.

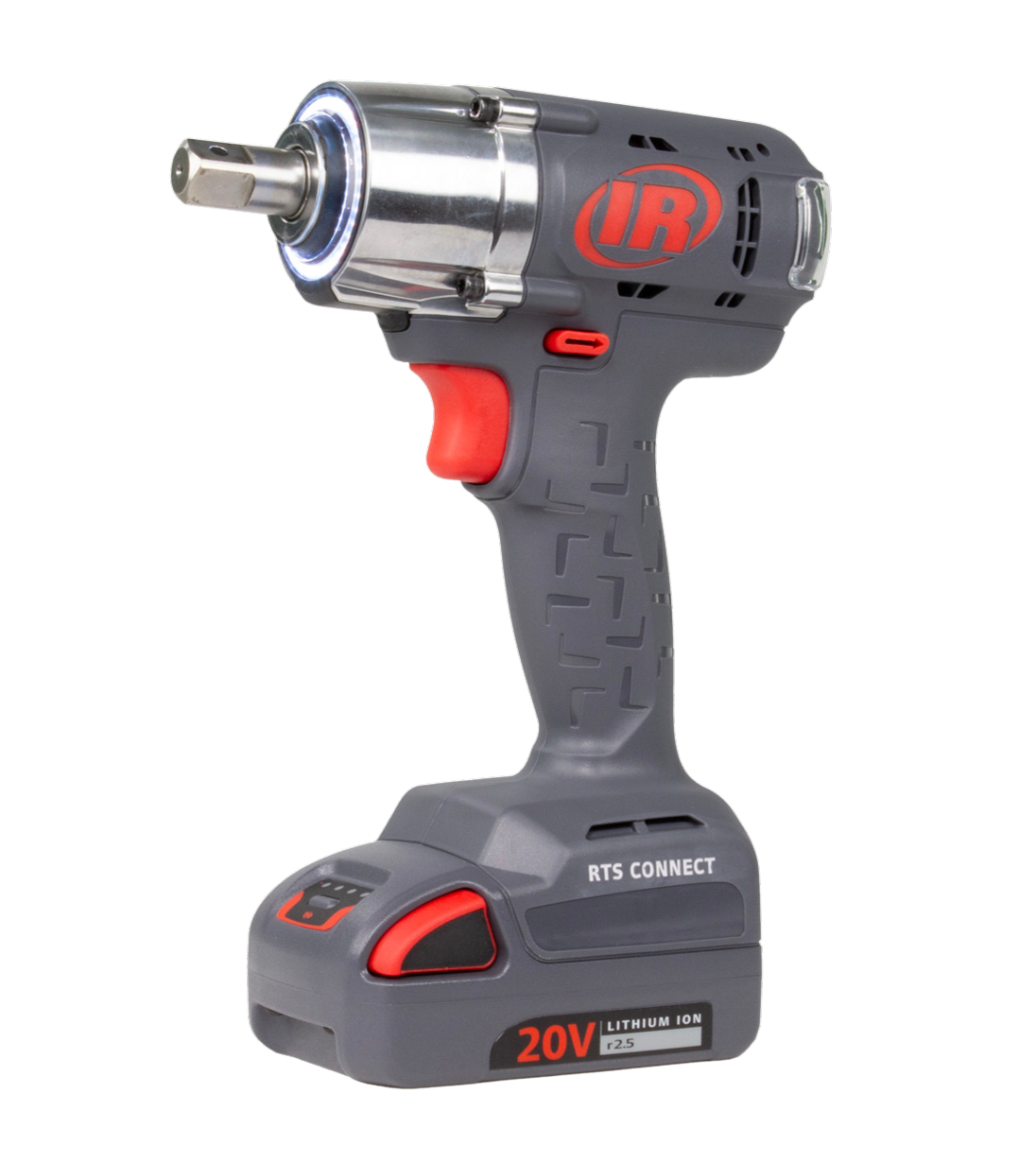

RTS Connect
[ Battery Tools ]
Torque Range
8 - 225 N.m
40 torque levels and 7 flush levels; reactionless ergonomic design
Wireless, Bluetooth and USB-C connectivity to INSIGHTqcx
Up to 16 tools per MTC controller

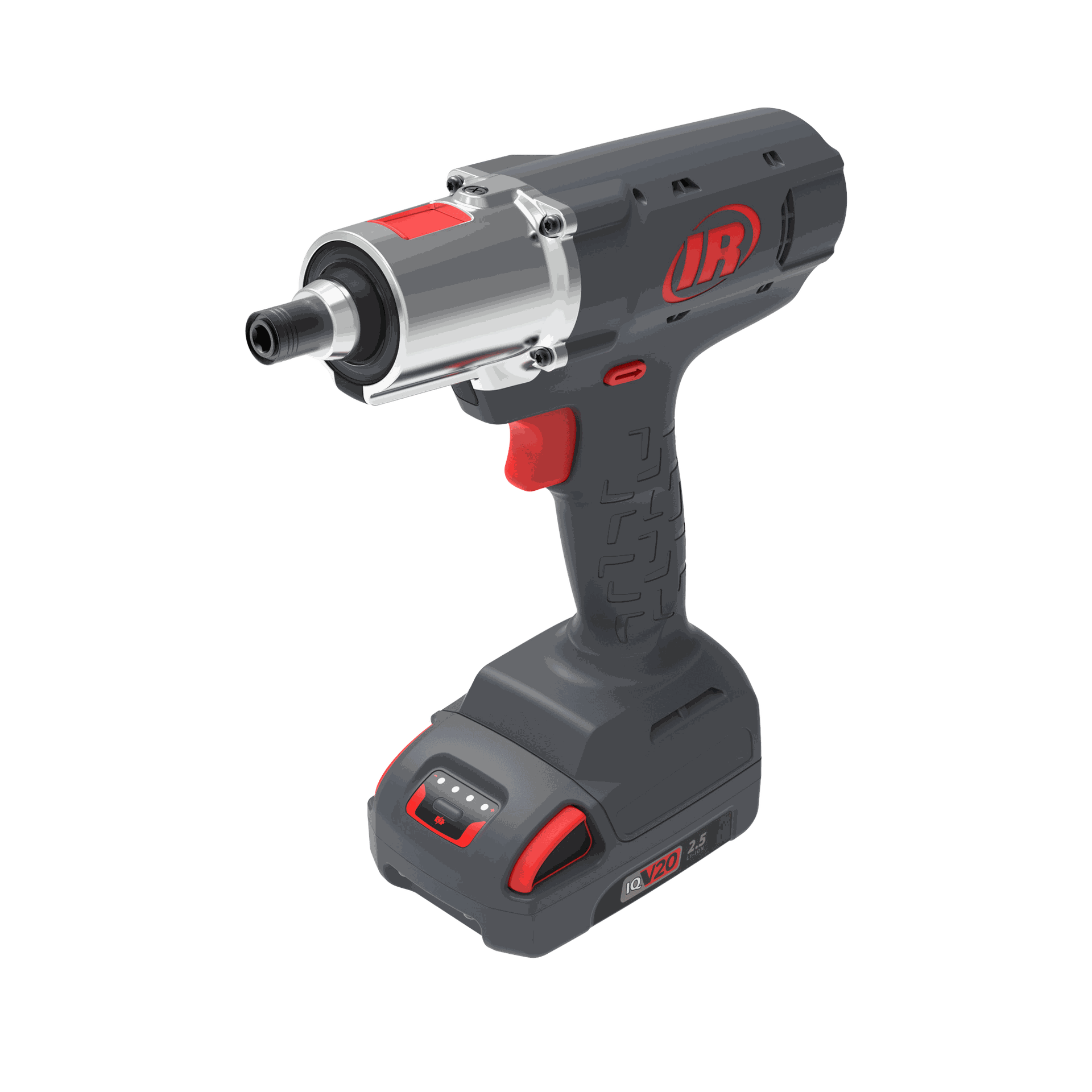

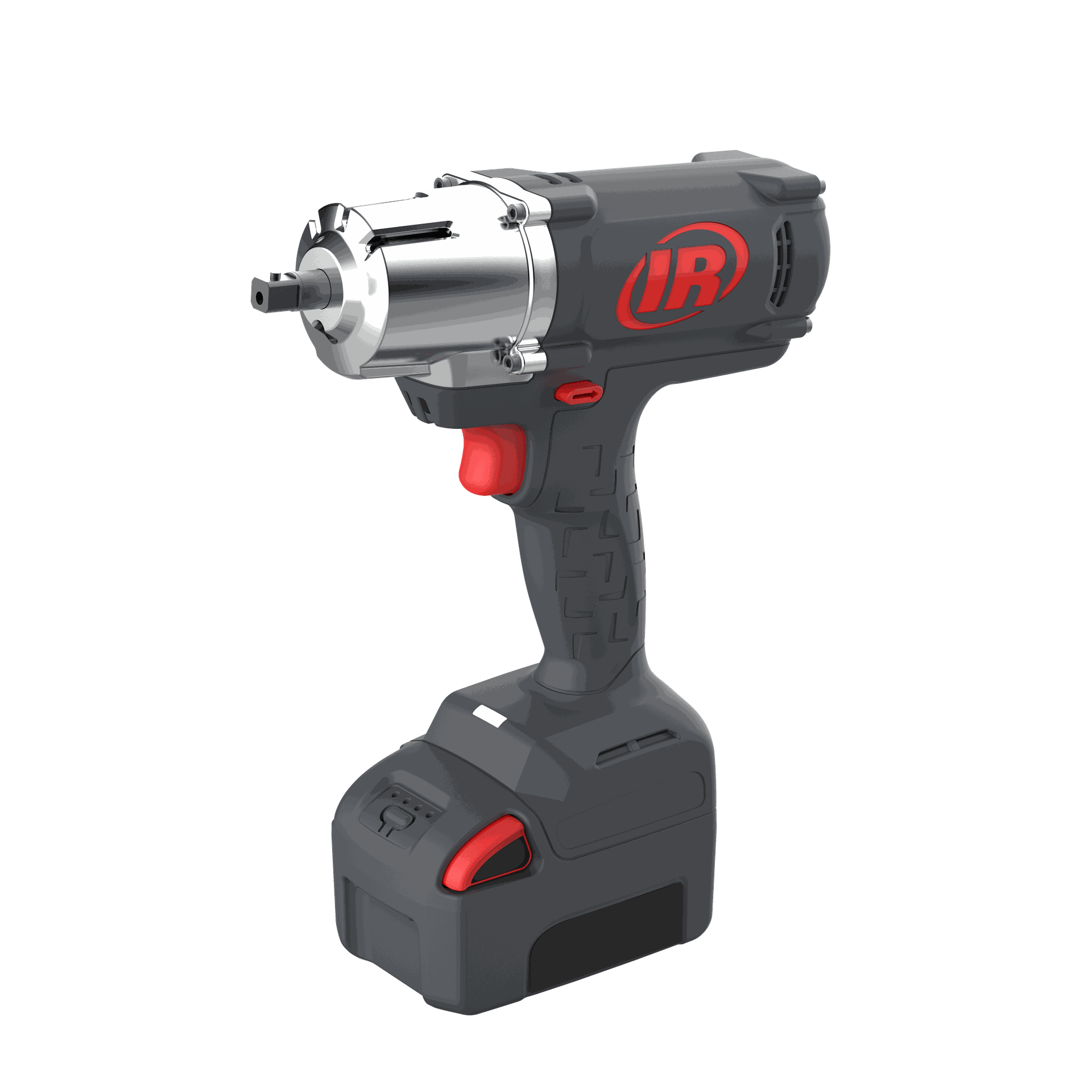

WP Series
[ Battery Tools ]
Torque Range
15 - 60 N.m
Oil pulse drive minimizes reaction force, noise and vibration
Dual-speed brushless motor with LED pass/fail indicator
Shares IQV20 battery platform with QX, RTS and QC tools
QC Series
[ Battery Tools ]
Torque Range
0.8 - 30 N.m
Proven clutch design delivers Cmk > 1.67 with ±10% accuracy
500K+ cycle durability; brushless DC motor
Pistol & angle configurations; USB-C programming via INSIGHT Connect app
