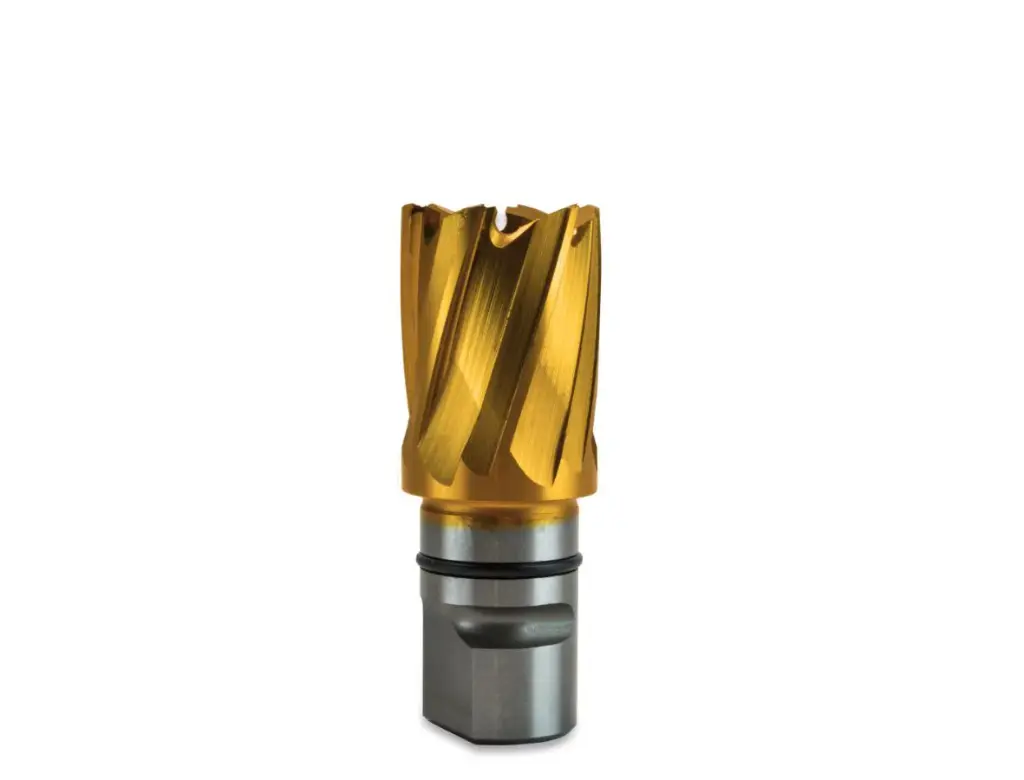

CY190L 19mm Broach Cutters, Tin Coated, For Rail Drilling Machines

Cembre CY190L 19mm Broach Cutters, Tin Coated, are high-precision, long-range cutting tools designed for use with Cembre’s rail drilling machines, such as the LD-41P, LD-16B-RP, or LD-1P ECO. Engineered for railway applications, these broach cutters are optimized for drilling clean, accurate 19mm holes in steel rails, particularly VIGNOLE (flat-bottom) rails like the 60E1 (UIC60), with enhanced durability and efficiency for deeper drilling tasks. They are particularly suited for applications such as the Cembre AR60D Rail Electrical Contact installation.

Key Features

• 19mm Diameter: Ideal for drilling precise 19mm holes in rail webs, compatible with electrical contact installations like the AR60D, signal track circuits, or rail fastening systems.
• Titanium Nitride (TiN) Coating: Enhances hardness, reduces friction, and improves corrosion resistance, delivering better cut surface finish and extended tool life under demanding conditions.
• Long-Range Design: The "L" designation indicates a longer cutting depth (likely 50 mm or greater), accommodating thicker rails or deeper holes compared to standard CY series cutters.
• Quick Push/Turn Shank: Ensures fast, secure attachment to Cembre rail drilling machines, streamlining setup and operation.
• Optimized Cutting Geometry: Produces clean, burr-free holes with faster drilling times and superior surface finish compared to earlier A and A-L type cutters.
• High Performance: Capable of drilling steel rail quality grades 700-900-1100 (UIC 860.0), offering more holes per cutter with improved efficiency and precision.
• Compatibility: Designed for Cembre rail drilling machines, ensuring seamless integration and reliable performance in lightweight, single-operator setups.
• Coolant System Support: Compatible with Cembre’s coolant systems (reservoir and pump with quick coupler), enhancing cutting performance and tool longevity.

Technical Specifications

• Diameter: 19 mm
• Depth: Likely 50 mm or greater (based on CYL series long-range characteristics)
• Coating: Titanium Nitride (TiN)
• Material: High-speed steel (HSS) or similar, optimized for rail steel
• Shank Type: Quick push/turn shank
• Compatibility: Cembre rail drilling machines (e.g., LD-41P, LD-16B-RP, LD-1P ECO)
• Rail Types: Suitable for steel rails grades 700-900-1100 (UIC 860.0), up to 50 mm thick

Applications

• Drilling 19mm holes in railway rails for electrical contact installations (e.g., Cembre AR60D)
• Supporting signal track circuits, grounding, or continuity bonding in railway infrastructure
• Maintenance and installation tasks requiring precise, deep holes in flat-bottom rails
• Use with Cembre’s portable rail drills for efficient single-operator tasks in various weather conditions
