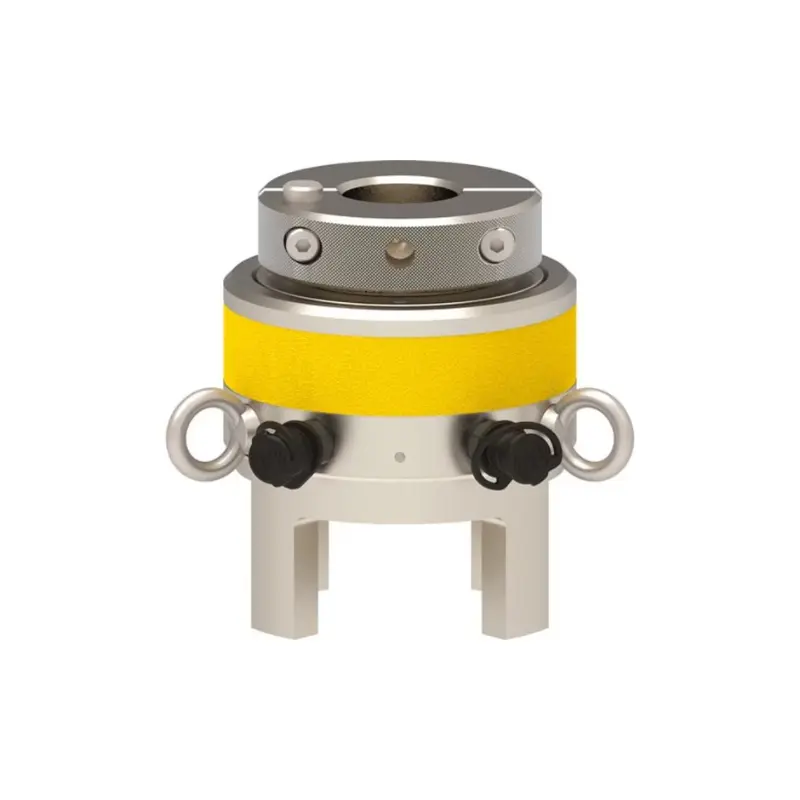

EAJ8LC, Aquajack Subsea Bolt Tensioner, 3 1/4" - 3 1/2" Maximum Thread Range
- Bolt Diameter Range: 3 1/4" – 3 1/2" (M80 – M90 mm)
- Maximum Operating Pressure: 21,750 psi (1,500 bar)
- Cylinder Effective Area: 23.98 in²
- Maximum Load Capacity: 260.9 tons (2,321 kN)
- Stroke: 1.18 in
- Weight: 401 lbs (182 kg)
- Key Dimensions (in inches): A = 9.72, B = 8.50, C = 7.60, D = 4.29, E = 9.92, F = 2.68, G = 16.22, H = 7.17
- Key Features: Compact design for subsea use; long piston stroke; misalignment compensation; quick hose connection; visible stroke indication; no-spill overstroke protection; Split Nut for rapid application/removal on long or damaged bolts
| Brand: Enerpac |
