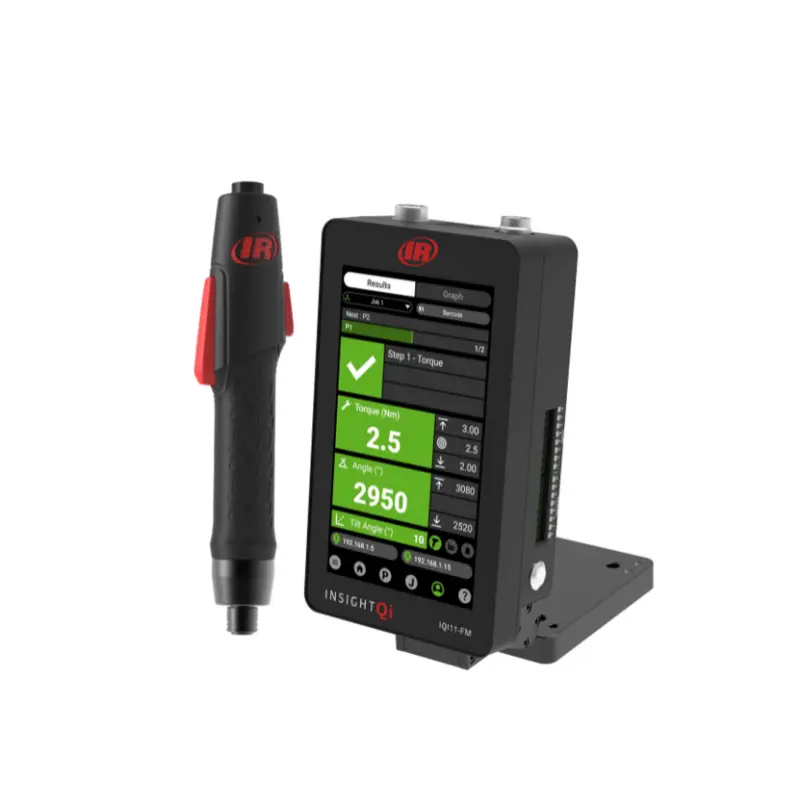

IQI4LT1000PQ4-SET IQI-T Transducerized Inline Screwdriver Push To Start 4-10N.mc/w controller & cable and PS

The Ingersoll Rand IQI4LT1000PQ4 is a compact, transducerized mid-torque inline electric screwdriver from the INSIGHT iQi Series, optimized for precision assembly in electronics, automotive, white goods, EV, electrical, and medical applications. This push-to-start model features a durable brushless motor for over 1 million maintenance-free cycles, real-time torque and angle monitoring with ±3.5% accuracy, and advanced error-proofing to detect issues like cross-threading, floating fasteners, or missing parts. It integrates seamlessly with the IQI11-FM controller and IQI-PS-2 power supply for fast setup, full traceability, and up to 50% reduced programming time via intuitive touchscreen or remote web access, supporting Industry 4.0 workflows.

• Model: IQI4LT1000PQ4 (Inline configuration, Transducerized – IQi-LT Series)
• Torque Range: 4–10 Nm (35–88 in.-lb.)
• Speed: 10–300 rpm (programmable)
• Drive Type: 1/4" Quick Change (QC)
• Activation Type: Push-to-Start (with lever start option)
• Weight: 1.01 kg (2.23 lb.)
• Length: 272 mm (10.71 in.)
• Side-to-Center Distance: 30.5 mm (1.2 in.)
• Housing Size: Size 4 (optimized for mid-torque range 2–15 Nm)
• Power: DC electric (requires IQI-PS-2 400W power supply and IQI11-FM controller; 24V DC input)
• Connectivity: Via IQI-CABLE-2M or IQI-CABLE-5M to controller; supports Ethernet (x2 ports), Fieldbus (Ethernet IP, Profinet, ProfiBUS, DeviceNet), MES protocols (Open Protocol, ToolsNet), digital I/O (7x5 integrated), USB (2.0/3.0 x2 each), RS232, and remote browser access
• Display/Feedback: 360° color-changing LED status beam (green for OK, red for NOK, white for task light, light blue for reverse); live trace capability on controller's 7" touchscreen
• Programmable Configurations: Up to 64 jobs with 32 PSETs each; strategies include torque, angle, prevailing torque, seating torque, speed ramping, tilt control (±5° alignment), iQ Stop shiftdown, gang count, and error detection (floating fastener, damaged thread, misalignment, broken fastener, missing parts); barcode integration; multi-language support
• Control System: Closed-loop transducerized for precise torque, angle, and rotation monitoring (±3.5% accuracy, Cmk >1.67 @ ±7%); brushless motor with overheating protection; logic rules for job sequencing
• Data Storage: Up to 1,000,000 fastening results on controller; removable SSD for backups; audit logs and exports (CSV, XML)
• Operator Feedback: LED status beam indicators; ergonomic rubber overmold grip (>34 mm diameter); ESD-safe housing; reverse lever; intuitive UI with context-specific help
• Maintenance Features: Over 1 million cycle durability; precision gearbox; controller diagnostics, firmware updates via USB/web, and preventative alarms; boot time 60 sec
• Additional Features: Compact ergonomic design for prolonged use; modular controller mounting (table/wall); quick setup (<2 min); remote web programming/troubleshooting; color identification ring (red for Transducerized); Industry 4.0 ready with MES/Fieldbus integration; compatible with IQi Series accessories (articulating arms, torque arms)
