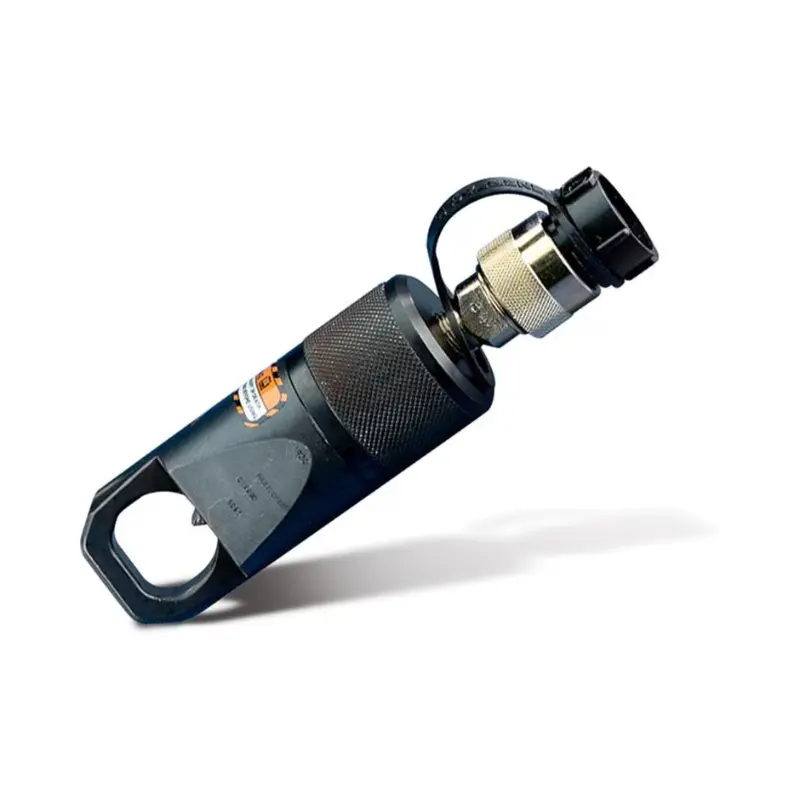

NC2432, 147 kN Capacity, Hydraulic Nut Cutter, Hexagon up to 32 mm

Enerpac NC2432 is a compact, high-capacity hydraulic nut cutter from the NC-Series, designed for safely splitting seized or corroded hexagon nuts up to 32 mm without damaging underlying bolts, ideal for maintenance in pipelines, flanges, construction, and industrial applications. This single-acting, spring-return system features an ergonomic design with a unique angled head for flush access in tight spaces, delivering clean, flare-free cuts with minimal flare-up risk, ensuring reliable performance under 700 bar pressure with heavy-duty, regroundable chisels for extended tool life.

• Model: NC2432 (Hydraulic Nut Cutter)
• Capacity: 147 kN (15 tons)
• Hexagon Nut Range: 24–32 mm (0.94–1.26 in.)
• Bolt Diameter Range: M16–M22 (5/8–7/8 in.)
• Maximum Operating Pressure: 700 bar (10,000 PSI)
• Cutter Head Type: Single-acting, spring return
• Oil Capacity: 20 cm³ (1.22 in³)
• Weight: 3.5 kg (7.7 lb.)
• Dimensions:
  • Height (A): 128 mm (5.04 in.)
  • Width (B): 66 mm (2.60 in.)
  • Depth (C): 28 mm (1.10 in.)
  • Length (D): 170 mm (6.69 in.)
  • Jaw Opening (F): 24 mm (0.94 in.)
  • Reaction Height (H): 48 mm (1.89 in.)
• Cutting Blade: Heavy-duty hardened steel chisel (regroundable); adjustable depth and positioning scale to prevent bolt damage; suitable for grade 8 metal nuts (max HRc-44 hardness or ASTM A194 Gr 2H); not for square, star, round, or stainless steel nuts
• Operator Feedback: Visual cut completion indicator
• Maintenance Features: Tool-free chisel replacement (NCB2432 replacement chisel); corrosion-resistant steel construction; annual seal inspection recommended
• Additional Features: Unique angled head for flush access; compact ergonomic design; safety lock mechanism; complies with industry standards for hydraulic tools
