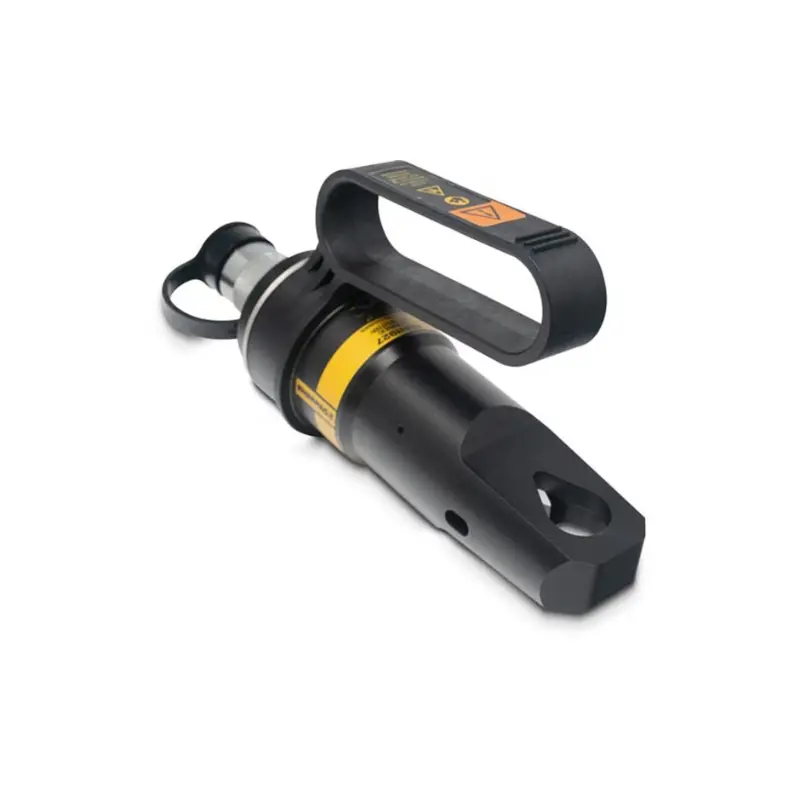

NSH2432, 150 kN Capacity, Hydraulic Nut Splitter, Hexagon up to 32 mm

Enerpac NSH2432 is a high-capacity hydraulic nut splitter designed for safely splitting seized or corroded hexagon nuts up to 32 mm without damaging underlying bolts, ideal for maintenance in pipelines, flanges, construction, and industrial applications. This single-acting, spring-return system features a compact, ergonomic design with an adjustable hardened steel cutting tip for enhanced access in tight spaces, delivering clean, flare-free cuts with minimal flare-up risk, and supports ATEX-certified operations in hazardous environments, ensuring reliable performance under 700 bar pressure with easy blade replacement for extended tool life.

• Model: NSH2432 (Hydraulic Nut Splitter)
• Capacity: 150 kN (15 tons)
• Hexagon Nut Range: 24–32 mm (0.94–1.26 in.)
• Bolt Diameter Range: M16–M22 (5/8–7/8 in.)
• Maximum Operating Pressure: 700 bar (10,000 PSI)
• Cutter Head Type: Single-acting, spring return
• Oil Capacity: 57 cm³ (3.5 in³)
• Weight: 4.0 kg (8.8 lb.)
• Dimensions: Height 220 mm (8.66 in.), Width 152 mm (5.98 in.), Length 265 mm (10.43 in.)
• Cutting Blade: Replaceable hardened steel tip for clean cuts; adjustable depth and positioning scale to prevent bolt damage; suitable for grade 8 metal nuts (max HRc-44 hardness or ASTM A194 Gr 2H); not for square, star, round, or stainless steel nuts
• Operator Feedback: Visual cut completion indicator; integrated safety lanyard (FSC-1) for secure handling
• Maintenance Features: Tool-free blade replacement; corrosion-resistant steel construction; annual seal inspection recommended; drop-tested revolving anchor point
• Additional Features: ATEX Ex II 2 G c T6 certified for Zone 1 gas/dust atmospheres; supports single-acting spring-return operation; optional double-acting NSPH-D for subsea use; carrying case for portability; complies with CE-ATEX standards
