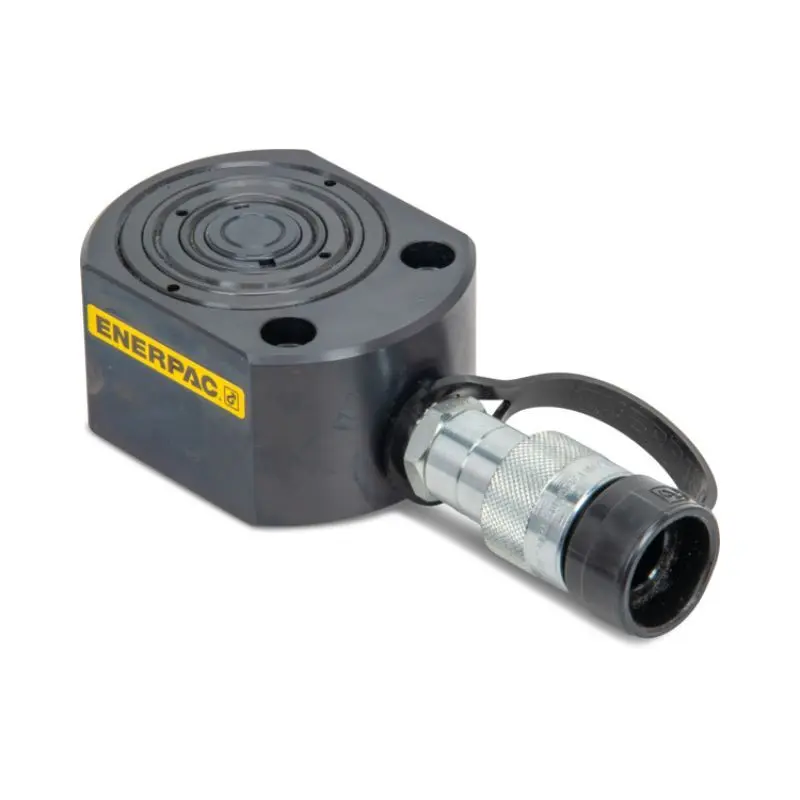

RLT110 111 kN Capacity, 18 mm Stroke, Low Height Multi-stage, Telescopic Hydraulic Cylinder

Enerpac RLT110 is a compact, low-height 2-stage telescopic hydraulic cylinder ideal for precise lifting and positioning in extremely confined spaces, such as machinery alignment or tool fastening. Delivering a maximum capacity of 12.5 tons (111 kN) over an 18 mm stroke, this single-acting, load-return model operates at up to 10,150 psi with nitrocarburized steel for superior corrosion and wear resistance, ensuring safe and efficient performance in industrial environments where traditional cylinders cannot fit.

• Product Overview
  • Name: Enerpac RLT110 Low Height Multi-stage Telescopic Hydraulic Cylinder
  • Type: Single-acting, 2-stage telescopic cylinder with load return
  • Primary Applications: Machinery positioning, tool fastening, and lifting in confined spaces
  • Force Output: 12.5 tons (111 kN) at maximum stroke
  • Stroke: 18 mm (0.71 in) total
  • Stages: 2 stages, Stage 1: 11 mm (0.43 in) stroke; Stage 2: 7 mm (0.28 in) stroke
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 55 mm (2.15 in) minimum
• Technical Specifications
  • Capacity (Stage 1): 26.1 tons (232 kN)
  • Capacity (Stage 2): 12.5 tons (111 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Total Stroke: 18 mm (0.71 in)
  • Collapsed Height (A): 55 mm (2.15 in)
  • Extended Height (B): 72 mm (2.85 in)
  • Oil Capacity (Advance): 47.5 cm³ (2.90 in³)
  • Weight: 3 kg (6.6 lbs)
  • Outside Diameter (D): 102 x 80 mm (4.02 x 3.15 in)
  • Plunger Diameter (Stage 1): 80 mm (3.15 in)
  • Base Bolt Circle Diameter: 14 mm (0.55 in)
  • Body Material: Steel with nitrocarburized surface treatment
  • Side-Load Capacity: Up to 3% of maximum capacity
  • Series: RLT Series Low-Height Telescopic Cylinders
• Key Features
  • Low-profile design enables use in tight clearances where standard cylinders fail
  • Nitrocarburized treatment inside and out for corrosion protection and harsh-condition durability
  • Mounting bolt holes for secure and simple fixturing
  • Load return mechanism for rapid retraction and efficiency
  • High-alloy steel construction for maximum strength and safety
  • Integrated CR-400 coupler for compatibility with standard pumps
  • Complies with ASME B30.1 and EN1494 safety standards
