RLT230 232 kN Capacity, 27 mm Stroke, Low Height Multi-stage, Telescopic Hydraulic Cylinder

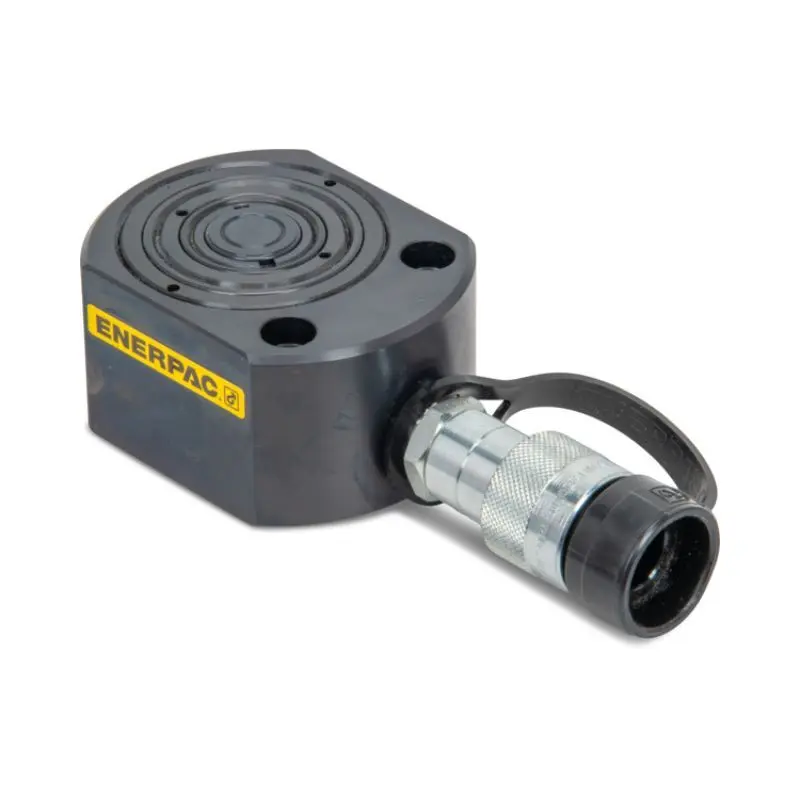

Enerpac RLT230 is a compact, low-height 2-stage telescopic hydraulic cylinder ideal for precise lifting and positioning in extremely confined spaces, such as machinery alignment or tool fastening. Delivering a maximum capacity of 26.1 tons (232 kN) over a 27 mm stroke, this single-acting, load-return model operates at up to 10,000 psi with nitrocarburized steel for superior corrosion and wear resistance, ensuring safe and efficient performance in industrial environments where traditional cylinders cannot fit.

• Product Overview
  • Name: Enerpac RLT230 Low Height Multi-stage Telescopic Hydraulic Cylinder
  • Type: Single-acting, 2-stage telescopic cylinder with load return
  • Primary Applications: Machinery positioning, tool fastening, and lifting in confined spaces
  • Force Output: 26.1 tons (232 kN) at maximum stroke
  • Stroke: 27 mm (1.06 in) total
  • Stages: 2 stages
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 75 mm (2.95 in) minimum
• Technical Specifications
  • Capacity (Stage 1): 55.8 tons (498 kN)
  • Capacity (Stage 2): 26.1 tons (232 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Total Stroke: 27 mm (1.06 in)
  • Collapsed Height (A): 75 mm (2.95 in)
  • Extended Height (B): 102 mm (4.02 in)
  • Oil Capacity (Advance): 150 cm³ (9.15 in³)
  • Weight: 7.6 kg (16.8 lbs)
  • Outside Diameter (D): 140 x 114 mm (5.51 x 4.49 in)
  • Body Material: Steel with nitrocarburized surface treatment
  • Side-Load Capacity: 3% of full capacity
  • Series: RLT Series Low-Height Telescopic Cylinders
• Key Features
  • Low-profile design enables use in tight clearances where standard cylinders fail
  • Nitrocarburized treatment inside and out for corrosion protection and harsh-condition durability
  • Mounting bolt holes for secure and simple fixturing
  • Load return mechanism for rapid retraction and efficiency
  • High-alloy steel construction for maximum strength and safety
  • Integrated CR-400 coupler for compatibility with standard pumps
  • Complies with ASME B30.1 and EN1494 safety standards
