RLT741 727 kN Capacity, 26 mm Stroke, Low Height Multi-stage, Telescopic Hydraulic Cylinder

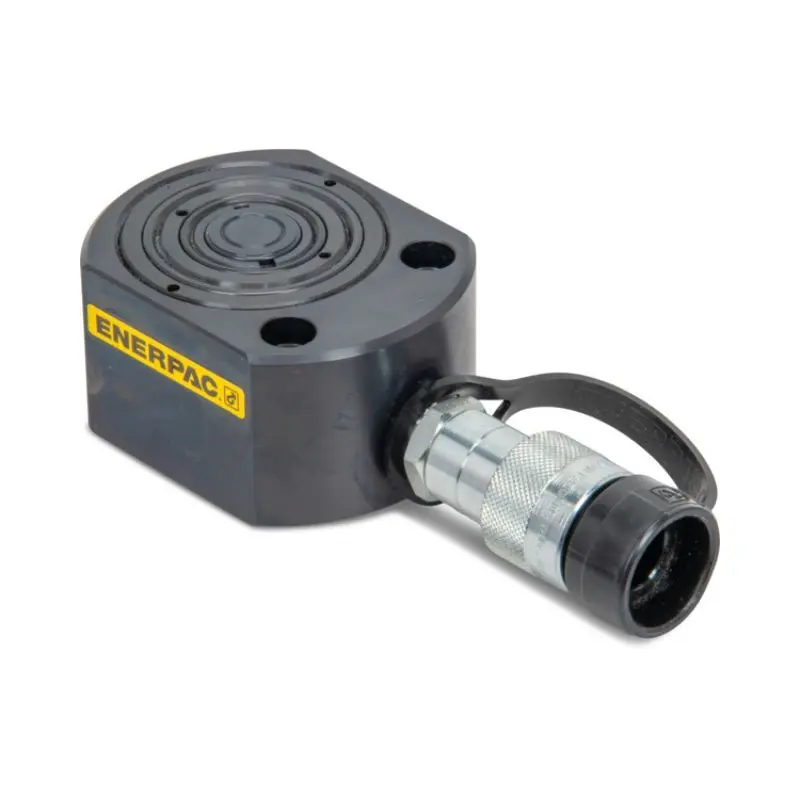

Enerpac RLT741 Low Height Multi-stage Telescopic Hydraulic Cylinder

The Enerpac RLT741 is a compact, low-height 2-stage telescopic hydraulic cylinder ideal for precise lifting and positioning in extremely confined spaces, such as machinery alignment or tool fastening. Delivering a maximum capacity of 81.7 tons (727 kN) over a 26 mm stroke, this single-acting, load-return model operates at up to 10,000 psi with nitrocarburized steel for superior corrosion and wear resistance, ensuring safe and efficient performance in industrial environments where traditional cylinders cannot fit.

• Product Overview
  • Name: Enerpac RLT741 Low Height Multi-stage Telescopic Hydraulic Cylinder
  • Type: Single-acting, 2-stage telescopic cylinder with load return
  • Primary Applications: Machinery positioning, tool fastening, and lifting in confined spaces
  • Force Output: 81.7 tons (727 kN) at maximum stroke
  • Stroke: 26 mm (1.02 in) total
  • Stages: 2 stages, with 15.9 mm (0.63 in) and 9.5 mm (0.38 in) strokes per stage
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 114 mm (4.49 in) minimum
• Technical Specifications
  • Capacity (Stage 1): 158.2 tons (1,408 kN)
  • Capacity (Stage 2): 81.7 tons (727 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Total Stroke: 26 mm (1.02 in)
  • Collapsed Height (A): 114 mm (4.49 in)
  • Extended Height (B): 140 mm (5.51 in)
  • Oil Capacity (Advance): 425 cm³ (25.97 in³)
  • Weight: 30.4 kg (67 lbs)
  • Outside Diameter (D): 216 x 196 mm (8.50 x 7.72 in)
  • Body Material: High-alloy steel with nitrocarburized surface treatment
  • Side-Load Capacity: Up to 3% of maximum capacity
  • Series: RLT Series Low-Height Telescopic Cylinders
• Key Features
  • Low-profile design enables use in tight clearances where standard cylinders fail
  • Nitrocarburized treatment inside and out for corrosion protection and enhanced durability
  • Mounting bolt holes for secure and simple fixturing
  • Load return mechanism for rapid retraction and efficiency
  • High-alloy steel construction for maximum strength and safety
  • Integrated CR-400 coupler for compatibility with standard pumps
  • Complies with ASME B30.1 and EN1494 safety standards
