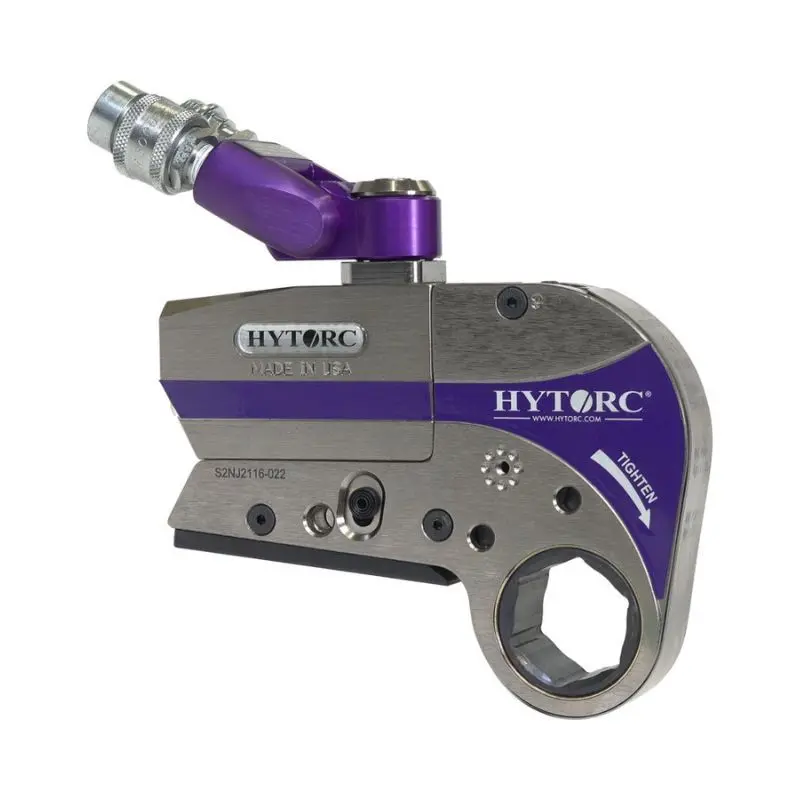

STEALTH-36 Limited Clearance Torque Wrench, 34722 Ft-Lbs

HYTORC STEALTH-36 is a low-clearance hydraulic torque wrench from the STEALTH series, engineered for precise high-torque bolting in confined spaces within demanding industrial environments like construction, maintenance, and petrochemical operations. This hex drive model provides up to 34,722 ft-lbs of torque with ±3% accuracy, powered by a hydraulic pump system up to 10,000 PSI for reliable efficiency in tight-access applications. Featuring a patented dual-piston powerhead, ultra-slim continuous body design, and compatibility with HYTORC accessories, it's built for fast, hands-free performance where standard tools can't reach.

Key Performance Specifications

• Torque Range: 4,913–34,722 ft-lbs (6,665–47,069 Nm)
• Accuracy: ±3%
• Drive Size: Hex, 3.54–6.89 in (90–175 mm)
• Max Operating Pressure: 10,000 PSI (700 bar)

Physical and Environmental Specifications

• Weight: 69.0 lbs (31.3 kg)
• Dimensions: Height 3.43 in (87 mm); Length 10.83 in (275 mm); Width 3.07–4.80 in (78–122 mm)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Key Features

• Patented Dual-Piston Powerhead: Delivers superior speed and power compared to single-piston low-clearance tools for faster bolting cycles
• Ultra-Slim Continuous Body Design: Fits into impossibly tight spaces with minimal clearance requirements
• Hands-Free Operation: Optional Stealth Lock-On adapter enables secure, drop-free bolting with or without HYTORC Washer
• 360°/180° Uniswivel: Allows flexible hose positioning for safe, convenient access in awkward angles
• Compatible Accessories: Works with HYTORC Washer, Nut Drivers, and various reaction fixtures for versatile, reaction-free applications
• Corrosion-Resistant Construction: Ensures durability in harsh, tough conditions including subsea operations
• Low Vibration: Minimizes operator fatigue and hand-arm vibration syndrome (HAVS) risk
• Ergonomic Design: Lightweight aluminum housing with integrated safety handle, quick-lock mechanism for box-head, and removable support handle
• Data Management: Pressure-to-torque conversion charts for precise control; integrable with robotic systems
• Applications: Ideal for low-clearance bolting in pipelines, flanges, and confined spaces; suitable for explosive environments with ATEX option
