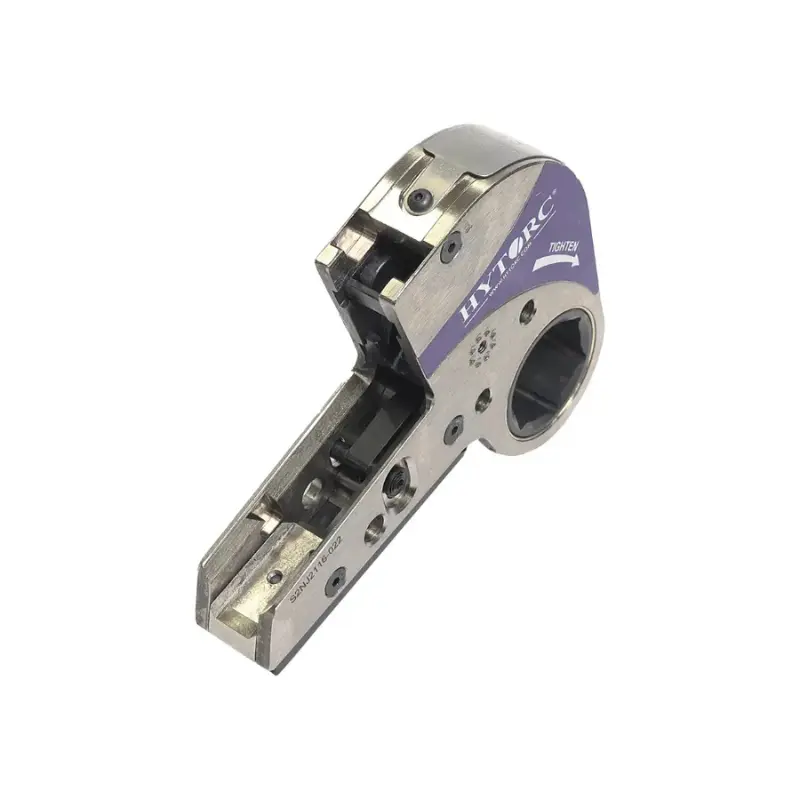

STEALTH-8 Limited Clearance Torque Wrench, 7984 Ft-Lbs

HYTORC STEALTH-8 is a compact, limited-clearance hydraulic torque wrench from the STEALTH Series, engineered for precise bolting in confined spaces across oil & gas, construction, power generation, and heavy maintenance applications. This low-profile, uni-body design delivers up to 7,984 ft.-lbs. of torque with ±3% accuracy via a simple 3-moving-part mechanism and quick-change cartridges for ratchet or hex links, integrating seamlessly with 10,000 PSI hydraulic pumps for fast, repeatable cycles, enhanced safety through 360° uniswivel hoses and built-in lock-on release, and minimal downtime with no auto-pressure release or cycle counter.

• Model: STEALTH-8 (Limited Clearance Hydraulic Torque Wrench; part of STEALTH Series)
• Torque Range: 1,199–7,984 ft.-lbs. (1,626–10,825 Nm)
• Accuracy: ±3% torque accuracy; repeatability ±1%
• Speed: 10–15 RPM under load (full cycle 5–10 seconds, pump-dependent)
• Drive Type: Quick-change cartridge system for low-clearance ratchet or hex links (6-point or 12-point options)
• Nut/Fastener Sizes: 2"–3-7/8" (50.8–98.4 mm) hex
• Working Pressure: 1,500–10,000 PSI (104–690 bar) maximum; calibrated via pressure-torque conversion charts
• Weight: 6.70 lbs. (3.04 kg) without hoses or accessories
• Dimensions: Height: 6.40 in. (162.6 mm); Width: 2.18 in. (55.4 mm); Length: 8.00 in. (203.2 mm); Radius: 1.77–2.89 in. (45–73.4 mm)
• Side-to-Center Distance: 1.77–2.89 in. (45–73.4 mm)
• Connectivity: Twin-line hydraulic hoses (up to 20 ft./6 m standard; 360° multi-direction uniswivel coupler); compatible with HYTORC L-700, Z-Series electric/pneumatic pumps (ATEX-certified options available)
• Display/Feedback: Analog pump pressure gauge; visual stall indicator (rotation stops); audible "click" for cycle completion/reset; no onboard display or cycle counter
• Programmable Configurations: Manual pressure sequencing (e.g., 3–4 low-pressure seating cycles + final torque verification); supports torque & angle adjustments
• Control System: Hydraulic dual-piston ratchet drive with auto-retraction and built-in lock-on release; closed-loop via pump pressure monitoring; no auto-pressure release
• Data Storage: N/A (analog operation; optional HYTORC Washer accessory for digital cycle logging/traceability)
• Operator Feedback: Ergonomic safety handle; adjustable reaction arm/block; low vibration (<2.5 m/s²); color-coded hoses for advance/retract
• Maintenance Features: Sealed uni-body design for >5,000 cycles; NLGI #2 molybdenum grease lubrication; annual seal/hose inspection; 12-month warranty with loaner program
• Additional Features: Anodized alloy steel/aluminum for corrosion resistance; hands-free bolting with optional Tool Retainer (ASTM-compliant, eliminates separate reaction fixture); subsea operation capable; integrable with robotic systems; exceeds EN/ISO 11148-6 and ASME B30.2 standards; optional male hex adapters, sockets, and reaction fixtures
