TSFC75H Split Frame Clamshell 60 - 75" Hydraulic

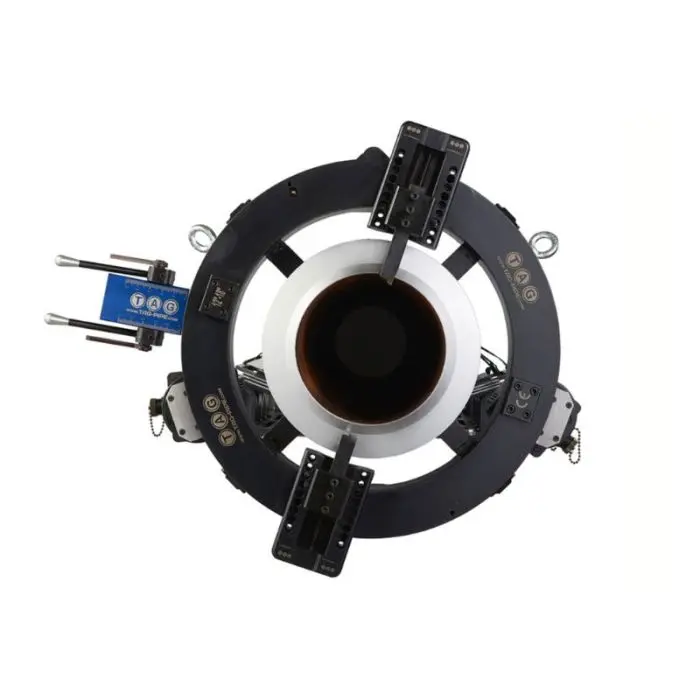

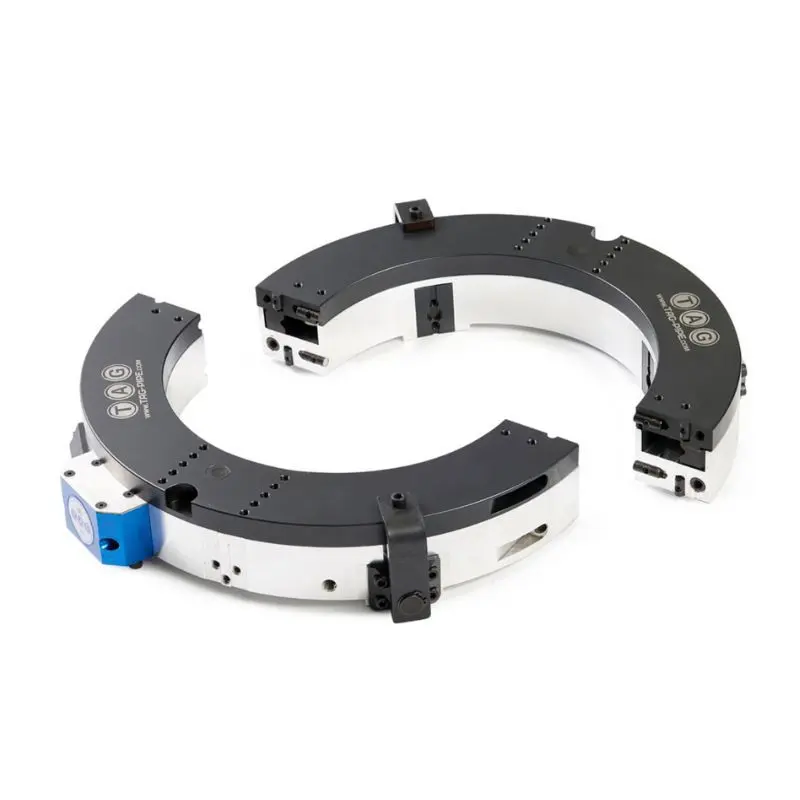

TAG TSFC75H Split Frame Clamshell is a revolutionary portable cold cutting and bevelling machine designed for high-speed, precise pipe preparation in industrial, fabrication, and workshop environments. Powered by a hydraulic drive system for superior torque and reliability in demanding conditions, this low-profile tool features a quick lock/unlock splitting hinge and modular locking system, enabling accurate cuts and bevels on pipes from 60" to 75" (1,524-1,910 mm O/D) up to 120 mm wall thickness, suitable for all materials including stainless steel and exotic alloys.

• Model Number: TSFC75H

• Product Type: Portable Split Frame Clamshell Cold Cutting & Bevelling Machine (Hydraulic)

• Color: Silver/Gray

• Material: Heavy-duty steel outer body with treated steel inner ring gear and hardened components

• Clamping Range: 60" - 75" / 1,524 - 1,910 mm O/D

• Wall Thickness Capacity: Up to 120 mm / 4.7"

• Motor Type: Hydraulic (5.4 hp; 1-6 rpm idle speed; rated pressure 16 MPa, rated flow 25 l/min; 25 mm spline drive)

• Power Pack: Electric motor 7.5 kW at 1450 r/min (3-phase, timing range 0-20 r/min); shipping weight 300 kg

• Control System: Manual with double striker (0.2 mm feed per revolution)

• Weight (Net): Ring only 1,255 kg / 2,766 lbs (packing weight ~1,800 kg / 3,968 lbs including power pack)

• Dimensions (Ring): A: 1,910 mm, B: 1,016 mm, C MIN: 925 mm, C MAX: 1,017 mm, D: 2,230 mm, E: 100 mm, F (Ring only): 267.5 mm, F (Hydraulic Motor): 727.6 mm, G: 196 mm, X: 255 mm

• Overview: High-speed cold cutting and bevelling system using clamshell split frame principle; rotating inner ring for precise, stable cuts; ideal for workshops and high-productivity process environments with limited access

• Key Features:

  • Low-profile frame for confined spaces; simultaneous beveling and cutting for perfect weld preparation
  • Modular locking system with advanced external metal plate to distribute pressure; wide hardened clamping feet (55 x 115 mm) with rule marks for rapid, repeatable concentric setup, even on out-of-round pipes; 8 telescopic clamping jaws
  • Quick split frame design with lock/unlock hinge for fast in-situ setup
  • Advanced cam roller bearing system (size L) for fine adjustment and easy maintenance
  • TAG advanced feeding system with worm and crown for even pressure distribution, reducing vibration and tool wear; toolbox stroke 210 mm / 8.3"
  • Double striker with extended engaging handle for hands-free operation; two bolt motor mount for fast motor changes; 4 striker mount positions
  • Accepts wide range of accessories (e.g., standard/low-profile tool box, O/D tracking, counter bore slide)
  • Tooling: HSS Co range for sever/cut, bevel, double-bevel, compound bevel, J-prep, counter bore; holder/insert tooling available; custom designs on request
  • Versatility: Handles external/internal beveling, counter-boring, compound bevels, J-prep; suitable for any steel/exotic alloy
  • Safety: Overload protection; ergonomic design
  • Eco-Friendly: Optimizes process to reduce material waste

• Packaging: 1 Machine per Unit; Includes ring/body, hydraulic motor, tool boxes, striker, locking jaws, machine box, service tools; drawings, instruction manual, warranty certificate; custom wooden box for TSFC75

• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions

• Compliance: Meets industry standards for pipe cutting and bevelling tools (e.g., ASME equivalents)
