TSFC8R Split Frame Clamshell 2 - 8" Ring Only

The TAG TSFC8R Split Frame Clamshell is a revolutionary portable cold cutting and bevelling machine designed for high-speed, precise pipe preparation in industrial, fabrication, and workshop environments. As a ring-only model for versatile integration with user-selected drives, this low-profile tool features a quick lock/unlock splitting hinge and modular locking system, enabling accurate cuts and bevels on pipes from 2" to 8" (60.3-235 mm O/D) up to 120 mm wall thickness, suitable for all materials including stainless steel and exotic alloys.

• Model Number: TSFC8R

• Product Type: Portable Split Frame Clamshell Cold Cutting & Bevelling Machine (Ring Only)

• Color: Silver/Gray

• Material: Lightweight aluminium outer body with treated steel inner ring gear and hardened components

• Clamping Range: 2" - 8" / 60.3 - 235 mm O/D

• Wall Thickness Capacity: Up to 120 mm / 4.7"

• Motor Type: Compatible with pneumatic, electric (110V/220V), hydraulic, or NC servo electric motors (user-selected; e.g., pneumatic: 3 hp, 5-28 rpm; electric: 1.9 kW, 5-16 rpm; hydraulic: 5.4 hp, 5-28 rpm)

• Power Pack: N/A (ring only; power pack supplied separately with selected motor)

• Control System: Manual with double striker (0.2 mm feed per revolution)

• Weight (Net): Ring only 32 kg / 70.5 lbs (packing weight ~70 kg / 154 lbs for ring)

• Dimensions (Ring): A: 235 mm, B: 308.5 mm, C MIN: 212.5 mm, C MAX: 222.5 mm, D: 391 mm, E: 78 mm, F (Ring only): 195.5 mm, G: 124 mm, X: 130 mm; Packing: approx. 1,450 x 1,000 x 510 mm

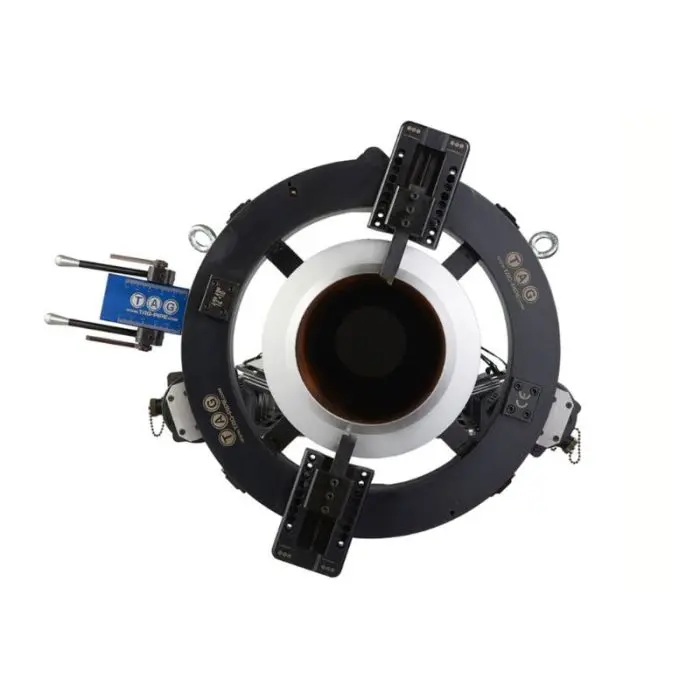

• Overview: High-speed cold cutting and bevelling system using clamshell split frame principle; rotating inner ring for precise, stable cuts; ideal for workshops and high-productivity process environments with limited access

• Key Features:

  • Low-profile frame for confined spaces; simultaneous beveling and cutting for perfect weld preparation
  • Modular locking system with advanced external metal plate to distribute pressure; wide hardened clamping feet (40 x 60 mm) with rule marks for rapid, repeatable concentric setup, even on out-of-round pipes

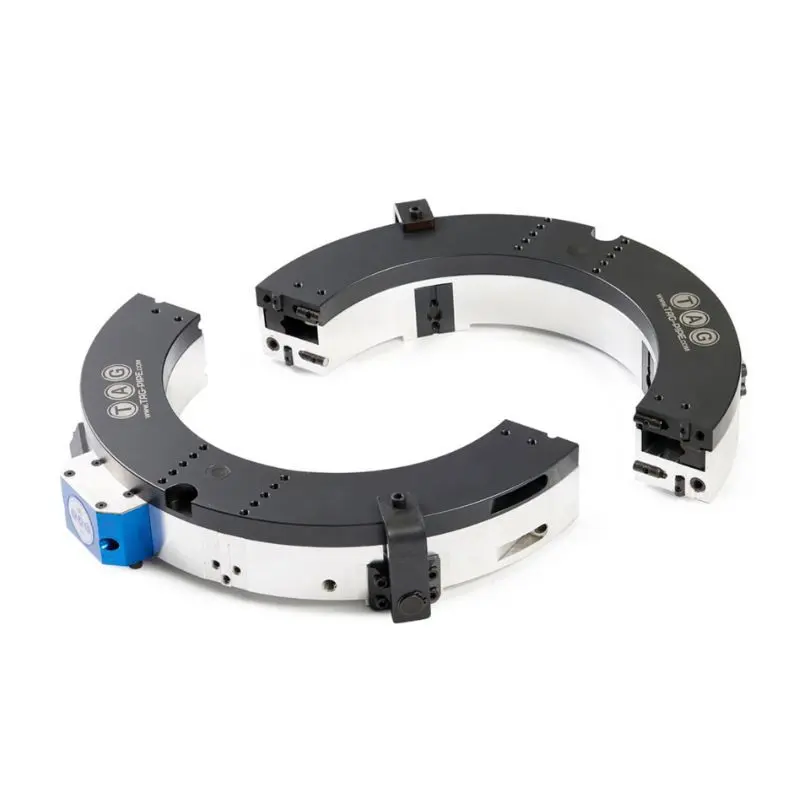

  • Quick split frame design with lock/unlock hinge for fast in-situ setup
  • Advanced cam roller bearing system (size S) for fine adjustment and easy maintenance
  • TAG advanced feeding system with worm and crown for even pressure distribution, reducing vibration and tool wear; toolbox stroke 60 mm
  • Double striker with extended engaging handle for hands-free operation; two bolt motor mount for fast motor changes
  • Accepts wide range of accessories (e.g., standard/low-profile tool box, O/D tracking, counter bore slide)
  • Tooling: HSS Co range for sever/cut, bevel, double-bevel, compound bevel, J-prep, counter bore; holder/insert tooling available; custom designs on request
  • Versatility: Handles external/internal beveling, counter-boring, compound bevels, J-prep; suitable for any steel/exotic alloy
  • Safety: Overload protection; ergonomic design
  • Eco-Friendly: Optimizes process to reduce material waste

• Packaging: 1 Ring per Unit; Includes ring/body, locking jaws, machine box, service tools; drawings, instruction manual, warranty certificate; custom wooden/metal box for TSFC8

• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions

• Compliance: Meets industry standards for pipe cutting and bevelling tools (e.g., ASME equivalents)
