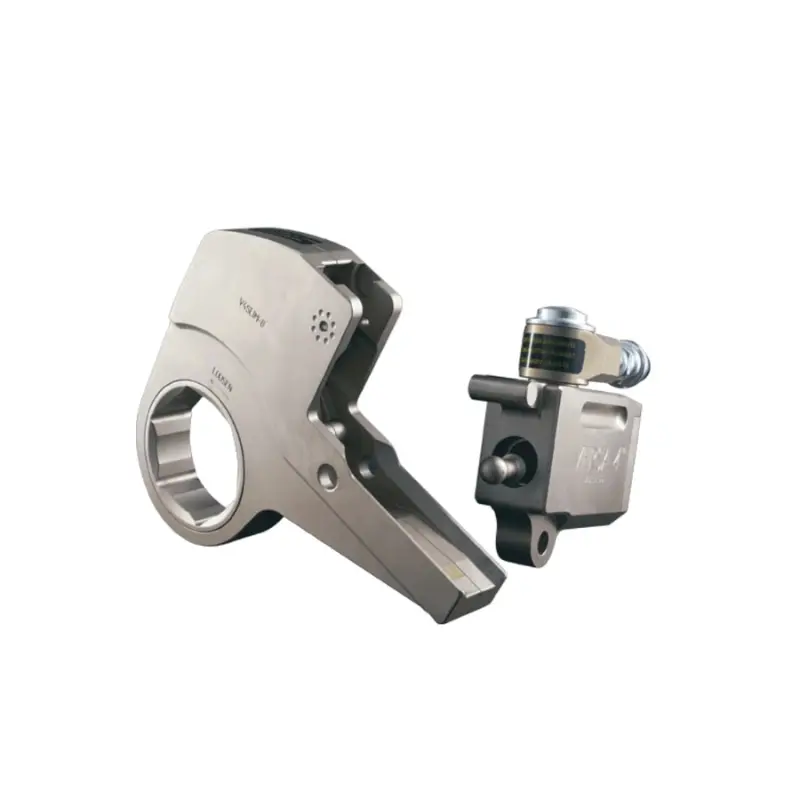

VERSA-2 Low Clearance Power Head, 1920 Ft-Lbs

Hytorc VERSA-2 Low Clearance Power Head is a lightweight, versatile hydraulic torque wrench powerhead from the VERSA Series, delivering up to 1,920 ft.-lbs. of torque for precise bolting in confined spaces across construction, oil & gas, wind energy, and industrial maintenance applications. This ergonomic tool features a simple 3-part design with quick-change cartridges for ratchet or hex links, ±3% accuracy, and seamless integration with electric or pneumatic pumps, enabling fast, repeatable cycles with minimal operator fatigue and safety enhancements like 360° swivel hoses and auto-retraction.

• Model: VERSA-2 Low Clearance Power Head (1920 ft.-lbs. configuration; compatible with L7-L8 links)
• Torque Range: 261–1,920 ft.-lbs. (354–2,604 Nm); accuracy ±3%, repeatability ±1%
• Speed: 10–15 RPM under load (full cycle 5–10 seconds, pump-dependent)
• Drive Type: Quick-change cartridge system for low-clearance ratchet/hex links (nut sizes 3/4"–1-1/8")
• Working Pressure: 10,000 PSI (700 bar) maximum; calibrated via pressure-torque charts (e.g., 1,500 PSI ≈ 278 ft.-lbs., 10,000 PSI ≈ 1,920 ft.-lbs.)
• Weight: 3.25 lbs. (1.47 kg) without link or hoses
• Length: 5.35 in. (136 mm) overall (varies with cartridge/link); low-clearance head radius 1.25 in. (32 mm)
• Side-to-Center Distance: 1.13 in. (28.7 mm) nominal
• Connectivity: Twin-line hydraulic hoses (up to 10 ft./3 m standard; 360° uniswivel coupler); compatible with HYTORC L-700, Z-Series, and ATEX pumps
• Display/Feedback: Analog pressure gauge on pump; visual stall indicator (rotation stops); audible "click" for cycle completion/reset
• Programmable Configurations: Manual pressure sequencing (e.g., 3–4 low-pressure seating cycles + final torque verification)
• Control System: Hydraulic single-piston ratchet drive with auto-retraction; closed-loop via pump pressure monitoring
• Data Storage: N/A (analog; optional HYTORC Washer for digital traceability)
• Operator Feedback: Ergonomic overmold grip; adjustable reaction arm/block; low vibration (<2.5 m/s²); color-coded hoses
• Maintenance Features: Sealed cartridge for >5,000 cycles; NLGI #2 molybdenum grease lubrication; annual seal/hose inspection; 12-month warranty with loaner program
• Additional Features: Anodized alloy steel/aluminum for corrosion resistance; ATEX Zone 2 certified options; hands-free operation with HYTORC Washer; exceeds ASME B30.2 and EN ISO 11148-6 standards; optional square drive adapters
