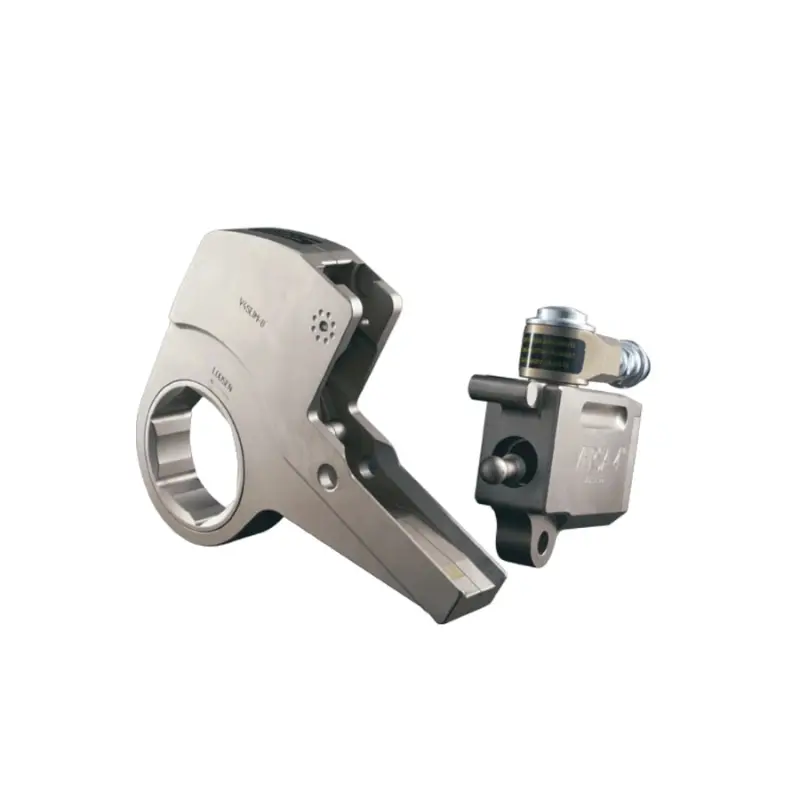

VERSA-30 Low Clearance Power Head, 36200 Ft-Lbs

Hytorc VERSA-30 Low Clearance Power Head is a high-capacity hydraulic torque wrench powerhead from the VERSA Series, engineered for demanding bolting tasks in low-clearance environments across oil & gas, power generation, construction, and heavy maintenance applications. This robust, low-profile design delivers up to 36,200 ft.-lbs. of torque with ±3% accuracy via a quick-change cartridge system for seamless link swaps, supporting efficient tightening/loosening with hydraulic pumps while prioritizing operator safety through 360° swivel hoses, auto-retract functionality, and corrosion-resistant construction.

• Model: VERSA-30 Low Clearance Power Head (high-torque configuration; compatible with VERSA30-LINK ratchet/hex cartridges)
• Torque Range: 5,220–36,200 ft.-lbs. (7,077–49,051 Nm); accuracy ±3%, repeatability ±1%
• Speed: 4–6 RPM under load (full cycle 20–30 seconds, pump-dependent)
• Drive Type: Quick-change cartridge system for low-clearance female hex/ratchet links (nut sizes 3-1/2"–6-1/2")
• Working Pressure: 1,500–10,000 PSI (104–690 bar); calibrated via pressure-torque conversion chart
• Weight: 46.71 lbs. (21.2 kg) total (with standard link; powerhead alone ~42 lbs.)
• Length: 11.5 in. (292 mm) overall (varies with cartridge/link); low-clearance head height 9.25 in. (235 mm)
• Side-to-Center Distance: 3.15 in. (80 mm) nominal; radius 1.0 in. (25 mm) for confined access
• Connectivity: Twin-line hydraulic hoses (up to 20 ft./6 m; 360° uniswivel coupler); compatible with HYTORC L-700, Z-Series electric/pneumatic pumps (ATEX options available)
• Display/Feedback: Analog pump gauge; visual stall (rotation stop); audible "click" for cycle reset/extension
• Programmable Configurations: Manual pressure sequencing (e.g., 3–4 low-pressure seats + final torque verification)
• Control System: Hydraulic single-piston ratchet drive with auto-retraction; closed-loop via pressure regulation
• Data Storage: N/A (analog; optional HYTORC Washer for digital cycle logging/traceability)
• Operator Feedback: Ergonomic overmold handles; adjustable reaction arm/block; low vibration (<3 m/s²); color-coded hoses
• Maintenance Features: Sealed design for >5,000 cycles; NLGI #2 grease lubrication; annual seal/hose inspection; 12-month warranty with loaner tools
• Additional Features: Anodized alloy steel/aluminum for corrosion resistance; hands-free with HYTORC Washer; exceeds EN/ISO 11148-6 and ASME B30.2 standards; optional square drive adapters
