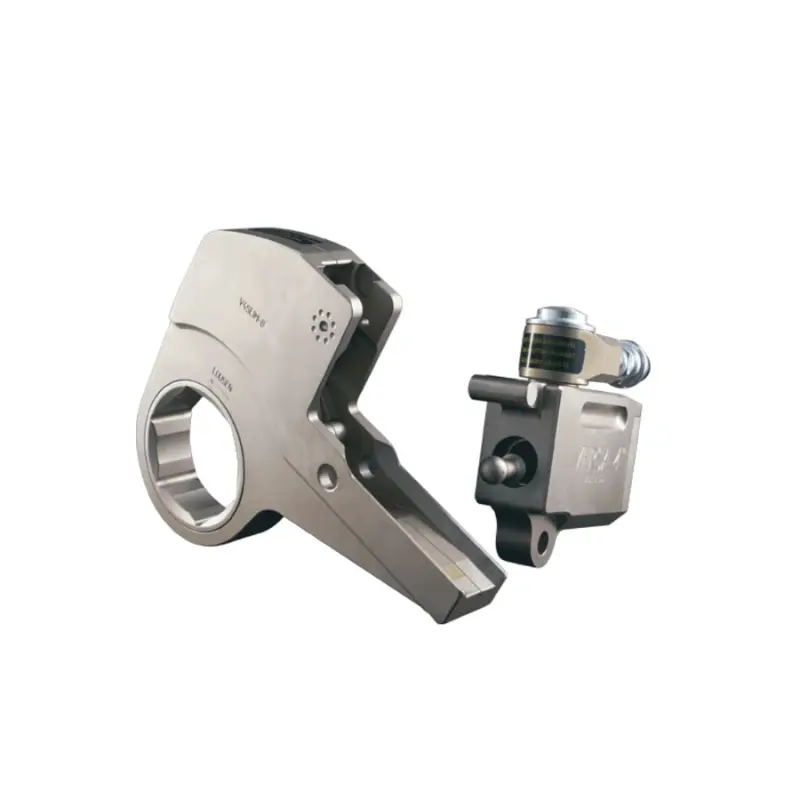

VERSA1-LINK VERSA-1 Series Ratchet Link

Hytorc VERSA1-LINK is an interchangeable low-clearance ratchet link for the VERSA-1 Series hydraulic torque wrench, engineered for precise bolting in confined spaces across industries like construction, oil & gas, and maintenance. This compact, durable component features a slim profile and simple 3-moving-part design for reliable operation, +/-3% torque accuracy, and easy integration with the VERSA powerhead, enabling repeatable tightening/loosening of fasteners with minimal downtime and enhanced safety via 360° uniswivel hose positioning.

• Model: VERSA1-LINK (VERSA-1 Series Ratchet Link, low-clearance hex configuration; sizes #1-#10 available)
• Torque Range: 140–1,000 ft.-lbs. (190–1,356 Nm); accuracy ±3%, repeatability +1/-1%
• Nut/Fastener Sizes: 7/8"–1 13/16" (22–46 mm) hex; compatible with standard impact sockets via square drive adapter
• Working Pressure: 10,000 PSI (700 bar) maximum; uses pressure-torque conversion charts for calibration (e.g., ~4,000 PSI for 1,265 ft.-lbs. on 1-1/4" bolt)
• Weight: 2.80 lbs. (1.27 kg) per link (tool weight varies with powerhead)
• Dimensions: Slim low-clearance profile (specific length ~6–8 in. depending on link size); narrow radius for tight spaces; includes long reaction block (reacts against adjacent nut/flange)
• Drive Type: Cartridge-style female hex with male hex adapter option; square drive conversion available
• Material/Construction: High-strength alloy steel; anodized for corrosion resistance; includes retaining pin and reaction arm/block
• Connectivity/Operation: Integrates with HYTORC hydraulic power packs (electric/pneumatic) via twin-line hoses (10,000 PSI rated); 360° uniswivel coupler; audible "click" for extension/reset cycles
• Programmable Configurations: N/A (manual pressure setting via pump gauge); supports multi-cycle tightening (3–4 initial cycles to seat, final for verification); loosening at full 10,000 PSI
• Control System: Hydraulic ratchet mechanism; closed-loop via pressure monitoring; auto-retraction on release; compatible with ATEX-certified components for explosive environments
• Data Storage: N/A (analog; traceability via pressure logs and torque charts)
• Operator Feedback: Visual stall indication (tool stops rotating); audible clicks for cycle completion; no digital display (relies on pump gauge)
• Maintenance Features: Lubricate with NLGI #2 molybdenum grease periodically; inspect seals/springs/hoses annually; free 12-month warranty with loaner tools; replace hoses every 3 years
• Additional Features: Hands-free operation with HYTORC Washer™; low-clearance design for deep nuts; no auto-pressure release or cycle counter; complies with EN/ISO safety standards (e.g., EN 11148-6); interchangeable for varying applications; optional reaction pad/alco arm for versatility
