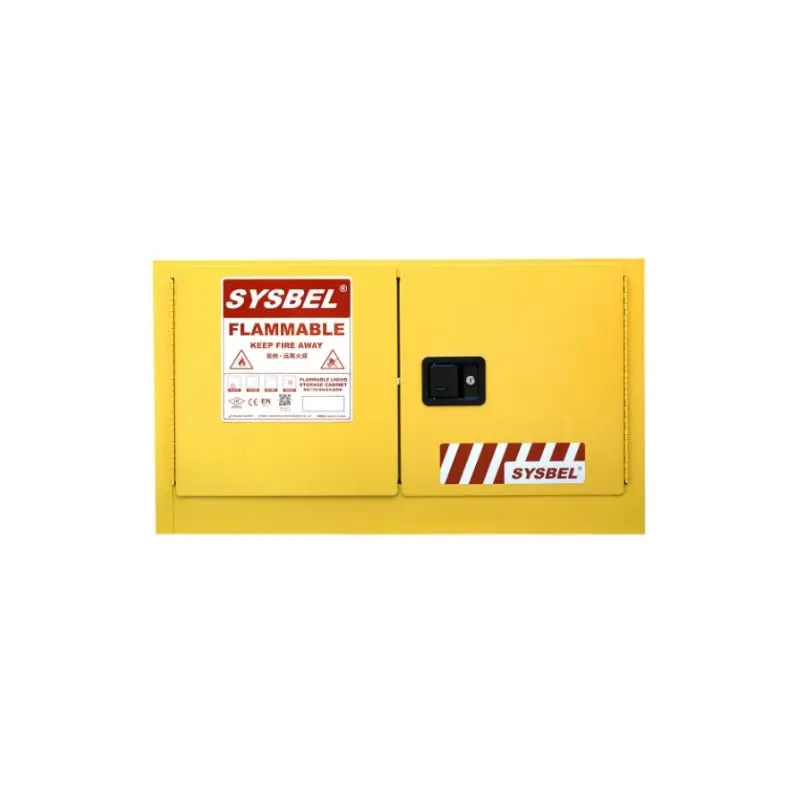

WA3810170 Piggyback Flammable Safety Cabinet, 17Gal/ 64L

WA3810170 Piggyback Flammable Safety Cabinet is a compact, fire-resistant storage solution designed for safe containment of flammable liquids in laboratories, workshops, and industrial settings. Constructed from 18-gauge double-wall steel with 38mm insulating air space, this piggyback cabinet features manual double doors, an adjustable shelf, and a leak-tight sump to securely hold up to 17 gallons of solvents, paints, or fuels. Optimized for stacking on top of standard 45-gallon cabinets to maximize vertical space, it ensures compliance with safety standards while reducing fire risks in space-constrained environments.

• Model Number: WA3810170
• Product Type: Piggyback Flammable Storage Cabinet
• Color: Yellow
• Material: 18-Gauge Double-Wall Steel (1.2 mm thick, fully welded)
• Dimensions (H x W x D): 61 cm x 109 cm x 46 cm (24 in x 42.9 in x 18.1 in)
• Capacity: 17 Gal / 64 L
• Shelf Load Capacity: 50 kg (110 lbs) per shelf
• Number of Shelves: 1 (adjustable)
• Bottom Sump Capacity: Leak-tight sump for spill containment
• Weight (Net): 59.3 kg (130.7 lbs)
• Overview: Fire-rated piggyback cabinet for storing flammable chemicals; double-wall construction with insulation for 15-minute fire resistance; ideal for stacking on larger cabinets in labs, workshops, or garages
• Key Features:
  • Fire resistance: 15-minute protection with 38 mm air space and fully welded seams for structural integrity
  • Spill containment: Leak-tight sump and spill-catcher shelves collect leaks to prevent secondary hazards
  • Durability: Powder-coated finish resists corrosion and wear; holds squareness for long-term use
  • Versatility: Manual double doors with 180° opening for easy access; grounding wire connection for static discharge
  • Safety: Three-point locking system; integral flame arrestors on vents; visible warning labels for flammables
  • Eco-Friendly: Promotes safe storage to reduce environmental risks from spills or fires
• Packaging: 1 Cabinet per Unit; Packing Dimensions (H x W x D): 75 cm x 116 cm x 52.5 cm (29.5 in x 45.7 in x 20.7 in); Gross Weight: 71 kg (156.5 lbs)
• Storage: Cool, dry place away from direct sunlight and extreme temperatures; indefinite shelf life under proper conditions
• Compliance: FM and CE approved; aligns with OSHA 29 CFR 1910.106, NFPA 30, and international flammable storage standards

This specification draws from standard data by manufacturers like Sysbel. For custom needs or bulk, contact supplier for testing or adjustments.
