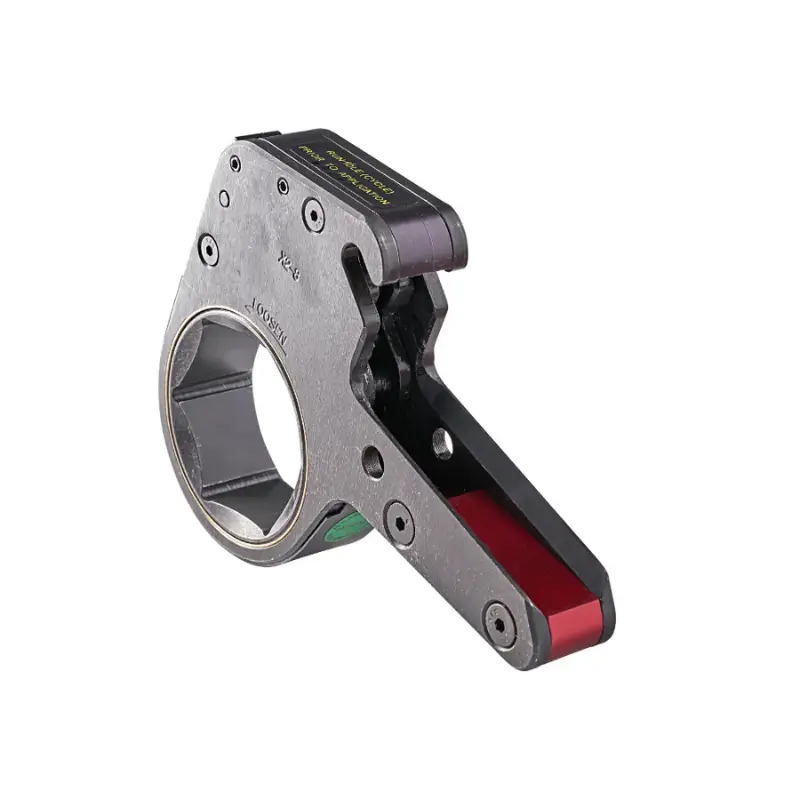

XLCT-14-LINK 14XLCT Series Ratchet Link

HYTORC 14XLCT Series Ratchet Link, also referred to as the HY-14XLCT, is part of the XLCT series of hydraulic torque wrenches, designed for low-clearance, high-torque bolting applications in industrial settings.

Model: 14XLCT

Type: Hydraulic Limited-Clearance Torque Wrench with Interchangeable Ratchet Link

Torque Range:

• Imperial: 2,010–13,400 ft-lbs
• Metric: 2,725–18,168 N·m

Drive Size:

• Hex Link Sizes: 2 3/4" to 4 5/8" (70–115 mm)
• Available in 6-point and 12-point hex links for versatility

Weight: 11.30 lbs (5.13 kg)

Dimensions:

• Radius (R): 1.96–3.66 in (49.78–92.96 mm)
• Length (L): 8.66 in (220 mm)
• Height (H): 8.03 in (204 mm)
• Width (W): 1.97 in (50 mm)

Accuracy: ±3% (certifiable through calibration traceable to NIST)

Features:

• Low-Clearance Design: Optimized for tight spaces, adept at handling protruding bolts and high-torque applications.
• Zero-Slip Ratchet: Equipped with a secondary pawl to prevent ratchet back-turning, ensuring powerful breakout and faster tightening.
• Lock-Up Release Lever: Allows easy pressure release after torque application for effortless tool removal (similar to MXT and STEALTH series).
• 360° x 360° Uni-Swivel Assembly: Provides flexible hose positioning for safe and convenient operation in confined spaces.
• Interchangeable Cartridges: Supports 6-point hex, 12-point hex, Allen drives, square drives, and open spanners for maximum adaptability.
• Optional Tool Retainer: Enables hands-free operation, reducing operator risk and enhancing safety.
• Quick-Change Ratchet Links: Allows tool-free swapping of link sizes in the field for efficient adjustments.
• Robust Construction: Signature red housing represents quality, durability, and reliability, with over 100,000 XLCT units in use globally since 1992.

Accessories:

• HYTORC Washer and Nut: Compatible for secure, hands-free bolting.
• ALCO Arm: Reaction arm for low-clearance hydraulic tools.
• HYTORC Nut Driver: Converts torque into tension, preventing galling.
• Reaction Plate Kits: Various reaction fixtures for diverse bolting needs.
• Hex Reducers and Socket Adaptors: Square and hex adapters for varying nut sizes (1/2" to 3 1/2", standard and custom).
• Heavy-Duty Case: Included for storage and portability.

Applications: Ideal for low-clearance, high-torque bolting in industries such as oil and gas, power generation, aerospace, and infrastructure (e.g., roller coasters, bridges, and heavy machinery).
