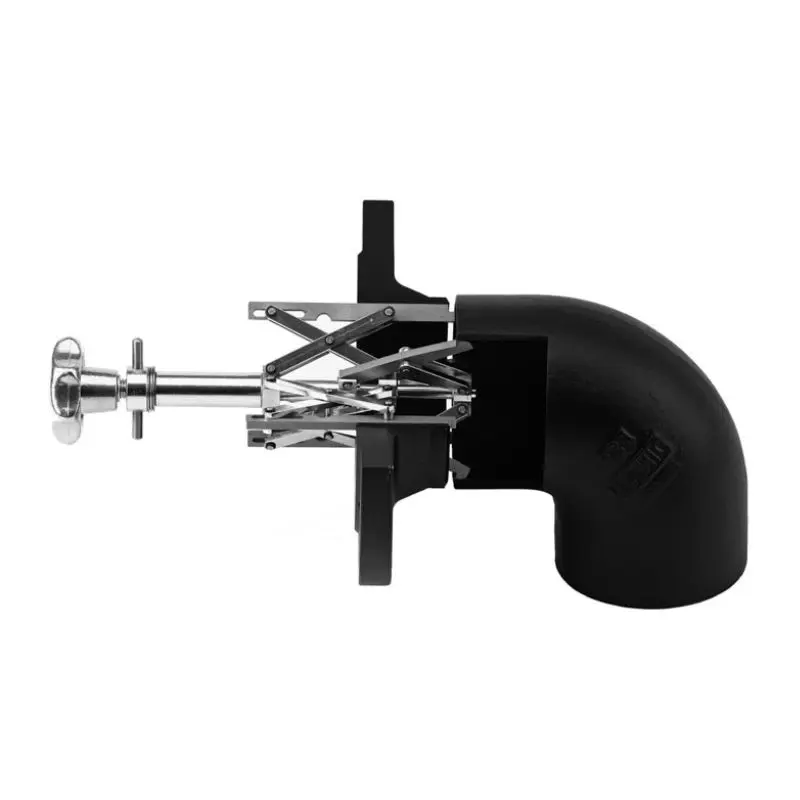

500-3 SS Elbow Spider Clamp - Series 500 Stainless Steel 6" - 12"/ 120Mm - 315Mm

Fit-Up Pro 500-3 SS Elbow Spider Clamp from Series 500 is a precision alignment tool designed for quick and efficient pipe fit-up in welding, fabrication, and industrial piping applications. Constructed from high-grade stainless steel components suitable for exotic materials, this elbow-specific spider clamp features two independent expanding clamps that enable coaxial alignment of flanges to elbows and pipe bends of varying diameters, ensuring accurate centering for pipes from 6" to 12" (120 mm to 315 mm) while keeping all areas accessible for welding.

• Model Number: 500-3 SS
• Product Type: Elbow Spider Clamp (Series 500)
• Color: Silver
• Material: Stainless Steel
• Clamping Range: 6" - 12" / 120 mm - 315 mm
• Weight: 21.16 lbs / 9.60 kg
• Overview: Specialist tool for aligning flanges to elbows and pipe bends; provides fast, repeatable alignment for varying diameters using independent lower (knob-operated) and upper (hand-bar operated) clamps; ideal for fabrication shops, construction sites, and maintenance operations
• Key Features:
  • Independent expanding clamps: Lower clamp with strong gripping feet secures inside the bend via knob tightening; upper clamp aligns flange via hand-bar for precise fit-up
  • Automatic diameter compensation: Ensures stable centering without additional adjustments
  • Quick alignment: Rapid setup and secure hold for complex configurations
  • Accessibility: Keeps all pipe surfaces exposed for welding or inspection
  • Durability: Corrosion-resistant stainless steel construction withstands harsh environments
  • Versatility: Suitable for elbows, pipe-bends, and exotic materials in a single operation
  • Safety: Reduces misalignment risks to enhance weld quality and operator efficiency
• Packaging: 1 Clamp per Unit; Compact box for easy storage and transport
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for welding alignment tools (e.g., ASME equivalents)
