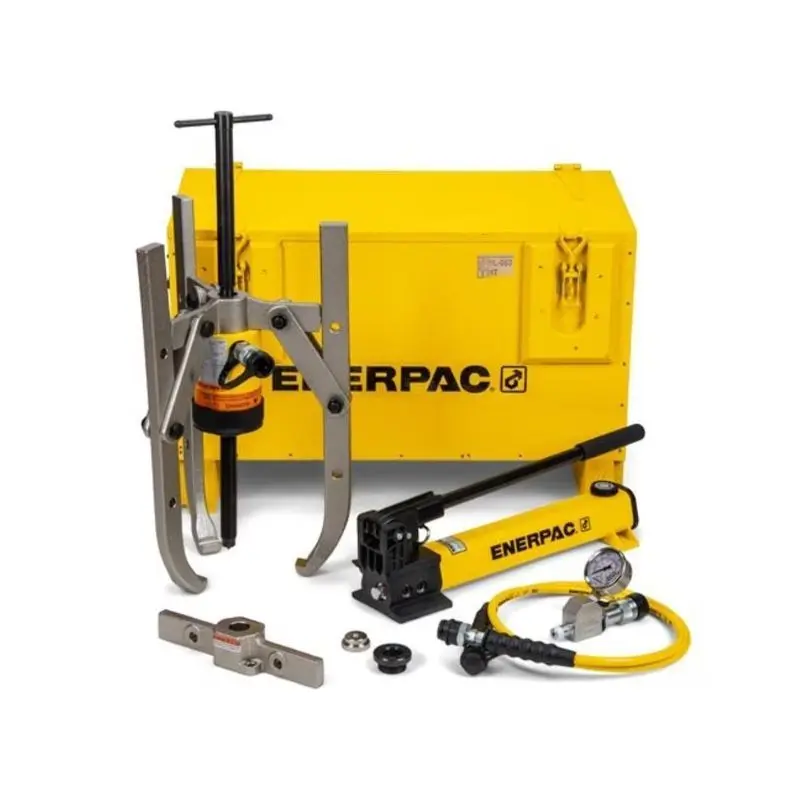

BHP261G, 12 Ton, Hydraulic Cross Bearing Puller Set with Hand Pump

Enerpac BHP261G 12 Ton Hydraulic Cross Bearing Puller Set with Hand Pump is a comprehensive hydraulic tool set designed for safe and efficient removal of cross bearings, bearing cups, and inner/outer race components in industrial maintenance and assembly applications. Featuring precise hydraulic control via the included hand pump and 12 ton hollow plunger cylinder for fast, controlled pulling up to 12 tons at 5,000 psi, this set includes a cross-bearing puller, bearing cup puller, bearing separator, hose, gauge, and wooden storage case for portable, one-person operation without external power. Ideal for heavy-duty tasks with a maximum reach of 570 mm and spread up to 345 mm, it ensures damage-free extraction using high-quality forged steel components, eliminating unsafe methods like hammering or prying.

• Model Number: BHP261G
• Product Type: Hydraulic Cross Bearing Puller Set with Hand Pump
• Color: Silver/Gray
• Material: Forged Steel with Hardened Components
• Capacity: 12 Ton (Imperial Tons; 106.8 kN nominal cylinder capacity; 6 Ton with attachments)
• Spread Range: 140 mm - 345 mm (5.51" - 13.58")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic hand pump operation)
• Power Pack: Included Hand Pump with RCH-202 Hollow Plunger Cylinder (2" stroke)
• Control System: Hydraulic with Hand Pump, Pressure Gauge, and Hose
• Weight (Net): 49 kg / 108 lbs
• Dimensions: Reach: 570 mm (22.44"), Spread: 140-345 mm (5.51-13.58"); Adjusting Screw: 1"-8 UNC
• Overview: Versatile hydraulic cross bearing puller set for precise, damage-free removal of bearings and races; ideal for industrial maintenance with portable hand pump power and complete accessories
• Key Features:
  • Precise hydraulic control allows fast, efficient, and safe pulling up to 5,000 psi (700 bar) without damaging components
  • High-quality forged steel components provide superior reliability and service life in demanding environments
  • Includes BHP262 cross-bearing puller, BHP280 bearing cup puller, bearing separator (BHP-280), RCH202 cylinder, P392 hand pump, HC7206C hose, GA45GC gauge, and wooden case for complete portability
  • Adjustable legs and speed crank for quick setup and contact before applying hydraulic force, with 2" cylinder stroke for efficient operation
  • Compatible with separate ordering of individual components for customized applications; safety-focused design reduces operator fatigue
