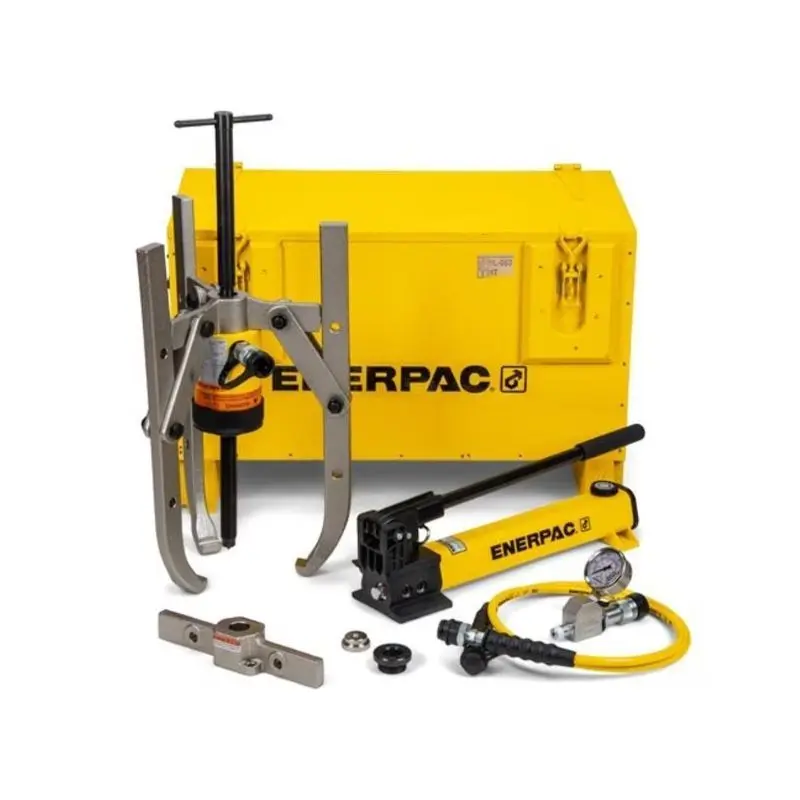

BHP561G, 25 Ton, Hydraulic Cross Bearing Puller Set with Hand Pump

Enerpac BHP561G 25 Ton Hydraulic Cross Bearing Puller Set with Hand Pump is a comprehensive hydraulic tool set designed for safe and efficient removal of cross bearings, bearing cups, and inner/outer race components in industrial maintenance and assembly applications. Featuring precise hydraulic control via the included P80 hand pump and RCH603 hollow plunger cylinder for fast, controlled pulling up to 25 tons at 5,000 psi, this set includes a BHP562 cross-bearing puller, BHP582 bearing cup puller, bearing separator, hose, gauge, and wooden storage case for portable, one-person operation without external power. Ideal for heavy-duty tasks with a maximum reach of 864 mm and spread up to 580 mm, it ensures damage-free extraction using high-quality forged steel components, eliminating unsafe methods like hammering or prying.

• Model Number: BHP561G
• Product Type: Hydraulic Cross Bearing Puller Set with Hand Pump
• Color: Silver/Gray
• Material: Forged Steel with Hardened Components
• Capacity: 25 Ton (Imperial Tons; 222 kN)
• Spread Range: 220 mm - 580 mm (8.66" - 22.83")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic hand pump operation)
• Power Pack: Included P80 Hand Pump with RCH603 Hollow Plunger Cylinder (3" stroke)
• Control System: Hydraulic with Hand Pump, Pressure Gauge, and Hose
• Weight (Net): 185 kg / 408 lbs
• Dimensions: Reach: 864 mm (34"), Spread: 220-580 mm (8.66-22.83"), Leg Length: 609 mm (23.98"), Adjusting Screw: 1-5/8"-5.5 UNS
• Overview: Versatile hydraulic cross bearing puller set for precise, damage-free removal of bearings and races; ideal for industrial maintenance with portable hand pump power and complete accessories
• Key Features:
  • Precise hydraulic control allows fast, efficient, and safe pulling up to 5,000 psi (700 bar) without damaging components
  • High-quality forged steel components provide superior reliability and service life in demanding environments
  • Includes BHP562 cross-bearing puller, BHP582 bearing cup puller, bearing separator (BHP-580), RCH603 cylinder, P80 hand pump, HC7206C hose, GA45GC gauge, and wooden case for complete portability
  • Adjustable legs and speed crank for quick setup and contact before applying hydraulic force, with 3" cylinder stroke for efficient operation
  • Compatible with separate ordering of individual components for customized applications; safety-focused design reduces operator fatigue
