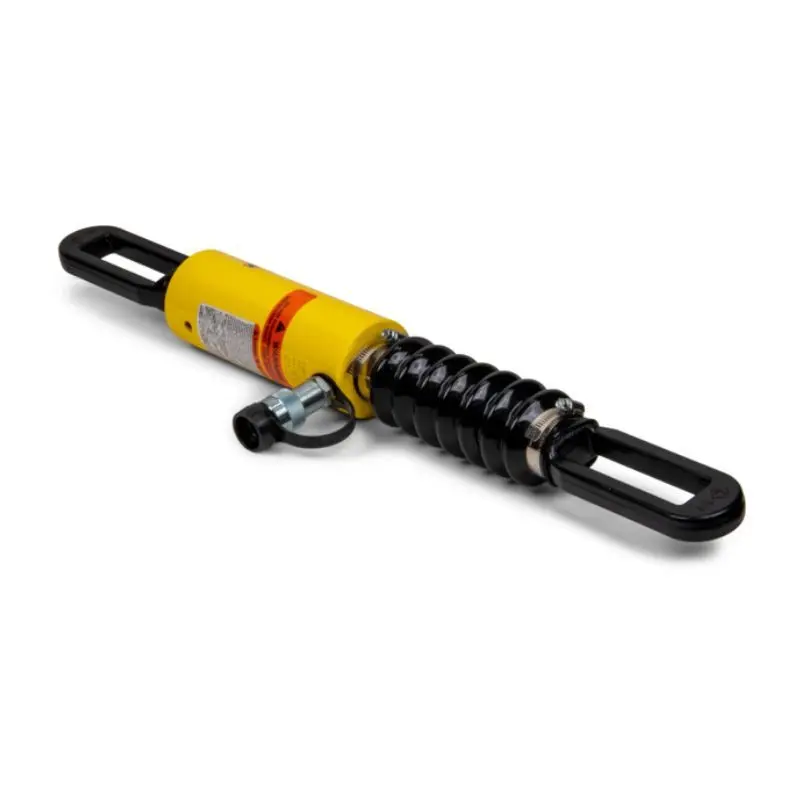

BRP106L 110 kN Capacity, 150 mm Stroke, Pull Hydraulic Cylinder

Enerpac BRP106L is a robust single-acting pull hydraulic cylinder designed for heavy-duty pulling applications in industrial maintenance, construction, and cable tensioning tasks. Delivering a 12 US ton (110 kN) retract capacity over a 150 mm stroke, this model features spring return for efficient retraction, operating at up to 10,000 psi with replaceable links or lugs for easy attachment, high-strength alloy steel construction for durability, and plunger blow-out protection for safety in demanding environments.

• Product Overview

  • Name: Enerpac BRP106L Single-Acting Pull Hydraulic Cylinder
  • Type: Single-acting, spring return solid plunger pull cylinder
  • Primary Applications: Cable tensioning, heavy pulling, and maintenance in industrial and construction setups
  • Force Output: 12 US tons (110 kN) retract capacity
  • Stroke: 150 mm (5.91 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 573 mm (22.56 in)

• Technical Specifications

  • Capacity (Retract): 12 US tons (110 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 150 mm (5.91 in)
  • Collapsed Height (A): 573 mm (22.56 in)
  • Extended Height (B): 723 mm (28.46 in)
  • Outside Diameter (D): 127 mm (5.00 in)
  • Bore Diameter (E): 54 mm (2.13 in)
  • Link Height (J): 130 mm (5.12 in)
  • Mounting Hole Diameter: 151 mm (5.94 in)
  • Effective Area (Retract): 15.7 cm² (2.43 in²)
  • Oil Capacity (Retract): 235 cm³ (14.35 in³)
  • Weight: 22 kg (48 lb)
  • Series: BRP Series Pull Cylinders

• Key Features

  • Replaceable links or lugs for easy attachment to pulling applications
  • Plunger blow-out protection to prevent damage from over-pressurization
  • High-strength alloy steel construction for durability under heavy loads
  • Corrosion-resistant hard chrome-plated plunger for extended service life
  • Single-acting spring return design for efficient operation
  • Weather-protected design for reliability in harsh conditions
  • Certified for ASME B30.1 standards ensuring safety and compliance
  • Low-friction seals for smooth performance and minimal maintenance
