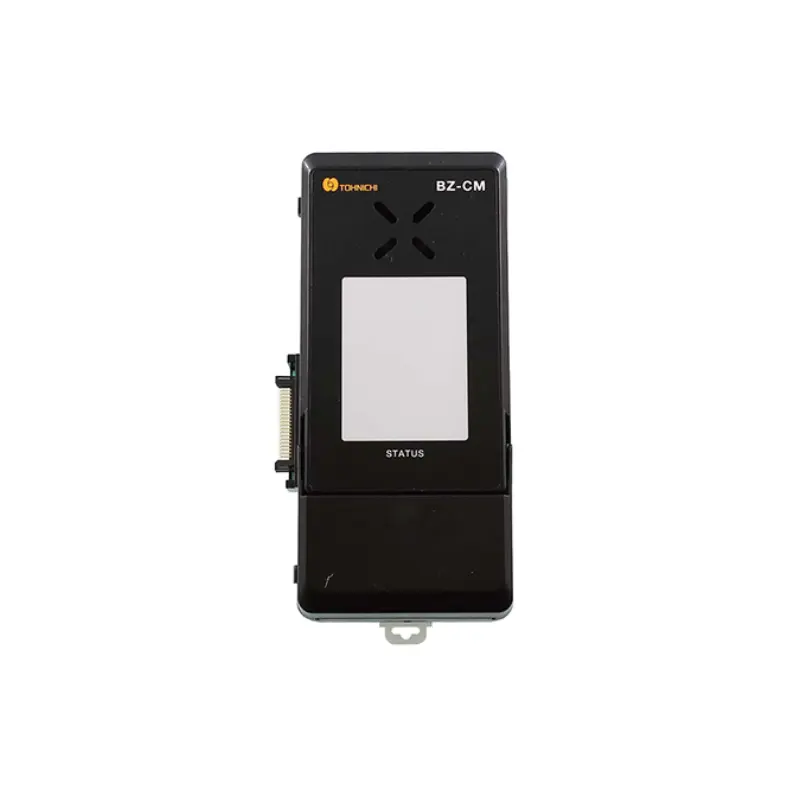

BZ-CM Buzzer Expansion Box

Tohnichi BZ-CM is a high-volume buzzer expansion box designed to enhance audible and visual alerts in torque error-proofing systems, particularly for the R-CM Wireless Receiver with Interchangeable Modules. Featuring a powerful 98 dB buzzer and large LED indicators with 6.4 times the surface area of standard R-CM LEDs, this accessory ensures judgment results (pass/fail) are clearly recognizable from a distance in noisy industrial environments like assembly lines and quality control stations. Mountable on 35mm DIN rails for easy integration, it connects seamlessly to R-CM to amplify alerts, reducing errors and improving operator response times without adding significant bulk or complexity.

Key Performance Specifications

• Buzzer Volume: 98 dB (enhanced from R-CM's 75 dB)
• LED Surface Area: 6.4 times that of R-CM pass/fail LEDs
• Alert Types: Pass/Fail judgment signals (audible and visual)
• Compatibility: R-CM Wireless Receiver with Interchangeable Modules
• Power Supply: Supplied via R-CM connection (no separate power required)

Physical and Environmental Specifications

• Dimensions: Compact DIN rail-compatible profile (fits alongside R-CM and IO-CM; exact: 100 mm W x 80 mm H x 60 mm D)
• Weight: 0.3 kg (0.66 lbs)
• Mounting: 35 mm DIN rail (standard accessory clip)
• Operating Temperature: 32°F to 104°F (0°C to 40°C); suitable for industrial environments
• Connections: Direct expansion port plug-in to R-CM; cable-free integration
• Storage Conditions: Dry environment to prevent corrosion; shelf life indefinite

Key Features

• High-Volume Buzzer: 98 dB output ensures alerts are audible over ambient factory noise, improving response in high-volume production areas
• Expanded LED Indicators: 6.4x larger surface area for superior visual confirmation of pass/fail status, even from remote distances
• Plug-and-Play Setup: Effortless connection to R-CM without tools or additional wiring, enabling quick field deployment
• DIN Rail Versatility: Secure mounting on standard 35 mm rails for organized panel integration with other modules like IO-CM
• Error-Proofing Reliability: Synchronizes with R-CM judgments to prevent missed signals, enhancing overall system traceability and safety
• Applications: Essential accessory for wireless torque verification in automotive assembly, electronics manufacturing, and general quality control; ideal for expanding alert capabilities in error-proofing workflows
