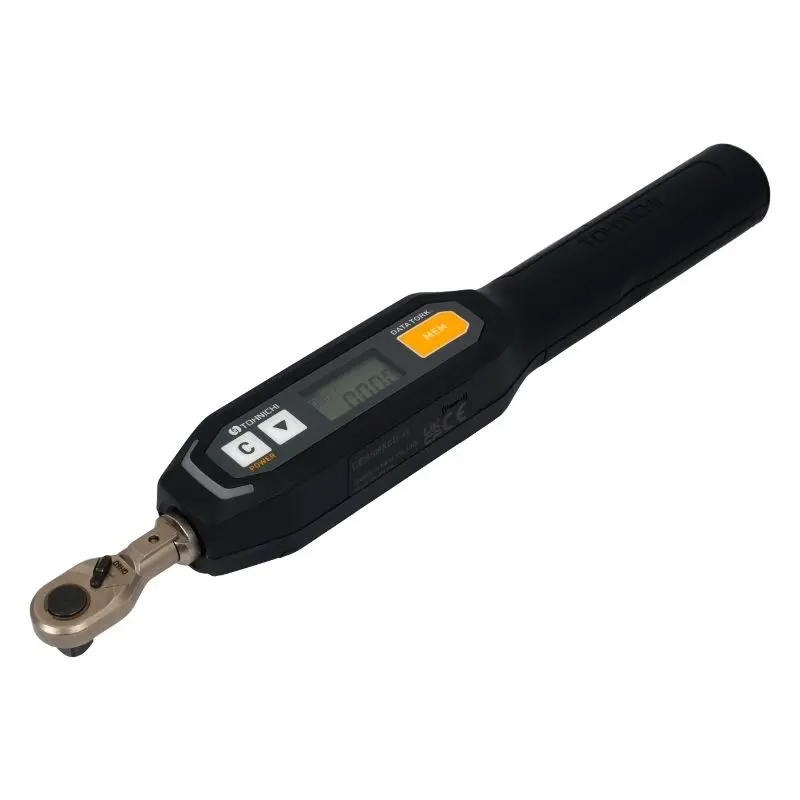

CES5NX6D-G CES, Digital Torque Wrench, 6D, 0.5-5 N.m

Tohnichi CES5NX6D-G is a high-precision digital indicating torque wrench engineered for quality inspections, precise torque verification, and controlled tightening in demanding assembly environments such as electronics manufacturing, automotive component installation, and precision instrumentation. Delivering accurate measurements from 0.5 to 5 N·m via a 1/4" square drive with interchangeable QH6D ratchet head, this manual tool features a digital LCD display for real-time and peak torque readouts, data memory for up to 1,000 measurements with USB output, and judgment functions for immediate pass/fail feedback. Ultra-lightweight and ergonomic with a miniaturized aluminum body for access in confined spaces, it supports bi-directional operation (clockwise and counterclockwise) for versatile use in tightening and loosening tasks, promoting operator efficiency and reducing the risk of over-torquing in ultra-low-force applications.

Key Performance Specifications

• Torque Range: 0.5 - 5 N·m (4.4 - 44.3 in-lbs / 0.37 - 3.7 ft-lbs)
• Graduation: 0.01 N·m
• Accuracy: ±2% (0.50–0.99 N·m); ±1% (1.00–5.00 N·m)
• Drive Size: 1/4" Square with QH6D Ratchet Head
• Loading Direction: Bi-directional (CW and CCW)

Physical and Environmental Specifications

• Overall Length: 197.5 mm (7.78")
• Weight: 0.15 kg (0.33 lbs) [body]; approx. 0.40 kg (0.88 lbs) with head
• Handle Diameter: Approximately 18 mm (ergonomic for low-torque control)
• Operating Temperature: 32°F to 104°F (0°C to 40°C); suitable for standard workshop conditions
• Battery Life: Ni-MH rechargeable; approx. 20 hours continuous use
• Storage Conditions: Dry environment to prevent corrosion; calibration recommended annually

Key Features

• Digital Torque Display: Real-time LCD readout with RUN/peak modes for precise monitoring, including over-torque alarm at 105% capacity
• Data Memory & Output: Stores up to 1,000 measurements (with date/time) via USB for easy traceability and Excel integration
• Judgment & Alerts: Buzzer and LED for immediate pass/fail on set limits, with OK/NG based on torque thresholds and direction
• Ergonomic Aluminum Body: Miniaturized design for narrow spaces, with auto zero function and interchangeable heads for versatility
• Angle Measurement Option: Enables torque + angle control (0–999°) with ±2° accuracy for advanced joint analysis (via settings)
• Applications: Optimized for micro-fastener tightening and inspection in electronics, aerospace, medical devices, and general precision assembly; excels in torque auditing and compliance verification
