CUSP50 550 kN Capacity, 10 mm Stroke, High Tonnage Ultra Flat Hydraulic Cylinder

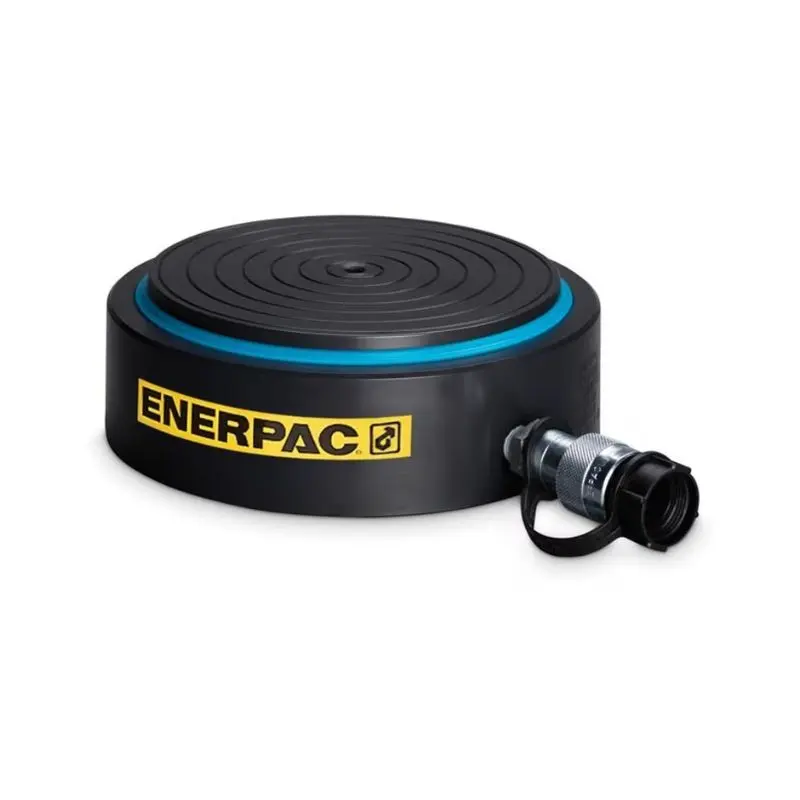

Enerpac CUSP50 is a robust single-acting high tonnage ultra flat hydraulic cylinder designed for heavy-duty lifting in confined spaces during industrial maintenance, construction, and precise load positioning tasks. Delivering a 62 US ton (550 kN) advance capacity over a 10 mm stroke, this model ensures even load distribution with an integrated tilting function up to 4 degrees, operating at up to 10,150 psi with up to 4% side-load resistance, nitrocarburized surfaces for cyclic wear, and protection for reliability in harsh environments.

• Product Overview

  • Name: Enerpac CUSP50 Single-Acting High Tonnage Ultra Flat Hydraulic Cylinder
  • Type: Single-acting, gravity return pancake cylinder with tilting plunger
  • Primary Applications: Heavy lifting in tight spaces, load leveling, and maintenance in industrial and construction setups
  • Force Output: 62 US tons (550 kN) advance capacity
  • Stroke: 10 mm (0.39 in)
  • Retraction Mechanism: Gravity return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 35.5 mm (1.40 in)

• Technical Specifications

  • Capacity (Advance): 62 US tons (550 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 10 mm (0.39 in)
  • Collapsed Height (A): 35.5 mm (1.40 in)
  • Extended Height (B): 41.5 mm (1.63 in)
  • Outside Diameter (D): 72 mm (2.83 in)
  • Effective Area (Advance): 78.5 cm² (12.17 in²)
  • Oil Capacity (Advance): 8.3 cm³ (0.51 in³)
  • Weight: 1 kg (2.2 lb)
  • Series: CUSP Series High Tonnage Cylinders

• Key Features

  • Integrated tilting plunger up to +/- 4 degrees for even load distribution
  • Up to 4% side-load resistance over full stroke for stability under off-center loads
  • Extremely low collapsed height ideal for confined space applications
  • Nitrocarburized surfaces resist side-loading and cyclic wear
  • Red line indicator provides visual maximum stroke limitation
  • Weather-protected design, inside and out, for harsh conditions
  • No stop ring; requires solid lifting surface to prevent damage
  • AR630 coupler including dustcap for easy connection
  • Includes tilting saddle; use HB7206 hose with AH630 coupler for pump connection
