CUSP750 7527 kN Capacity, 10 mm Stroke, High Tonnage Ultra Flat Hydraulic Cylinder

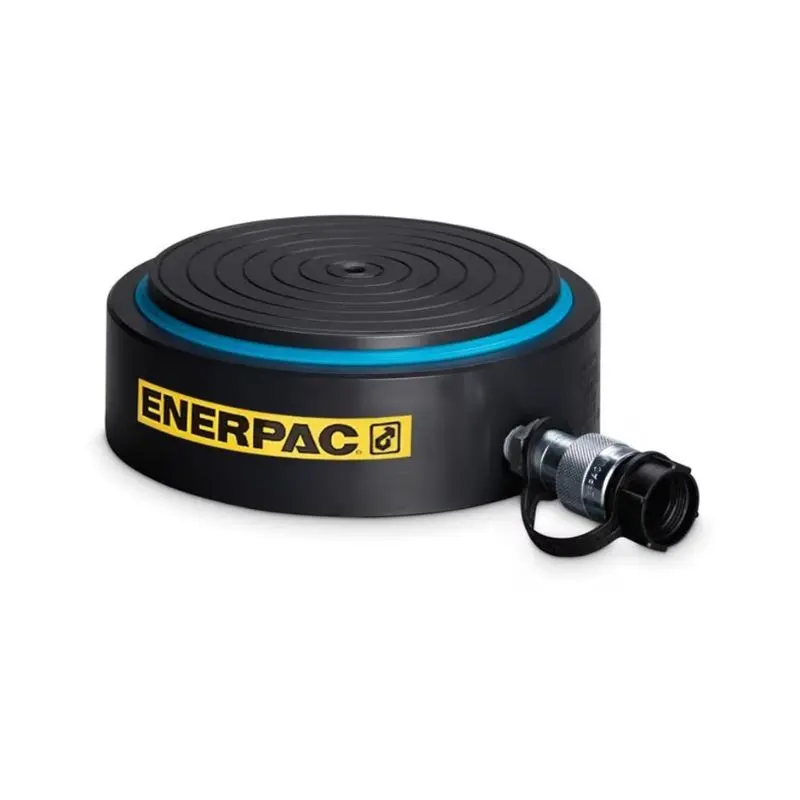

Enerpac CUSP750 is a robust single-acting high tonnage ultra flat hydraulic cylinder designed for heavy-duty lifting in confined spaces during industrial maintenance, construction, and precise load positioning tasks. Delivering an 846 US ton (7527 kN) advance capacity over a 10 mm stroke, this model ensures even load distribution with an integrated tilting function up to 4 degrees, operating at up to 10,150 psi with 4% side-load resistance, nitrocarburized surfaces for cyclic wear, and protection for reliability in harsh environments.

• Product Overview

  • Name: Enerpac CUSP750 Single-Acting High Tonnage Ultra Flat Hydraulic Cylinder
  • Type: Single-acting, gravity return pancake cylinder with tilting plunger
  • Primary Applications: Heavy lifting in tight spaces, load leveling, and maintenance in industrial and construction setups
  • Force Output: 846 US tons (7527 kN) advance capacity
  • Stroke: 10 mm (0.39 in) (tilted)
  • Retraction Mechanism: Gravity return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 93.5 mm (3.68 in)

• Technical Specifications

  • Capacity (Advance): 846 US tons (7527 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 10 mm (0.39 in)
  • Collapsed Height (A): 93.5 mm (3.68 in)
  • Extended Height (B): 103.5 mm (4.07 in)
  • Outside Diameter (D): 432 mm (17.01 in)
  • Bore Diameter (E): 368 mm (14.49 in)
  • Effective Area (Advance): 1075 cm² (166.6 in²)
  • Oil Capacity (Advance): 107 cm³ (6.53 in³)
  • Weight: 105 kg (231 lb)
  • Series: CUSP Series High Tonnage Cylinders

• Key Features

  • Integrated tilting plunger up to +/- 4 degrees for even load distribution
  • 4% side-load resistance over full stroke for stability under off-center loads
  • Extremely low collapsed height ideal for confined space applications
  • Nitrocarburized surfaces resist side-loading and cyclic wear
  • Red Line indicator provides visual maximum stroke limitation
  • Weather-protected design, inside and out, for harsh conditions
  • Replaceable bearings support the plunger throughout the stroke
  • Certified lifting eyes for secure handling and fixturing
  • Includes tilting saddle; no stop ring, requires solid lifting surface
  • Proven design for over-pressurization protection and durability
