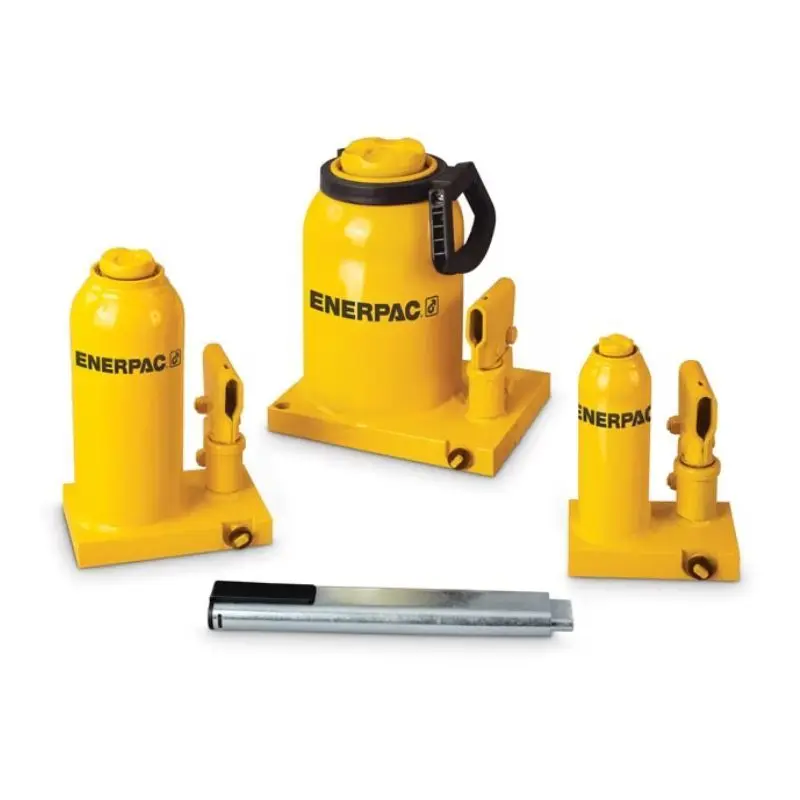

GBJ002A 19,6 kN, 105 mm Stroke, Hydraulic Industrial Bottle Jack

Enerpac GBJ002A is a robust single-acting hydraulic industrial bottle jack designed for heavy-duty lifting in industrial maintenance, construction, and vehicle positioning tasks. Delivering a 2 US ton (19.6 kN) capacity over a 105 mm stroke, this model features a safety relief valve and automatic by-pass port for secure operation, with a compact low-profile design for reliability in demanding environments.

• Product Overview

  • Name: Enerpac GBJ002A Hydraulic Industrial Bottle Jack
  • Type: Single-acting, hand-pumped bottle jack
  • Primary Applications: Heavy lifting, vehicle maintenance, and industrial setups
  • Force Output: 2 US tons (19.6 kN) capacity
  • Stroke: 105 mm (4.13 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 700 bar (10,150 psi)
  • Collapsed Height: 168 mm (6.61 in)

• Technical Specifications

  • Capacity: 2 US tons (19.6 kN)
  • Maximum Operating Pressure: 700 bar (10,150 psi)
  • Stroke: 105 mm (4.13 in)
  • Collapsed Height: 168 mm (6.61 in)
  • Extended Height: 338 mm (13.31 in)
  • Plunger Diameter: 25 mm (0.98 in)
  • Screw Extension: 65 mm (2.56 in)
  • Base Dimensions (LxW): 96 x 62 mm (3.78 x 2.44 in)
  • Oil Capacity: 90 cm³ (3.04 oz)
  • Weight: 3.6 kg (7.9 lb)
  • Series: GBJ Series Hydraulic Bottle Jacks

• Key Features

  • Safety relief valve to prevent over-pressurization and ensure safe load limits
  • Automatic by-pass port for controlled lowering and added security
  • High-strength beam and pump linkage for durability under heavy loads
  • Compact, low-profile design ideal for use in tight spaces
  • Hardened plunger and base for extended service life and wear resistance
  • Swiveling pump for ease of use and improved ergonomics
  • Telescopic handle stores in base for portability
  • Meets ANSI/PLM standards for quality and safety compliance
