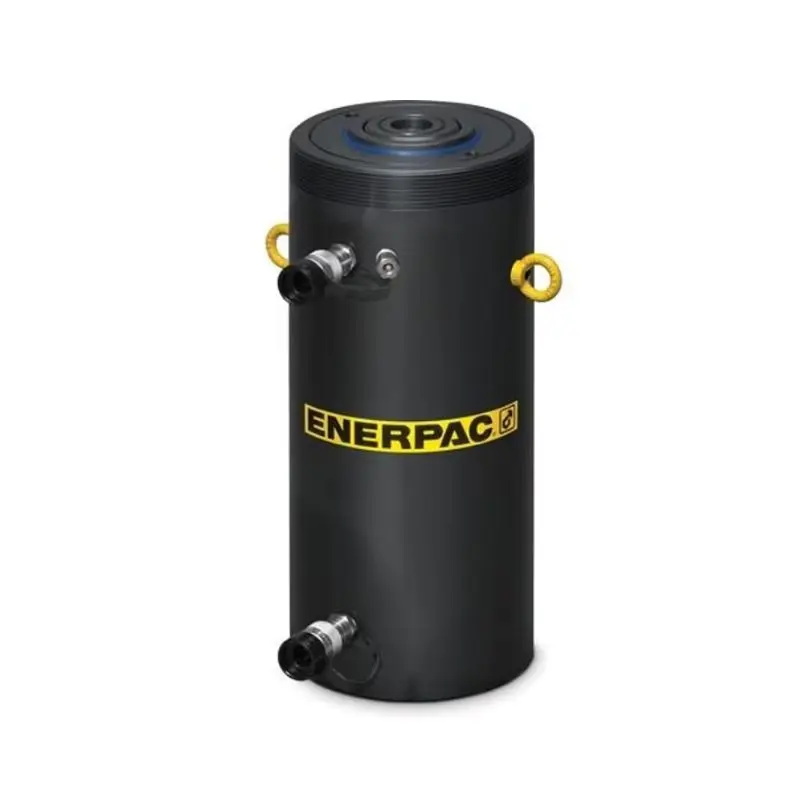

HCR1506 1497 kN Capacity, 150 mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

Enerpac HCR1506 is a robust double-acting high tonnage hydraulic cylinder designed for heavy-duty pushing and pulling in industrial maintenance, construction, and lifting tasks. Delivering a 168-ton (1497 kN) advance capacity over a 150 mm stroke, this model ensures fast hydraulic retraction independent of hose length, operating at up to 10,000 psi with 10% side-load resistance, hardened surfaces for cyclic wear, and weather protection for reliability in harsh environments.

• Product Overview
  • Name: Enerpac HCR1506 Double-Acting High Tonnage Hydraulic Cylinder
  • Type: Double-acting, hydraulic return solid plunger cylinder
  • Primary Applications: Heavy lifting, pushing, pulling, and maintenance in industrial and construction setups
  • Force Output: 168 tons (1497 kN) advance capacity; 80 tons (712 kN) retract capacity
  • Stroke: 150 mm (5.91 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 320 mm (12.6 in)
• Technical Specifications
  • Capacity (Advance): 168 tons (1497 kN)
  • Capacity (Retract): 80 tons (712 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 150 mm (5.91 in)
  • Collapsed Height (A): 320 mm (12.6 in)
  • Extended Height (B): 470 mm (18.5 in)
  • Outside Diameter (D): 215 mm (8.46 in)
  • Bore Diameter (E): 165 mm (6.5 in)
  • Plunger Diameter (F): 120 mm (4.72 in)
  • Effective Area (Advance): 213.9 cm² (33.15 in²)
  • Effective Area (Retract): 100.6 cm² (15.59 in²)
  • Oil Capacity (Advance): 3,210 cm³ (195.8 in³)
  • Oil Capacity (Retract): 1,509 cm³ (92.1 in³)
  • Weight: 78 kg (172 lbs)
  • Series: HCR Series High Tonnage Cylinders
• Key Features
  • Double-acting operation for fast retraction regardless of hose length
  • 10% side-load resistance over full stroke for stability under off-center loads
  • Hardened surfaces resist side-loading and cyclic wear
  • Weather-protected design, inside and out, for harsh conditions
  • Grooved and threaded plunger for easy tilt saddle mounting
  • Built-in relief valves prevent over-pressurization
  • Collar and base threads for secure fixturing
  • Includes CR-400 couplers and dust caps
