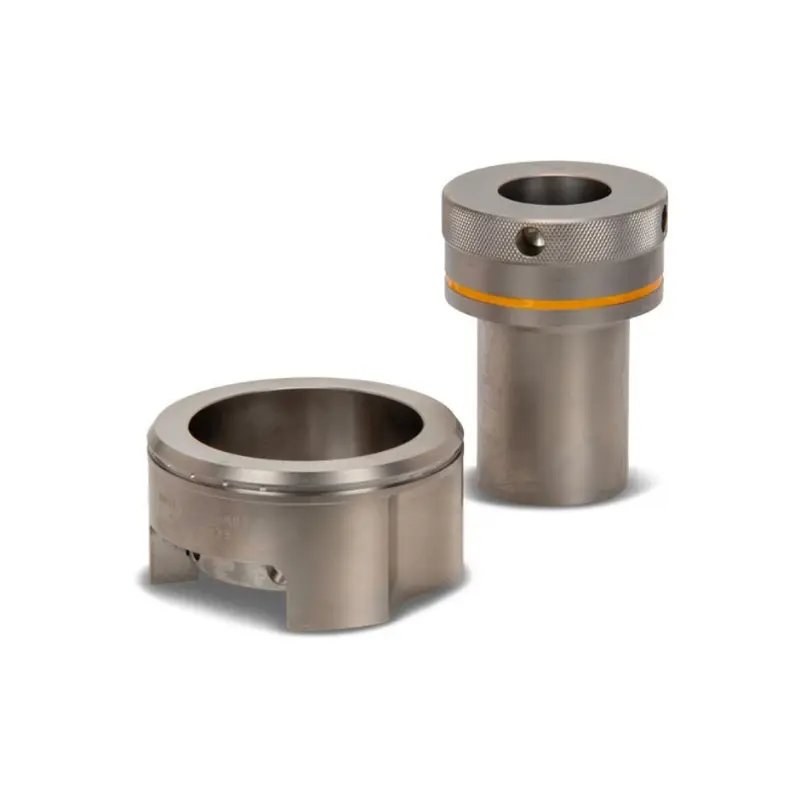

HM02BPMNRS02025, HM02 Tensioner Adaptor and Bridge Kit, M20 x 2,5 Thread Size

Enerpac HM02BPMNRS02025 is a specialized adapter and bridge kit for the HM02LC HydraMax hydraulic topside bolt tensioner load cell, tailored for M20 x 2.5 thread sizes in high-load bolting applications. This kit facilitates secure, precise tensioning on large-diameter flanges compliant with ANSI, API, and Norsok L005 standards, featuring a quick-release bridge for fast setup, misalignment compensation, and robust construction to support up to 200 kN loads, making it essential for efficient maintenance in oil & gas, power generation, and heavy industrial environments.

• Model: HM02BPMNRS02025 (HM02 Tensioner Adapter and Bridge Kit)
• Thread Size: M20 x 2.5
• Maximum Load Capacity: 200 kN
• Load Cell Reference: HM02LC
• Compatibility: HM02LC load cell; suitable for ANSI, API, and Norsok L005 compact flanges; bolt range M20 equivalent
• Weight: 3.2 kg (7.1 lb.)
• Materials: High-strength alloy steel with corrosion-resistant coating for durability in harsh environments
• Features: Quick-release bridge for tool-free assembly/disassembly; adjustable for ±5° misalignment; captive socket to prevent dropped parts; visible stroke indication; over-stroke relief valve integration
• Dimensions (Typical with Bridge): Overall height ~280 mm; bridge width varies by flange (customizable); reaction arm length optimized for low clearance
• Operating Pressure: Up to 1500 bar (21,750 psi) when paired with compatible tensioner
• Maintenance: Self-energizing seals; annual inspection of seals and fittings recommended; compliant with Machine Directive 2006/42/EC and EN-ISO standards
• Additional Notes: Sold as a complete kit including adapters, bridge, and fasteners; ATEX options available for hazardous areas
