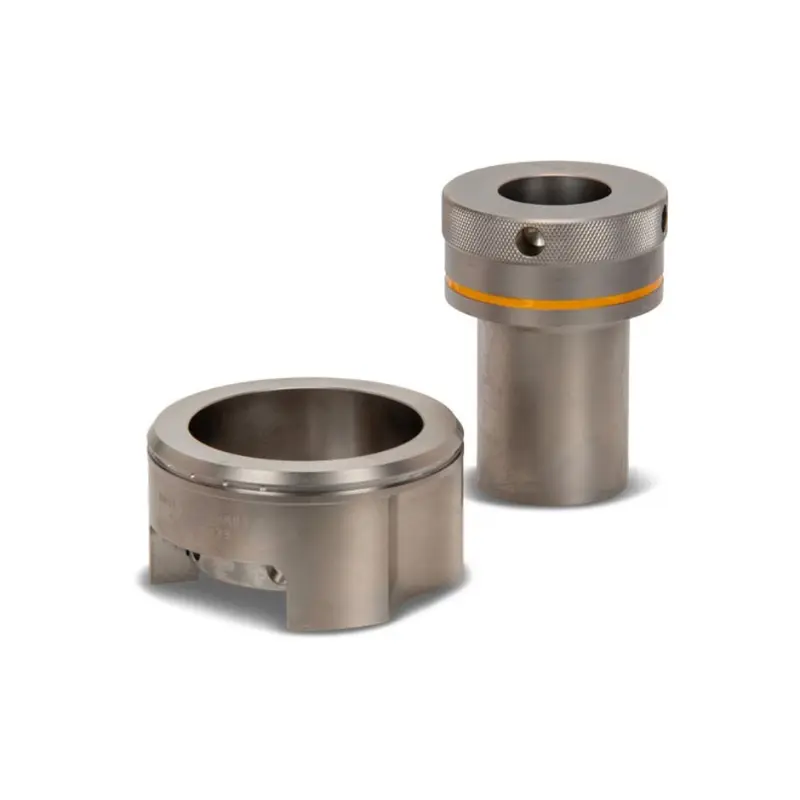

HM14BPMNRS08060, HM14 Tensioner Adaptor and Bridge Kit, M80 x 6 Thread Size

Enerpac HM14BPMNRS08060 is a specialized adapter and bridge kit for the HM14LC HydraMax hydraulic topside bolt tensioner load cell, tailored for M80 x 6 thread sizes in high-load bolting applications. This kit facilitates secure, precise tensioning on large-diameter flanges compliant with ANSI, API, and Norsok L005 standards, featuring a quick-release bridge for fast setup, misalignment compensation, and robust construction to support up to 3517 kN loads, making it essential for efficient maintenance in oil & gas, power generation, and heavy industrial environments.

• Model: HM14BPMNRS08060 (HM14 Tensioner Adapter and Bridge Kit)
• Thread Size: M80 x 6
• Maximum Load Capacity: 3517 kN
• Load Cell Reference: HM14LC
• Compatibility: HM14LC load cell; suitable for ANSI, API, and Norsok L005 compact flanges; bolt range M76–M80 equivalent
• Weight: 28 kg (62 lb.)
• Materials: High-strength alloy steel with corrosion-resistant coating for durability in harsh environments
• Features: Quick-release bridge for tool-free assembly/disassembly; adjustable for ±5° misalignment; captive socket to prevent dropped parts; visible stroke indication; over-stroke relief valve integration
• Dimensions (Typical with Bridge): Overall height ~380 mm; bridge width varies by flange (customizable); reaction arm length optimized for low clearance
• Operating Pressure: Up to 1500 bar (21,750 psi) when paired with compatible tensioner
• Maintenance: Self-energizing seals; annual inspection of seals and fittings recommended; compliant with Machine Directive 2006/42/EC and EN-ISO standards
• Additional Notes: Sold as a complete kit including adapters, bridge, and fasteners; ATEX options available for hazardous areas
