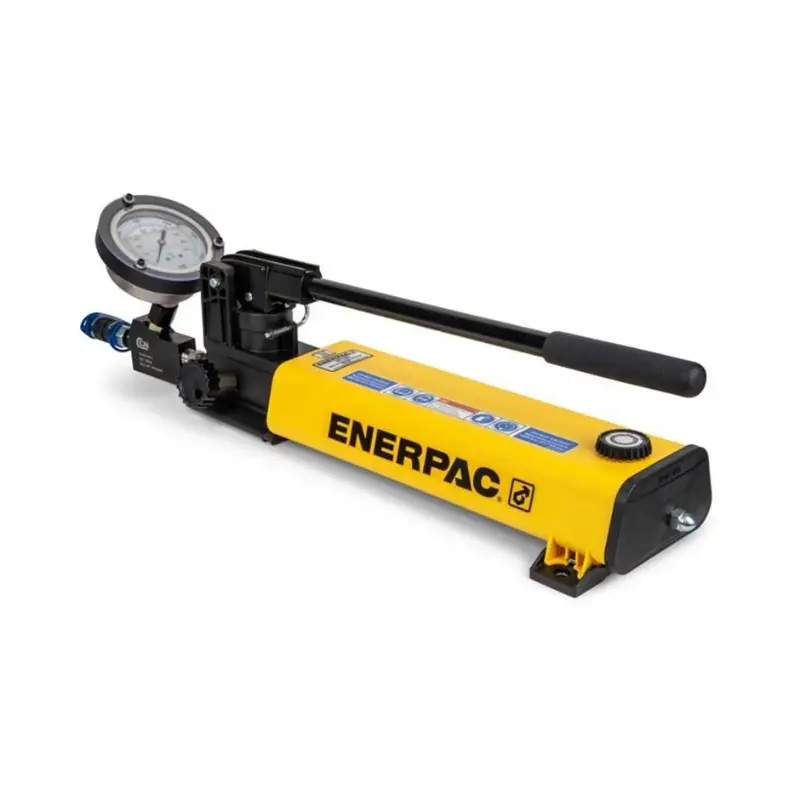

HPT1500, Two Speed, High Pressure Hydraulic Hand Pump with Gauge, 1500 bar

Enerpac HPT1500 is a robust, two-speed hydraulic hand pump with an integrated gauge, optimized for high-precision bolt tensioning and industrial maintenance tasks requiring up to 1500 bar pressure. This lightweight, portable tool features ergonomic handles, a large reservoir for extended operation, and efficient flow rates to reduce cycle times, making it ideal for single-acting cylinders in demanding sectors like oil & gas, construction, and pipelines, with built-in relief valve protection for enhanced safety.

• Model: HPT1500 (Two-Speed Hydraulic Hand Pump with Gauge)
• Maximum Operating Pressure: 1500 bar (21,750 psi)
• Relief Valve Setting: 1500 bar (21,750 psi)
• Pressure Rating 1st Stage: 14 bar (200 psi)
• Pressure Rating 2nd Stage: 1500 bar (21,750 psi)
• Reservoir Capacity: 2540 cm³ (155 in³)
• Usable Oil Capacity: 2540 cm³ (155 in³)
• Oil Displacement per Stroke: 16 cm³ (0.99 in³) at 1st stage; 0.6 cm³ (0.037 in³) at 2nd stage
• Flow at 10,000 psi: 0.037–0.99 in³/stroke (0.6–16 cm³/stroke)
• Valve Function: 4-way (advance/hold/retract)
• Cylinder Ports: 3/8" NPTF
• Weight: 10 kg (22 lb)
• Dimensions: Length: 470 mm (18.5 in.); Width: 140 mm (5.5 in.); Height: 200 mm (7.9 in.)
• Handle Effort: Low-effort ergonomic design for reduced operator fatigue
• Additional Features: Integrated pressure gauge; compatible with GT-series bolting tools; ultra-high-pressure fittings/hoses required; CE-marked for safety compliance
