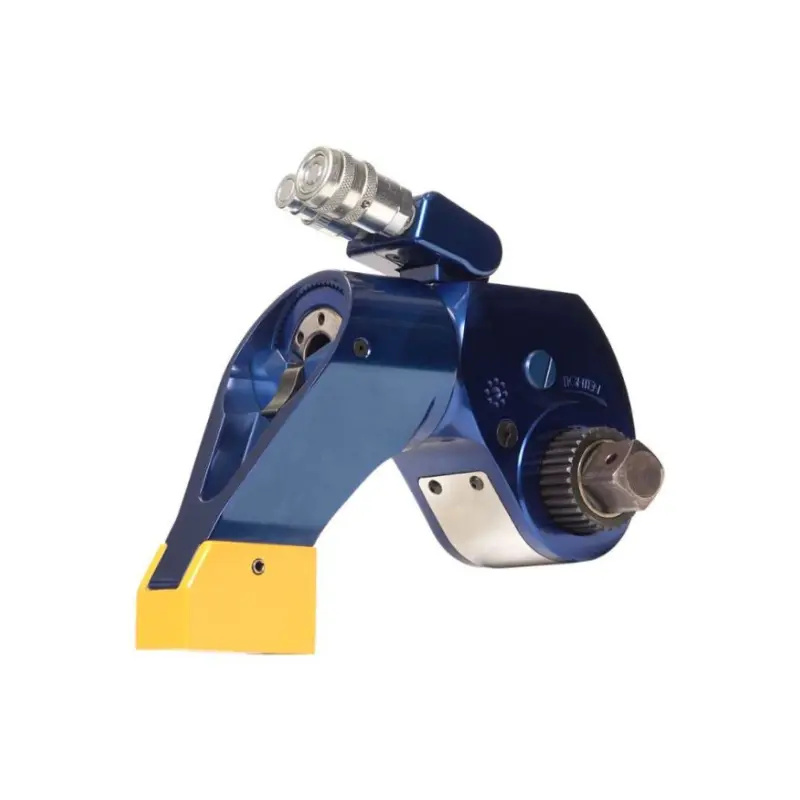

HY-1MXTP 3/4" Sq Dr Torque Wrench, 1359 Ft-Lbs

HYTORC HY-1MXTP is a square drive hydraulic torque wrench from the MXT+ series, engineered for precise high-torque bolting in demanding industrial environments like construction, maintenance, and petrochemical operations. This 3/4" square drive model provides up to 1,359 ft-lbs of torque with ±3% accuracy, powered by a hydraulic pump system up to 10,000 PSI for reliable efficiency. Featuring multiple reaction modes, auto-release functionality, built-in cycle counter, and uniswivel hose, it's built for versatile, hands-free performance with enhanced traceability and ease of use.

Key Performance Specifications

• Torque Range: 205–1,359 ft-lbs (278–1,843 Nm)
• Accuracy: ±3%
• Drive Size: 3/4" square
• Max Operating Pressure: 10,000 PSI (700 bar)

Physical and Environmental Specifications

• Weight: 6.8 lbs (3.1 kg)
• Dimensions: Height 6.4 in (162 mm); Length 5.2 in (131 mm); Width 2.2 in (55 mm)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Key Features

• Multiple Reaction Modes: Supports side/coaxial reaction, rear reaction, or reaction-free bolting for maximum versatility in tight spaces
• Auto-Release Functionality: Built-in lock-on release with automatic pressure release for quick, safe tool disengagement without manual levers
• Built-In Cycle Counter: Tracks tool usage and productivity for maintenance scheduling and performance monitoring
• Multi-Direction Hose Swivel: 360° x 120° uniswivel for flexible hose positioning and reduced tripping hazards
• Aircraft-Grade Aluminum Construction: Durable housing rated for over 5,000 duty cycles with corrosion resistance
• Quick Couplers: Fast, secure connections for efficient setup and reduced downtime
• Angle of Rotation Control: Precise torque and angle combination for exact bolting results
• Compatible Accessories: Works with HYTORC sockets, reaction arms, washers, and nut drivers for hands-free options
• Low Vibration: Minimizes operator fatigue and hand-arm vibration syndrome (HAVS) risk
• Ergonomic Design: Lightweight uni-body with integrated safety features and spline cover for extended tool life
• Data Management: Pressure-to-torque conversion charts; integrable with digital gauges for precise control
• Applications: Ideal for flanges, pipelines, and heavy machinery; suitable for explosive environments with ATEX options
