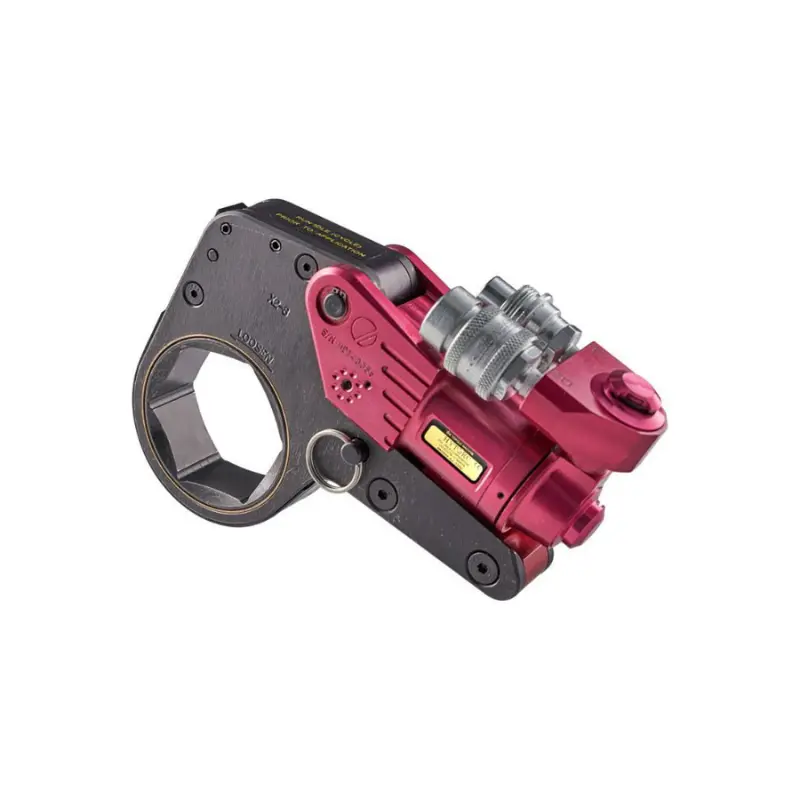

HY-8XLCT Power Head , 8151 Ft-Lbs

HYTORC HY-8XLCT is a low-clearance hydraulic torque wrench power head from the XLCT series, engineered for precise high-torque bolting in confined spaces within demanding industrial environments like construction, maintenance, and petrochemical operations. This interchangeable link model provides up to 8,151 ft-lbs of torque with ±3% accuracy, powered by a hydraulic pump system up to 10,000 PSI for reliable efficiency in tight-access applications. Featuring an extra low clearance through design, multi-direction hose swivel, and compatibility with various cartridges and HYTORC accessories, it's built for fast, versatile performance where standard tools can't reach.

Key Performance Specifications

• Torque Range: 1,143–8,151 ft-lbs (1,549–11,050 Nm)
• Accuracy: ±3%
• Nut Size: 50–100 mm (2"–3 7/8")
• Max Operating Pressure: 10,000 PSI (700 bar)

Physical and Environmental Specifications

• Weight: 7.3 lbs (3.3 kg)
• Dimensions: Length 12.3 in (312 mm); Height 6.7 in (170 mm); Width 3.2 in (82 mm)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Key Features

• Extra Low Clearance Through (XLCT) Design: Patented slim profile for access in the tightest spaces with minimal radial clearance
• Interchangeable Cartridges: Supports 6-point hex, 12-point hex, Allen, square drives, and open spanners for versatile applications
• Multi-Direction Hose Swivel: 360° x 180° uni-swivel for flexible hose positioning and easy setup in awkward angles
• High-Strength Aluminum Titanium Alloy Body: Lightweight, durable construction with high torque-to-weight ratio and corrosion resistance
• Rough Tooth Structure: Sturdy and durable gearing for reliable, repeatable torque delivery
• Compatible Accessories: Works with HYTORC pumps, reaction arms, washers, and nut drivers for hands-free, reaction-free bolting options
• Low Vibration: Minimizes operator fatigue and hand-arm vibration syndrome (HAVS) risk
• Ergonomic Design: Compact power head with quick connections and optional tool retainer for safe pressure release
• Data Management: Pressure-to-torque conversion charts for precise control; integrable with digital gauges
• Applications: Ideal for low-clearance bolting in pipelines, flanges, and confined spaces; suitable for explosive environments with ATEX options
