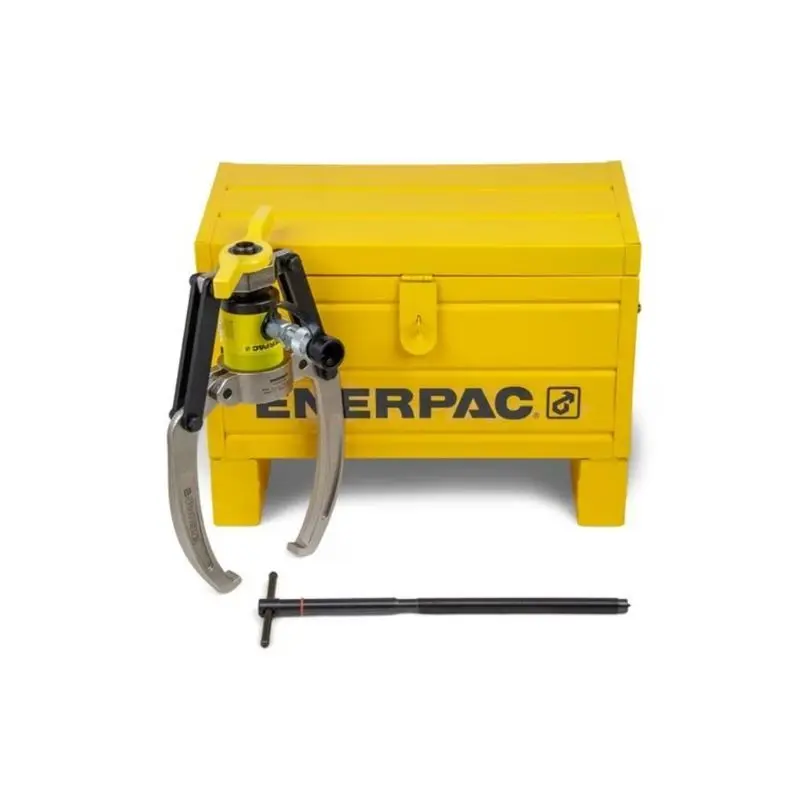

LGH214, 14 Ton, 2 Jaw, Hydraulic Lock-Grip Puller with RWH121 Hydraulic Cylinder

Enerpac LGH214 14 Ton 2 Jaw Hydraulic Lock-Grip Puller with RWH121 Hydraulic Cylinder is a robust, two-jaw hydraulic tool designed for safe and efficient removal of large shaft-mounted components like bearings, couplings, pulleys, and gears in industrial maintenance and assembly applications. Featuring a self-centering lock-grip system with synchronous jaw movement for single-operator mounting and use, lock-on jaws for secure grip, and the included RWH121 hollow plunger hydraulic cylinder for controlled pulling up to 14 tons, this puller requires an external hydraulic pump for operation at up to 10,150 psi. Ideal for versatile, high-force applications with a maximum spread of 380 mm and reach of 260 mm, ensuring damage-free extraction and including a point protector for shafts without center holes.

• Model Number: LGH214
• Product Type: Hydraulic Lock-Grip Puller (2-Jaw Configuration) with RWH121 Hydraulic Cylinder
• Color: Silver/Gray
• Material: Steel with hardened components
• Capacity: 14 Ton (Imperial Tons; 125 kN)
• Spread Range: 125 mm - 380 mm (4.92" - 14.96")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic operation)
• Power Pack: Includes RWH121 Hollow Plunger Hydraulic Cylinder; requires external hydraulic pump
• Control System: Hydraulic with self-centering lock-grip system and threaded spindle
• Weight (Net): 14 kg / 31 lbs
• Dimensions: Reach: 260 mm (10.24"), Maximum Spread: 380 mm (14.96")
• Overview: High-capacity two-jaw hydraulic puller with lock-grip for secure, single-operator engagement; ideal for precise, safe removal of large shaft-mounted parts in industrial environments with hydraulic power
• Key Features:
  • Self-centering closing system ensures both jaws move simultaneously for easy mounting and reduced operator effort
  • Lock-on jaws provide a secure grip to prevent slippage during high-force hydraulic pulling up to 700 bar (10,150 psi)
  • Includes one point protector for use on shafts without drilled center holes, enhancing versatility
  • Durable steel construction for heavy-duty reliability in industrial settings, with safety recommendations for goggles and gloves
  • Synchronous jaw movement allows entire pulling job to be performed by a single operator for increased efficiency
