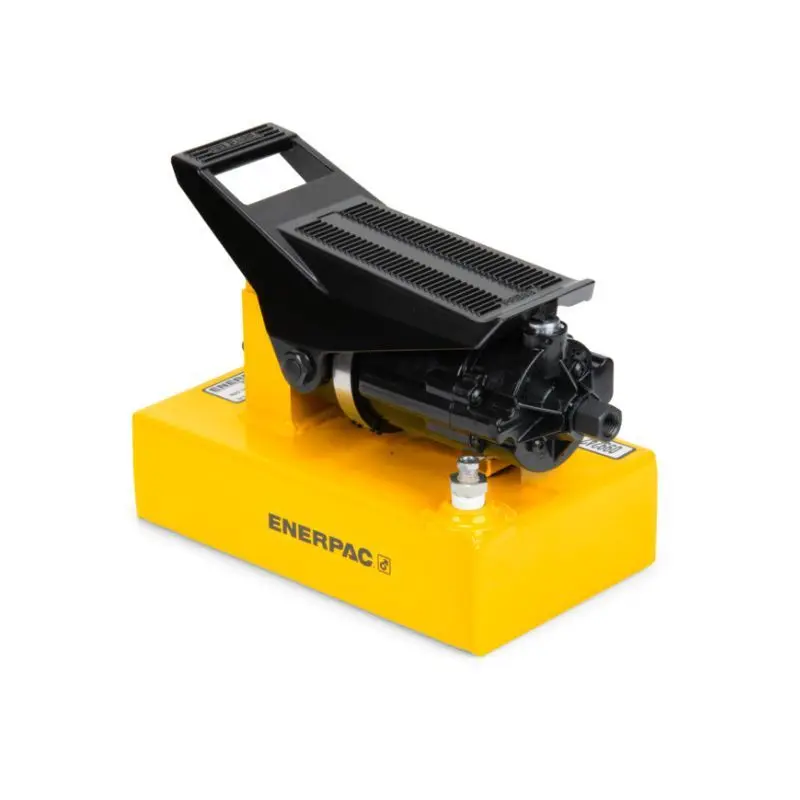

PA1150 Air Hydraulic Foot Pump, 1311 cm3 Usable Oil, 0,13 l/m Oil Flow at 700 bar

Enerpac PA1150 Air Hydraulic Foot Pump 1311 cm3 Usable Oil 0.13 l/min Oil Flow at 700 bar is a compact, foot-operated air-powered hydraulic pump designed for reliable, hands-free operation in industrial maintenance and assembly tasks requiring single-acting cylinder control. Featuring two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this lightweight pump includes a treadle valve operable by hand or foot for advance/hold/retract functions, 1311 cm³ (80 in³) usable oil reservoir, and operates on compressed air (60-100 psi) for portable, explosion-proof performance in hazardous environments, ensuring fast cycle times and consistent power delivery without electrical hazards.

• Model Number: PA1150
• Product Type: Air Hydraulic Foot Pump (Two-Speed, Treadle Valve)
• Color: Silver/Gray
• Material: Reinforced Reservoir with Cast Aluminum Air Motor and Hardened Components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure
• Oil Capacity: 1311 cm³ (80 in³) Usable
• Valve Type: 3-Way, 3-Position Treadle (Hand/Foot Operated: Advance/Hold/Retract)
• Flow Rate: 0.13 L/min (8 in³/min) at 700 bar (10,000 psi); 0.66 L/min (40 in³/min) No Load
• Air Consumption: 9 CFM (15 m³/h)
• Air Pressure Range: 60-100 psi (4.1-6.9 bar)
• Sound Level: 85 dBA
• Weight (Net): 8.4 kg / 18.5 lbs
• Dimensions: Length: 437 mm (17.2"), Width: 201 mm (7.9"), Height: 209 mm (8.2")
• Overview: Compact air hydraulic foot pump with two-speed operation for efficient single-acting cylinder use; ideal for remote or hazardous sites with air power, providing rapid cycles and Z-Class reliability for maintenance tasks
• Key Features:
  • Treadle valve operable by hand or foot for hands-free, ergonomic control in demanding environments
  • Air Saver Piston reduces air consumption and operating costs while enabling start-up at low pressures
  • Internal overload relief valve provides protection, preset for maximum pressure
  • Swivel connections for hydraulic (3/8" NPTF) and air (1/4" NPTF) inlets simplify setup and operation
  • Compatible with Enerpac RC-series single-acting cylinders and tools for versatile industrial applications
