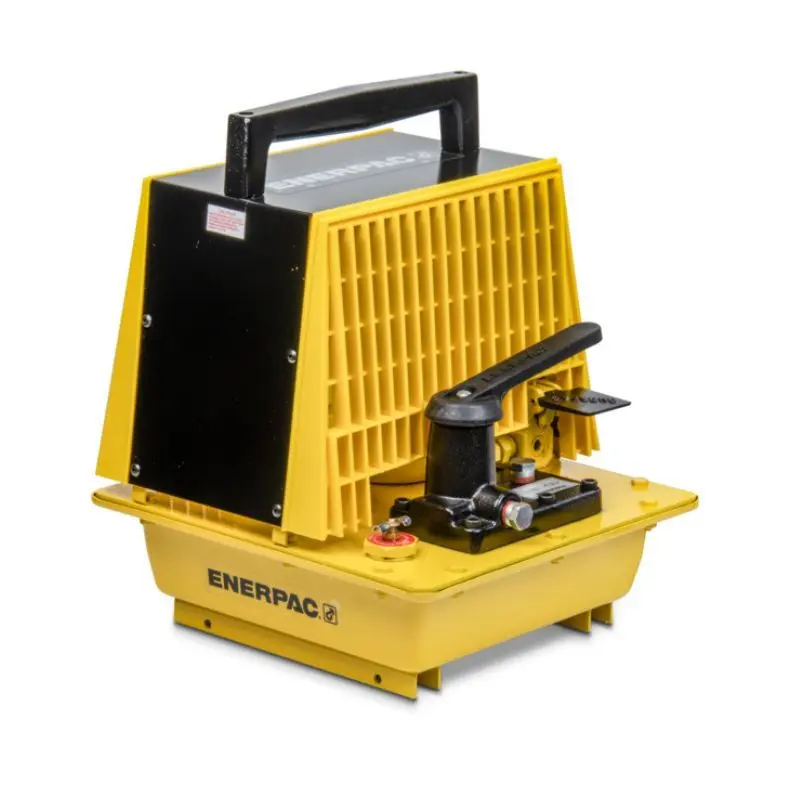

PAM1022 Air Hydraulic Pump, 3/2 Manual Valve, 7,6 litres Usable Oil, For use with Single-Acting Cylinders

Enerpac PAM1022 Air Hydraulic Pump, 3/2 Manual Valve, 7.6 Litres Usable Oil, For use with Single-Acting Cylinders is a high-efficiency, air-powered hydraulic pump designed for reliable operation in industrial maintenance and assembly tasks requiring single-acting cylinder control. Featuring two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this pump includes a 3-way 2-position manual valve for advance/hold functions, 7.6 L usable oil reservoir, and operates on compressed air (60-120 psi) for portable, explosion-proof performance in hazardous environments, ensuring fast cycle times and consistent power delivery without electrical hazards.

• Model Number: PAM1022
• Product Type: Air Hydraulic Pump (Two-Speed, 3/2 Manual Valve)
• Color: Silver/Gray
• Material: Reinforced heavy-duty lightweight reservoir with cast aluminum air motor and hardened components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure
• Oil Capacity: 7.6 L (2 gal / 462 in³) Usable
• Valve Type: 3-Way, 2-Position Manual (Advance/Hold)
• Flow Rate: 9 in³/min (0.15 L/min) at 10,000 psi; up to 60 in³/min (1.0 L/min) No Load
• Air Consumption: 18 SCFM at 100 psi
• Air Pressure Range: 60-120 psi
• Sound Level: 87 dBA
• Weight (Net): 27.2 kg / 60 lbs
• Dimensions: Height: 387 mm (15.25"), Length: 320 mm (12.63"), Width: 308 mm (12.13")
• Overview: High-flow air hydraulic pump with two-speed operation for efficient single-acting cylinder use; ideal for remote or hazardous sites with air power, providing rapid cycles and Z-Class reliability for maintenance tasks
• Key Features:
  • Twin air motor configuration delivers high-flow performance in first stage up to 200 psi for rapid cylinder advance
  • Manual valve with pendant for ergonomic, remote control in demanding environments
  • Large 7.6 L usable oil reservoir supports extended operation, with sight/level gauge for quick monitoring
  • Explosion-proof air drive suitable for hazardous locations, with low noise and vibration for extended use
  • Compatible with Enerpac RC-series single-acting cylinders and tools for versatile industrial applications
