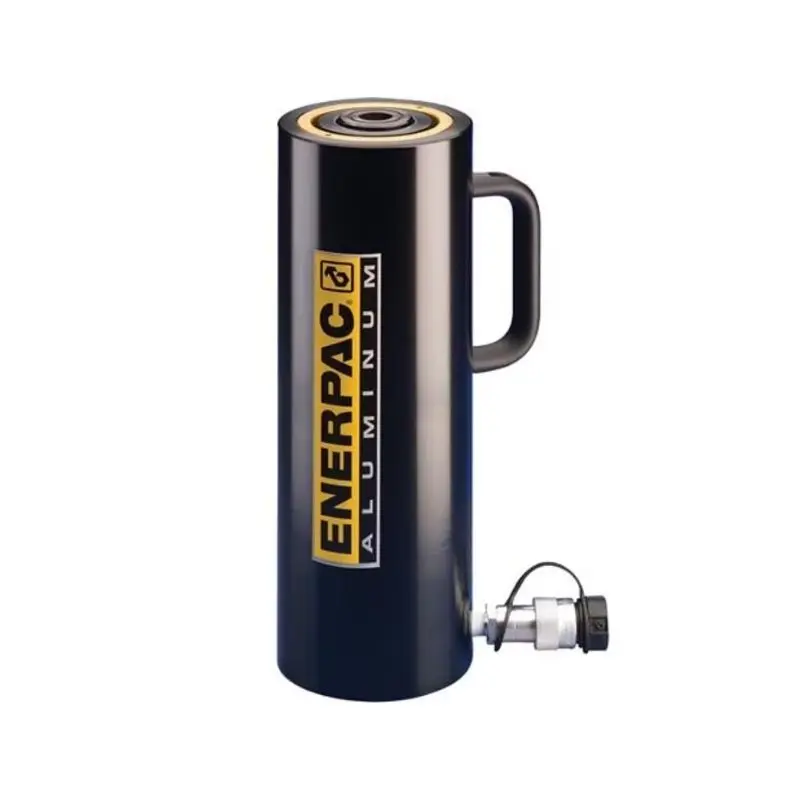

RAC1006 1002 kN Capacity, 150 mm Stroke, Aluminum Hydraulic Cylinder

Enerpac RAC1006 is a lightweight, single-acting aluminum hydraulic cylinder designed for versatile general-purpose applications, including lifting, pushing, and maintenance tasks in industrial and construction settings. With a 100-ton (1002 kN) capacity and 150 mm stroke, this compact model delivers reliable performance at up to 10,000 psi, featuring alloy steel construction, a grooved plunger for easy saddle attachment, and built-in safety relief valves for enhanced durability and user safety in everyday operations.

• Product Overview
  • Name: Enerpac RAC1006 Aluminum Hydraulic Cylinder
  • Type: Single-acting, spring-return solid plunger cylinder
  • Primary Applications: Industrial lifting, pushing, bolting, and maintenance tasks
  • Force Output: 100 tons (1002 kN)
  • Stroke: 150 mm (5.91 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 357 mm (14.06 in)
• Technical Specifications
  • Capacity: 100 tons (1002 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 150 mm (5.91 in)
  • Collapsed Height (A): 357 mm (14.06 in)
  • Extended Height (B): 507 mm (19.96 in)
  • Outside Diameter (D): 178 mm (7.01 in)
  • Bore Diameter (E): 130 mm (5.12 in)
  • Plunger Diameter (F): 95 mm (3.74 in)
  • Effective Area (Advance): 143 cm² (22.16 in²)
  • Oil Capacity (Advance): 2,147 cm³ (131.00 in³)
  • Weight: 26.8 kg (59 lbs)
  • Series: RAC Series Aluminum Cylinders
• Key Features
  • Single-acting design with spring return for efficient and controlled operation
  • Lightweight aluminum construction for superior portability and ease of handling
  • Alloy steel plunger for maximum strength and longevity
  • Grooved plunger allows for easy mounting of tilt saddles without additional hardware
  • Built-in relief valves prevent over-pressurization for enhanced safety
  • Hard anodized finish provides corrosion resistance in harsh conditions
  • Chrome-plated plunger ensures smooth action and reduced wear
  • Includes CR-400 coupler and dust cap for immediate compatibility and protection
  • Plunger wiper minimizes contamination to extend service life
