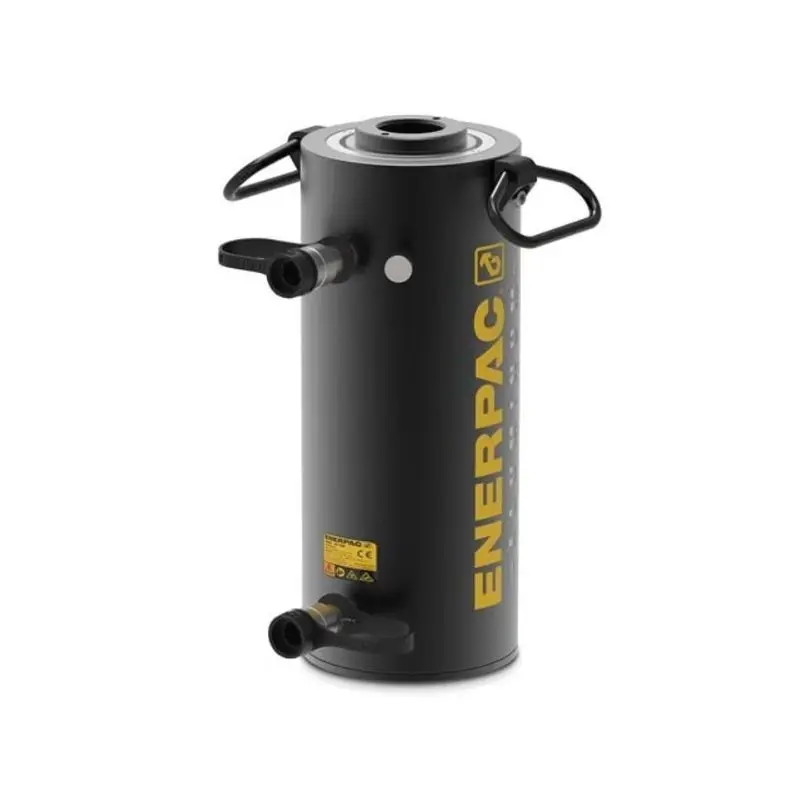

RARH1502 1489 kN Capacity, 50 mm Stroke, Double-Acting, Aluminum Hollow Plunger Hydraulic Cylinder

Enerpac RARH1502 is a lightweight, double-acting aluminum hollow plunger hydraulic cylinder optimized for tensioning, pulling, and pushing in confined spaces, offering superior efficiency over traditional steel models. With a 167.2-ton (1489 kN) advance capacity and 50 mm stroke, it provides rapid hydraulic retraction regardless of hose length, operating at up to 10,150 psi with an integral stop ring for safety, composite bearings for side-load resistance, and a hard coat finish for extended durability in harsh industrial environments.

• Product Overview
  • Name: Enerpac RARH1502 Double-Acting Aluminum Hollow Plunger Hydraulic Cylinder
  • Type: Double-acting, hydraulic return hollow plunger cylinder
  • Primary Applications: Tensioning, pulling, pushing, and maintenance in industrial and construction setups
  • Force Output: 167.2 tons (1489 kN) advance capacity; 84 tons (748 kN) retract capacity
  • Stroke: 50 mm (1.97 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 264 mm (10.39 in)
• Technical Specifications
  • Capacity (Advance): 167.2 tons (1489 kN)
  • Capacity (Retract): 84 tons (748 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 50 mm (1.97 in)
  • Collapsed Height (A): 264 mm (10.39 in)
  • Extended Height (B): 314 mm (12.36 in)
  • Outside Diameter (D): 280 mm (11.02 in)
  • Bore Diameter (E): 190 mm (7.48 in)
  • Plunger Diameter (F): 150 mm (5.91 in)
  • Effective Area (Advance): 212.6 cm² (32.96 in²)
  • Effective Area (Retract): 106.9 cm² (16.56 in²)
  • Oil Capacity (Advance): 1,063 cm³ (64.86 in³)
  • Oil Capacity (Retract): 534 cm³ (32.58 in³)
  • Weight: 42.6 kg (94 lbs)
  • Center Hole Diameter (Y): 79 mm (3.11 in)
  • Series: RARH Series Aluminum Hollow Plunger Cylinders
• Key Features
  • Lighter and shorter collapsed height than equivalent RACH models for improved usability in tight spaces
  • Double-acting for rapid retraction, regardless of hose lengths or system losses
  • Built-in safety valve prevents accidental over-pressurization
  • Hollow plunger design allows for both pull and push forces
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Floating center tube increases seal life
  • Steel base plate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and withstands full cylinder capacity
  • Composite bearings increase cylinder life and side-load resistance
  • Includes CR-400 coupler and dust cap
