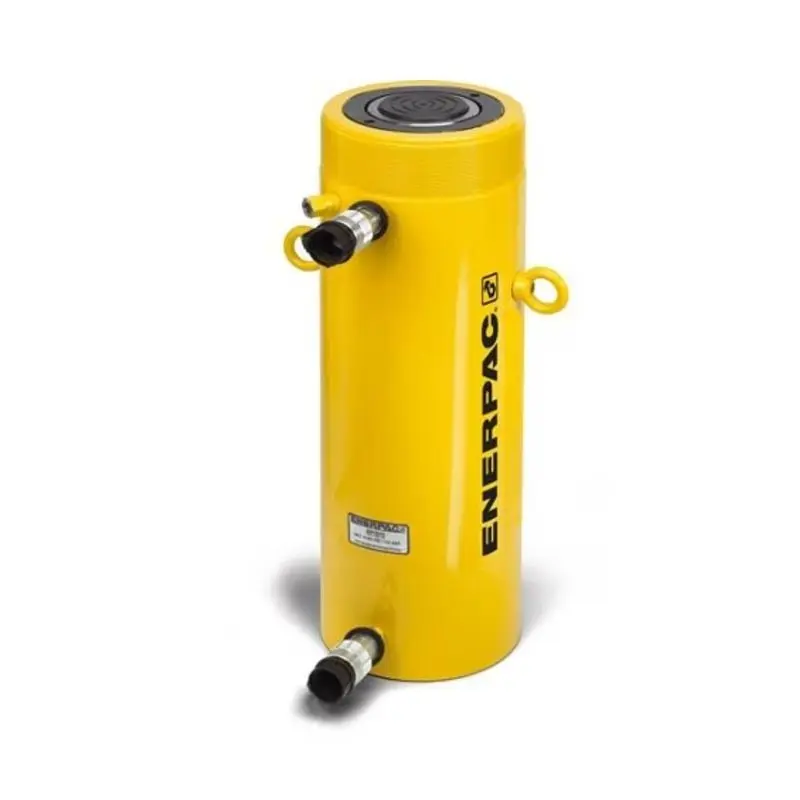

RR10013 933 kN Capacity, 333 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder

Enerpac RR10013 is a versatile double-acting general-purpose hydraulic cylinder designed for pushing and pulling applications in industrial maintenance, construction, and heavy-duty tasks. With a 103.2-ton (933 kN) advance capacity and 333 mm stroke, this solid-plunger model provides maximum power and control, operating at up to 10,000 psi with built-in safety features like relief valves and a corrosion-resistant baked enamel finish for enhanced durability and reliability in demanding environments.

• Product Overview
  • Name: Enerpac RR10013 Double-Acting General Purpose Hydraulic Cylinder
  • Type: Double-acting, solid plunger cylinder
  • Primary Applications: Pushing, pulling, lifting, and pressing in versatile industrial setups
  • Force Output: 103.2 tons (933 kN) advance capacity; 48.9 tons (435 kN) retract capacity
  • Stroke: 333 mm (13.11 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 524 mm (20.63 in)
• Technical Specifications
  • Capacity (Advance): 103.2 tons (933 kN)
  • Capacity (Retract): 48.9 tons (435 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 333 mm (13.11 in)
  • Collapsed Height (A): 524 mm (20.63 in)
  • Extended Height (B): 857 mm (33.75 in)
  • Outside Diameter (D): 177 mm (7 in)
  • Bore Diameter (E): 130 mm (5.13 in)
  • Plunger Diameter (F): 95 mm (3.75 in)
  • Effective Area (Advance): 133 cm² (20.63 in²)
  • Effective Area (Retract): 62 cm² (9.6 in²)
  • Oil Capacity (Advance): 4,439 cm³ (270.88 in³)
  • Oil Capacity (Retract): 2,071 cm³ (126.35 in³)
  • Weight: 93 kg (205 lbs)
  • Base to Advance Port (H): 38 mm (1.5 in)
  • Top to Retract Port (I): 71 mm (2.8 in)
  • Saddle Diameter (J): 95 mm (3.75 in)
  • Saddle Protrusion from Plunger (K): 3 mm (0.12 in)
  • Plunger Internal Thread (O): 1 1/4"-12
  • Plunger Thread Length (P): 32 mm (1.26 in)
  • Collar Thread (W): 6 7/8"-12
  • Collar Thread Length (X): 32 mm (1.26 in)
  • Series: RR Series Double-Acting Cylinders
• Key Features
  • Double-acting operation for maximum power and controlled retraction
  • Collar threads, plunger threads, and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over-pressurization
  • Plunger wiper reduces contamination, extending cylinder life
  • Includes CR-400 couplers and dust caps
