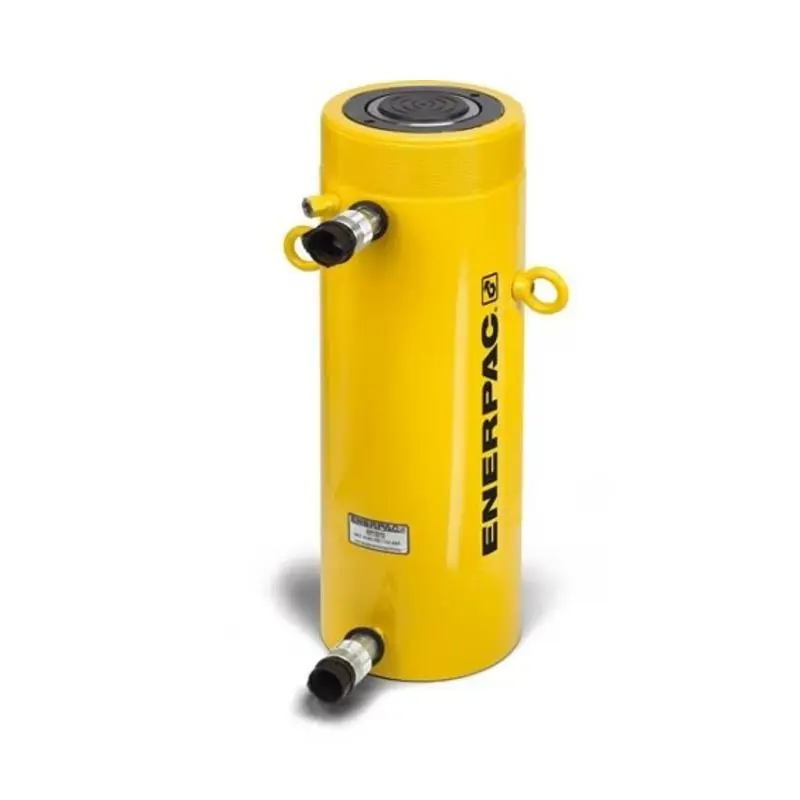

RR1506 1386 kN Capacity, 156 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder

Enerpac RR1506 is a versatile double-acting general-purpose hydraulic cylinder designed for pushing and pulling applications in industrial maintenance, construction, and heavy-duty tasks. With a 153.5-ton (1386 kN) advance capacity and 156 mm stroke, this solid-plunger model provides maximum power and control, operating at up to 10,000 psi with built-in safety features like relief valves and a corrosion-resistant baked enamel finish for enhanced durability and reliability in demanding environments.

• Product Overview
  • Name: Enerpac RR1506 Double-Acting General Purpose Hydraulic Cylinder
  • Type: Double-acting, solid plunger cylinder
  • Primary Applications: Pushing, pulling, lifting, and pressing in versatile industrial setups
  • Force Output: 153.5 tons (1386 kN) advance capacity; 74 tons (659 kN) retract capacity
  • Stroke: 156 mm (6.13 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 386 mm (15.19 in)
• Technical Specifications
  • Capacity (Advance): 153.5 tons (1386 kN)
  • Capacity (Retract): 74 tons (659 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 156 mm (6.13 in)
  • Collapsed Height (A): 386 mm (15.19 in)
  • Extended Height (B): 541 mm (21.31 in)
  • Outside Diameter (D): 203 mm (8.00 in)
  • Bore Diameter (E): 159 mm (6.25 in)
  • Plunger Diameter (F): 114 mm (4.50 in)
  • Effective Area (Advance): 198.2 cm² (30.71 in²)
  • Effective Area (Retract): 95.5 cm² (14.80 in²)
  • Oil Capacity (Advance): 3,085 cm³ (188.28 in³)
  • Oil Capacity (Retract): 1,491 cm³ (91.00 in³)
  • Weight: 93 kg (205 lbs)
  • Base to Advance Port (H): 49 mm (1.94 in)
  • Saddle Diameter (J): 114 mm (4.50 in)
  • Saddle Protrusion from Plunger (K): 19 mm (0.75 in)
  • Series: RR Series Double-Acting Cylinders
• Key Features
  • Double-acting operation for maximum power and controlled retraction
  • Collar threads, plunger threads, and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over-pressurization
  • Plunger wiper reduces contamination, extending cylinder life
  • Includes CR-400 couplers and dust caps
