RSM100 101 kN Capacity, 11 mm Stroke, Low Height Hydraulic Cylinder

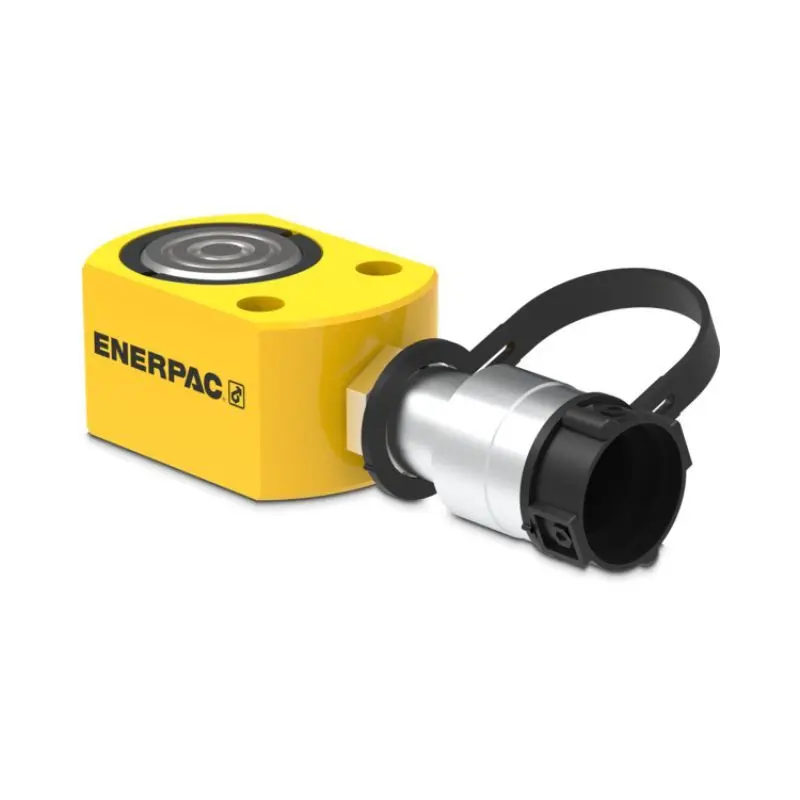

Enerpac RSM100 is a compact, low-profile hydraulic cylinder engineered for high-force applications in extremely confined spaces, such as under heavy machinery or in production environments where clearance is minimal. Delivering an 11.2-ton (101 kN) capacity over an 11 mm stroke, this single-acting, spring-return model operates reliably at up to 10,000 psi, featuring a flat design with integrated mounting holes and a powerful return spring for enhanced efficiency and safety in industrial lifting and pushing tasks.

• Product Overview
  • Name: Enerpac RSM100 Low Height Hydraulic Cylinder
  • Type: Single-acting, spring-return low-height hydraulic cylinder
  • Primary Applications: Lifting and pushing in tight spaces, such as under machinery or in production setups
  • Force Output: 11.2 tons (101 kN)
  • Stroke: 11 mm (0.44 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 43 mm (1.69 in)
• Technical Specifications
  • Capacity: 11.2 tons (101 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 11 mm (0.44 in)
  • Collapsed Height (A): 43 mm (1.69 in)
  • Extended Height (B): 54 mm (2.13 in)
  • Outside Dimensions (D): 82 x 55 mm (3.25 x 2.19 in)
  • Bore Diameter (E): 43 mm (1.69 in)
  • Plunger Diameter (F): 38 mm (1.50 in)
  • Effective Area: 14.5 cm² (2.24 in²)
  • Oil Capacity (Advance): 16 cm³ (0.98 in³)
  • Weight: 1.4 kg (3.1 lbs)
  • Base to Advance Port (H): 19 mm (0.75 in)
  • Series: RSM Series Low Height Cylinders
• Key Features
  • Low-profile, flat design for access to confined areas where other cylinders cannot fit
  • Integrated mounting holes for secure fixturing
  • Grooved plunger ends eliminate the need for a saddle
  • Corrosion-resistant baked enamel finish
  • Chrome-plated plunger for durability and smooth operation
  • Powerful return spring for faster retraction
  • Includes CR-400 coupler and dust cap
  • Integral bleed valve for air removal and precise control
