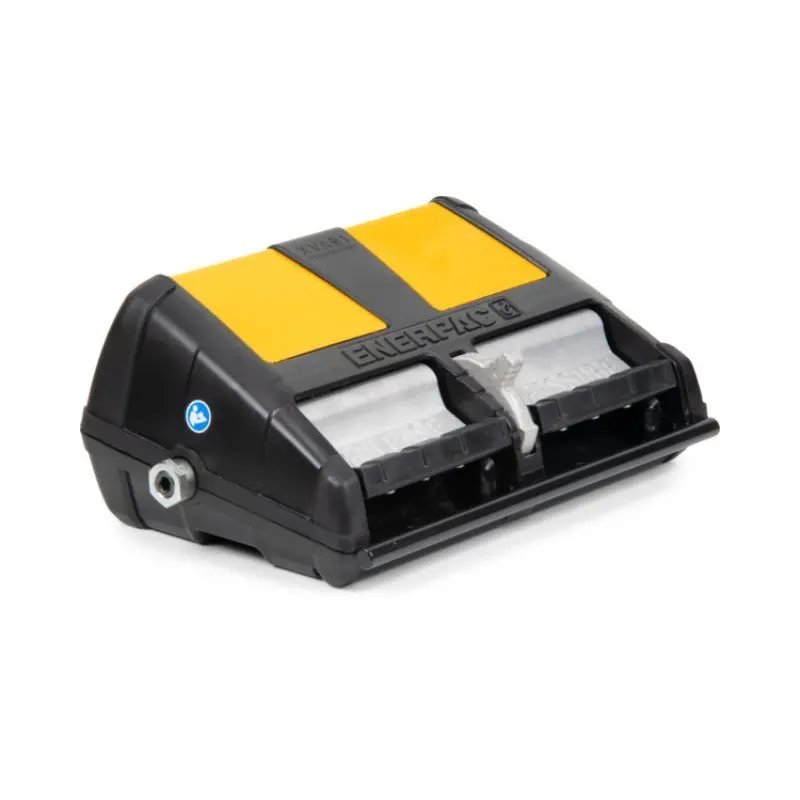

XA12G, Air Driven Hydraulic Foot Pump, 3/3 Valve, 2,0 litres Usable Oil, Integrated Pressure Gauge, For use with Single-Acting Cylinder or Tool

Enerpac XA12G Air Driven Hydraulic Foot Pump 3/3 Valve 2.0 Litres Usable Oil Integrated Pressure Gauge For use with Single-Acting Cylinder or Tool is a high-efficiency, air-powered hydraulic pump designed for reliable, foot-actuated operation in industrial maintenance and assembly tasks requiring single-acting cylinder control. Featuring Z-Class two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this pump includes a 3-way 3-position manual valve with advance/hold/retract functions, 2.0 L usable oil reservoir, integrated pressure gauge for real-time monitoring, and operates on compressed air (30-125 psi) for portable, explosion-proof performance in hazardous environments, ensuring fast cycle times and consistent power delivery without electrical hazards.

• Model Number: XA12G
• Product Type: Air Driven Hydraulic Foot Pump (Two-Speed, 3/3 Manual Valve)
• Color: Silver/Gray
• Material: Steel Reservoir with Aluminum Housing and Hardened Components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure
• Oil Capacity: 2.0 L (122 in³) Usable
• Valve Type: 3-Way, 3-Position Manual (Advance/Hold/Retract)
• Flow Rate: 120 in³/min (2.0 L/min) No Load; 15 in³/min (0.25 L/min) at 10,000 psi
• Air Consumption: 10-35 SCFM
• Air Pressure Range: 30-125 psi
• Sound Level: 94-97 dBa
• Weight (Net): 11.4 kg / 25.1 lbs
• Dimensions: Length: 508 mm (20"), Width: 508 mm (20"), Height: 203 mm (8")
• Overview: High-flow air hydraulic foot pump with two-speed operation for efficient single-acting cylinder use; ideal for remote or hazardous sites with air power, providing rapid cycles and Z-Class reliability for maintenance tasks
• Key Features:
  • Foot-actuated design reduces operator fatigue with ergonomic control for precise valve operation in demanding environments
  • Integrated pressure gauge allows real-time monitoring up to 10,000 psi for safe, accurate force application
  • Two-speed pump delivers high initial flow for quick advance, transitioning to sustained power for efficient productivity
  • Explosion-proof air drive suitable for hazardous locations, with low noise and vibration for extended use
  • Compatible with Enerpac RC-series single-acting cylinders and tools for versatile industrial applications
